主要特征
应用

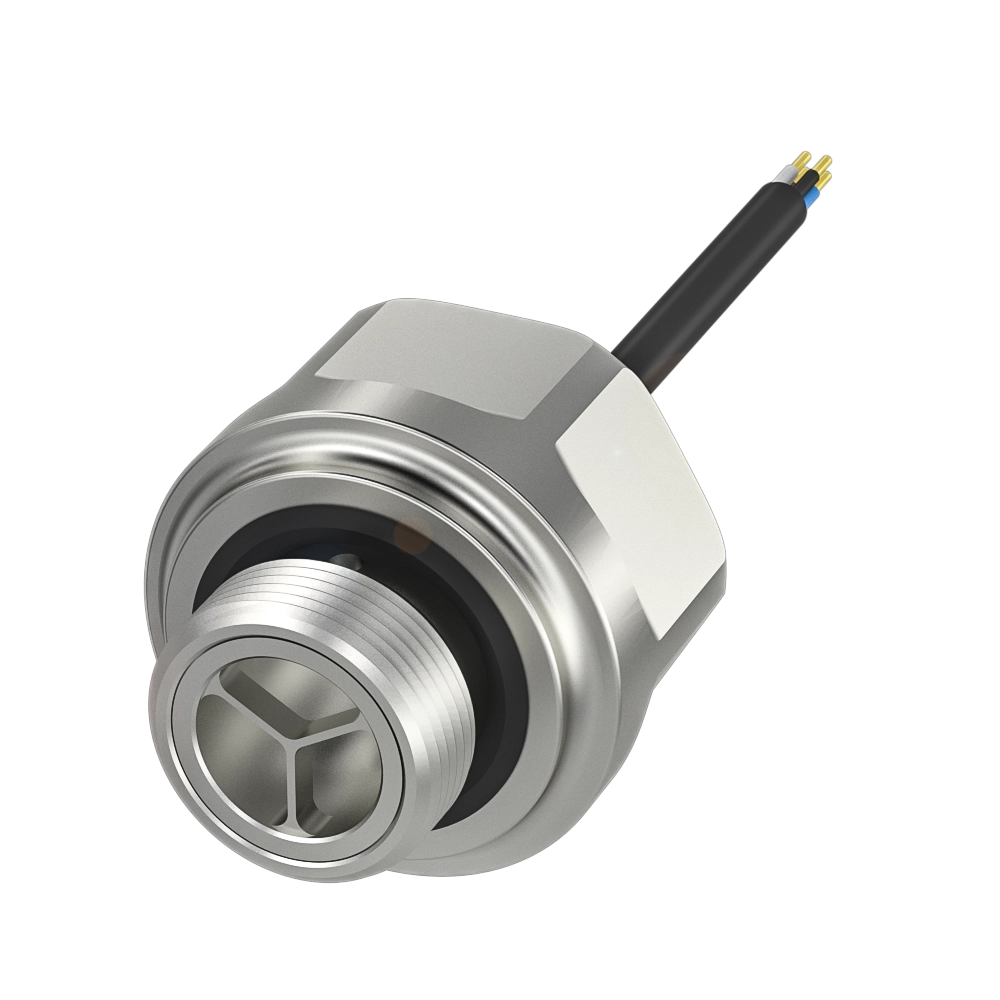

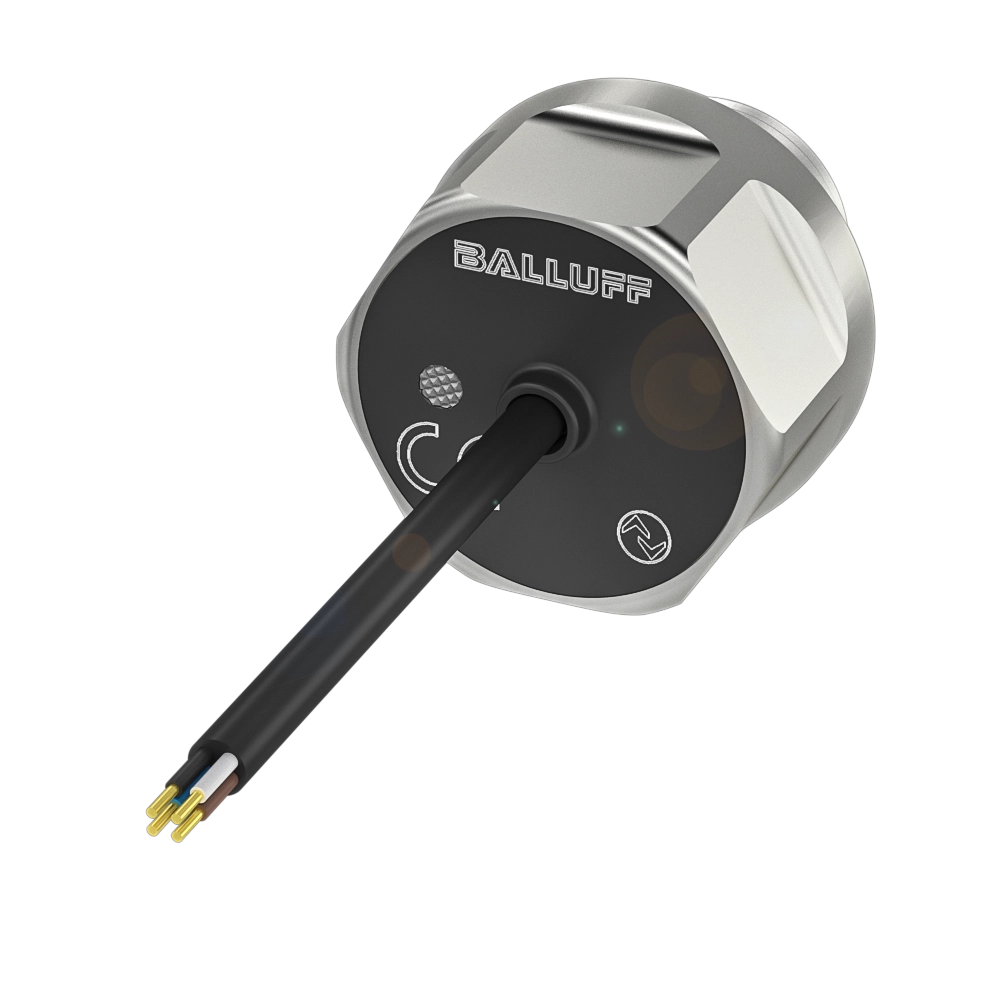

Position monitoring in short stroke hydraulic cylinders
测量范围
0...80 mm
线性偏差，最大
±250 µm
重复精度
± 50 µm
最大抗压强度
350 bar
接口
IO-Link 1.1
模拟，电压/模拟，可转换电流 4~20 mA/0~10 V
Pin 4: Push-pull 常开触点/常闭触点(NO/NC)
Pin 2: PNP/NPN/push-pull 常开触点/常闭触点(NO/NC)
模拟，电压/模拟，可转换电流 4~20 mA/0~10 V
Pin 4: Push-pull 常开触点/常闭触点(NO/NC)
Pin 2: PNP/NPN/push-pull 常开触点/常闭触点(NO/NC)
工作电压Ub
10~30 VDC
接口
电缆, 2.0 m, TPU
环境温度
0...85 °C
防护等级
IP67
许可/一致性
CE
UKCA
cULus
WEEE
UKCA
cULus
WEEE
Secondary features for condition monitoring
Internal temperature monitoring
Secondary features
Identification
Device Discovery
Switching Profiles
Signal Quality Monitoring
Signal Delay
Switching Counter
Basic Statistics
Logic Blocks
Operating Hours Counter
Boot Cycle Counter
Voltage and Current Monitoring
Variant Configuration
Pin Assignment
Device Discovery
Switching Profiles
Signal Quality Monitoring
Signal Delay
Switching Counter
Basic Statistics
Logic Blocks
Operating Hours Counter
Boot Cycle Counter
Voltage and Current Monitoring
Variant Configuration
Pin Assignment
分类
ECLASS 10.1
27-27-28-03
ECLASS 11.0
27-27-28-03
ECLASS 12.0
27-27-28-06
ECLASS 13.0
27-27-28-06
ECLASS 14.0
27-27-28-06
ECLASS 5.1.4
27-27-28-03
ECLASS 6.2
27-27-28-03
ETIM 4.0
EC001846
ETIM 5.0
EC001846
ETIM 6.0
EC001846
ETIM 7.0
EC001846
ETIM 8.0
EC001846
UNSPSC 11
41111916
UNSPSC 7.0901
41111916
eCl@ss 4.1
27-27-08-04
eCl@ss 8.1
27-27-28-03
eCl@ss 9.0
27-27-28-03
eCl@ss 9.1
27-27-28-03
