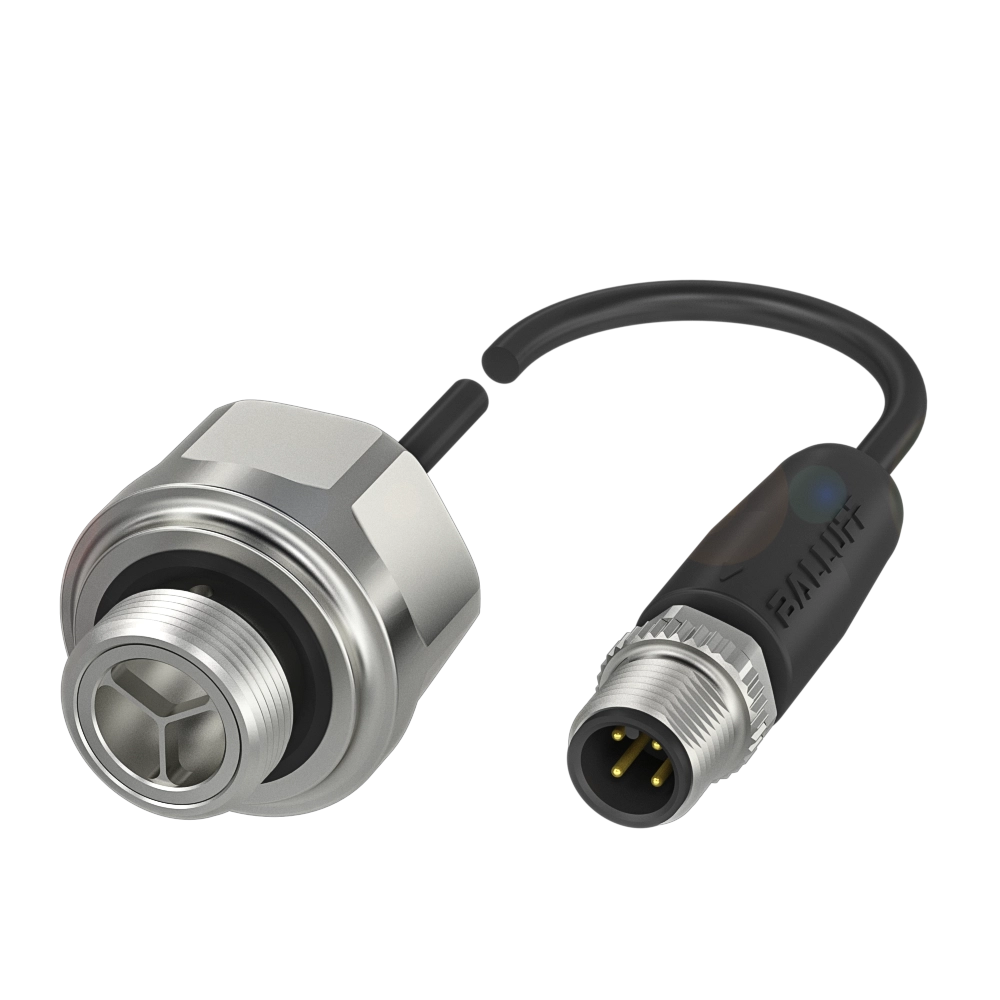

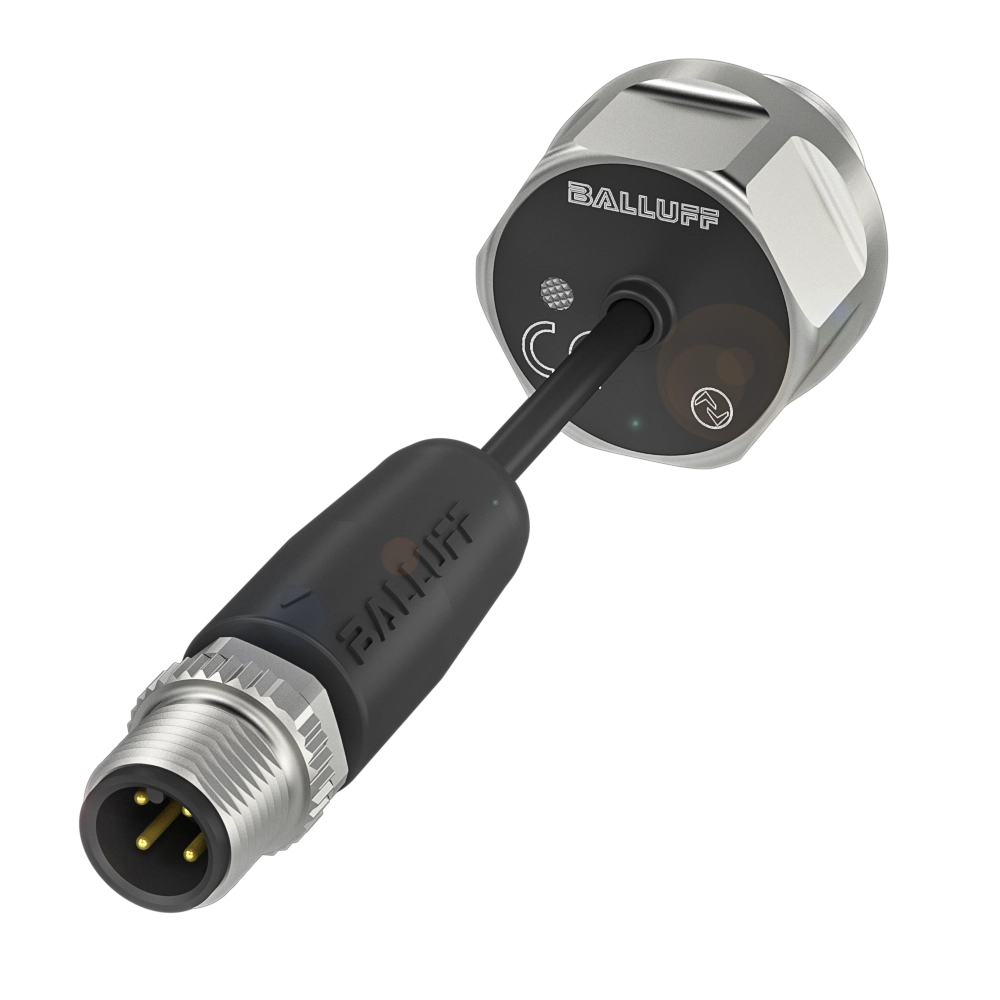

参考图片
仅支持 CAD 模型下载
用于短行程液压缸
应用
Position monitoring in short stroke hydraulic cylinders
测量范围
0...80 mm
线性偏差，最大
±250 µm
重复精度
± 50 µm
最大抗压强度
350 bar
您对产品有任何疑问吗？
联系我们.
本产品页面包含中国信息 – Balluff Automation (Shanghai) Co., Ltd
替代产品
|
|
另类
|
其他备选方案
|
|
|
|
|
|
|
| BFD 3SAP-19N000-U01-LA2-C30S04 | BFD 3SAP-19N000-U01-LA2-CA1S04 | BFD 3SAP-19N000-U01-LA2-C30S75 | |
|
3,636.40 CNY
挂牌价
|
3,680.80 CNY
挂牌价
|
3,636.40 CNY
挂牌价
|
|
| 应用 | Position monitoring in short stroke hydraulic cylinders | Position monitoring in short stroke hydraulic cylinders | Position monitoring in short stroke hydraulic cylinders |
|---|---|---|---|
| 测量范围 | 0...80 mm | 0...80 mm | 0...80 mm |
| 线性偏差，最大 | ±250 µm | ±250 µm | ±250 µm |
| 重复精度 | ± 50 µm | ± 50 µm | ± 50 µm |
| 最大抗压强度 | 350 bar | 350 bar | 350 bar |
| 接口 |
IO-Link 1.1 模拟，电压/模拟，可转换电流 4~20 mA/0~10 V Pin 4: Push-pull 常开触点/常闭触点(NO/NC) Pin 2: PNP/NPN/push-pull 常开触点/常闭触点(NO/NC) |
IO-Link 1.1 模拟，电压/模拟，可转换电流 4~20 mA/0~10 V Pin 4: Push-pull 常开触点/常闭触点(NO/NC) Pin 2: PNP/NPN/push-pull 常开触点/常闭触点(NO/NC) |
IO-Link 1.1 模拟，电压/模拟，可转换电流 4~20 mA/0~10 V Pin 4: Push-pull 常开触点/常闭触点(NO/NC) Pin 2: PNP/NPN/push-pull 常开触点/常闭触点(NO/NC) |
| 工作电压Ub | 10~30 VDC | 10~30 VDC | 10~30 VDC |
| 接口 | 电缆及插接器, M12x1-插头, 4-针, 0.3 m, TPU | 电缆及插接器, M12x1-插头, 4-针, 1.0 m, TPU | 电缆及插接器, M8x1-插头, 4-针, 0.3 m, TPU |
| 环境温度 | 0...85 °C | 0...85 °C | 0...85 °C |
| 防护等级 | IP67 | IP67 | IP67 |
| 许可/一致性 |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
| Secondary features for condition monitoring | Internal temperature monitoring | Internal temperature monitoring | Internal temperature monitoring |
| Secondary features |
Identification Device Discovery Switching Profiles Signal Quality Monitoring Signal Delay Switching Counter Basic Statistics Logic Blocks Operating Hours Counter Boot Cycle Counter Voltage and Current Monitoring Variant Configuration Pin Assignment |
Identification Device Discovery Switching Profiles Signal Quality Monitoring Signal Delay Switching Counter Basic Statistics Logic Blocks Operating Hours Counter Boot Cycle Counter Voltage and Current Monitoring Variant Configuration Pin Assignment |
Identification Device Discovery Switching Profiles Signal Quality Monitoring Signal Delay Switching Counter Basic Statistics Logic Blocks Operating Hours Counter Boot Cycle Counter Voltage and Current Monitoring Variant Configuration Pin Assignment |
