Reliable positioning of pallets and adapter plates
BES inductive sensors

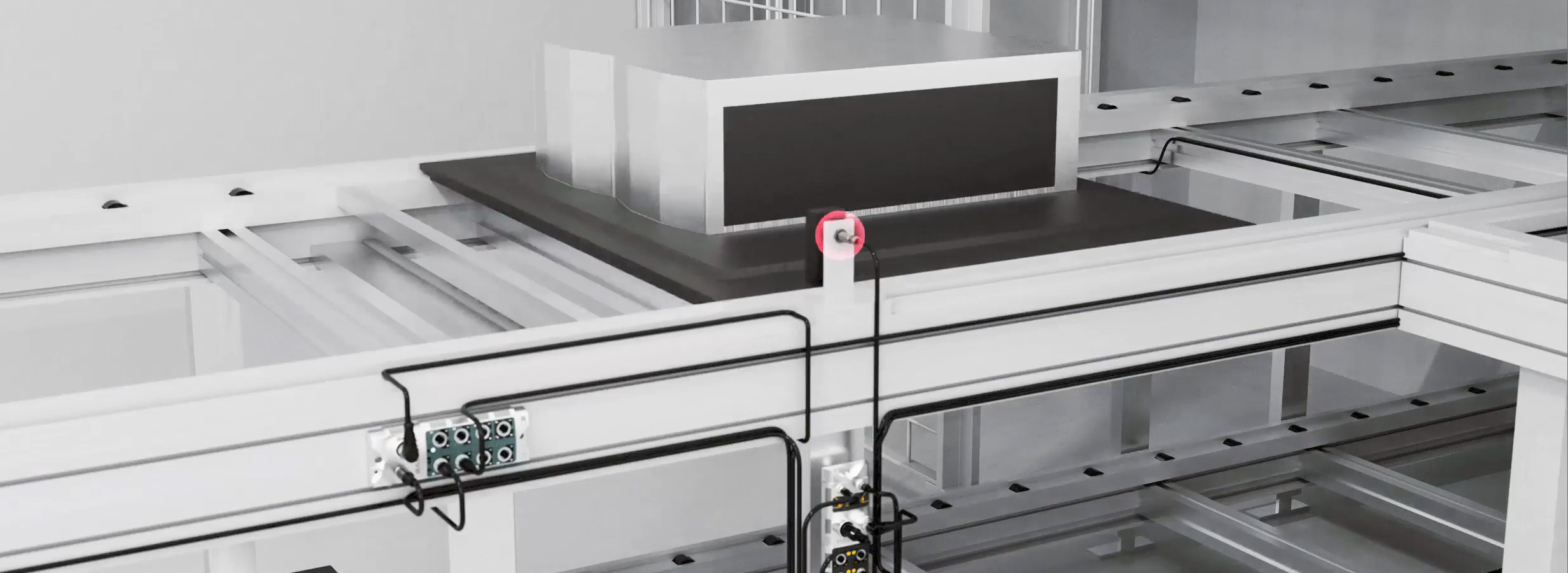

When assembling battery modules and packs, the exact positioning of pallets and adapter plates is crucial for error-free assembly. Different inductive sensors are used depending on the application. Our inductive Factor 1 sensor family offers you a reliable and economical solution for your metal detection applications. These sensors are capable of detecting all metals - including steel, aluminum or brass - with the same switching distance and without a reduction factor.
Features
- Factor 1 detects different metals without reducing the switching distance
- Reliable function even in environments with strong magnetic field interference
- Flexible installation--the rotatable active surface enables simple and flexible mounting
- Clearly visible operating and function display, facilitates commissioning and operation of the sensors
Recommended products for reliable object detection
Inductive Factor 1 sensors in square design
Inductive proximity switches in cylindrical design
Inductive proximity switches with PVC connection
Inductive Factor 1 sensors in square design
- Dimension
- 40 x 40 x 62 mm
- Style Housing
- 40x40
- Installation
- for flush mounting
- Range
- 20 mm
- Switching output
- PNP normally open/normally closed (NO/NC)
- Switching frequency
- 400 Hz
- Housing material
- PBT
- Material sensing surface
- PBT
- Connection
- Connector, M12x1-Male, 4-pin
- Operating voltage Ub
- 10...30 VDC
- Ambient temperature
- -25...70 °C
- Magnetic field immune
- magnetic field immune (AC/DC)
- IP rating
- IP67
- Approval/Conformity
-
CE
UKCA
cULus
WEEE - Additional features
- Factor 1
Inductive proximity switches in cylindrical design
- Dimension
- Ø 12 x 45 mm
- Style Housing
- M12x1
- Installation
- for flush mounting
- Range
- 4 mm
- Switching output
- PNP normally open (NO)
- Switching frequency
- 2500 Hz
- Housing material
- Brass, Nickel-free coated
- Material sensing surface
- PBT
- Connection
- Connector, M12x1-Male, 4-pin
- Operating voltage Ub
- 10...30 VDC
- Ambient temperature
- -25...70 °C
- IP rating
- IP68
- Approval/Conformity
-
CE
UKCA
cULus
WEEE
Inductive proximity switches with PVC connection
- Dimension
- Ø 12 x 48 mm
- Style Housing
- M12x1
- Installation
- non-flush
- Range
- 8 mm
- Switching output
- PNP normally open (NO)
- Switching frequency
- 1000 Hz
- Housing material
- Brass, Nickel-free coated
- Material sensing surface
- PBT
- Connection
- Cable, 2.00 m, PVC
- Operating voltage Ub
- 10...30 VDC
- Ambient temperature
- -25...70 °C
- IP rating
- IP68
- Approval/Conformity
-
CE
UKCA
cULus
WEEE
