替代产品
|
|
另类
|
|
|
|
|
|
BNI IOL-314-S52-P071
3,343.95 CNY
挂牌价
|
BNI IOL-314-S52-P012
3,153.30 CNY
挂牌价
|
|
| 接口 | IO-Link 1.1 | IO-Link 1.1 |
|---|---|---|
| 工作电压Ub | 18~30.2 VDC | 18~30.2 VDC |
| 接口 (COM 1) | M12x1-插头, 4-针, A-编码 | M12x1-插头, 4-针, A-编码 |
| 接口 (电源输入) | M12x1-插头, 5-针, L-编码 | - |
| 接口插槽 | 8x M12x1-母头, 5-针, A-编码 | 8x M12x1-母头, 5-针, A-编码 |
| 数字输入端 | 16x PNP/NPN, Type 1, Type 3 | 16x PNP/NPN, Type 1, Type 3 |
| 数字输出端 | 16x PNP | 16x PNP |
| 可配置输入/输出端 | 是 | 是 |
| 扩展端口 | 是 | 是 |
| 通道独立监控 | 是 | 是 |
| 辅助功能 |
振动 Internal temperature 设备发现 |
振动 Internal temperature 设备发现 |
| 总电流US，传感器 | 2 A | 2 A |
| 开关电流 |
12x 2 A 4x 4 A |
16x 2 A |
| 总电流UA，执行器 | 16 A | 4 A |
| 外壳材料 |
PBT, GF30 不锈钢 (1.4404), Inserts |
PBT, GF30 不锈钢 (1.4404), Inserts |

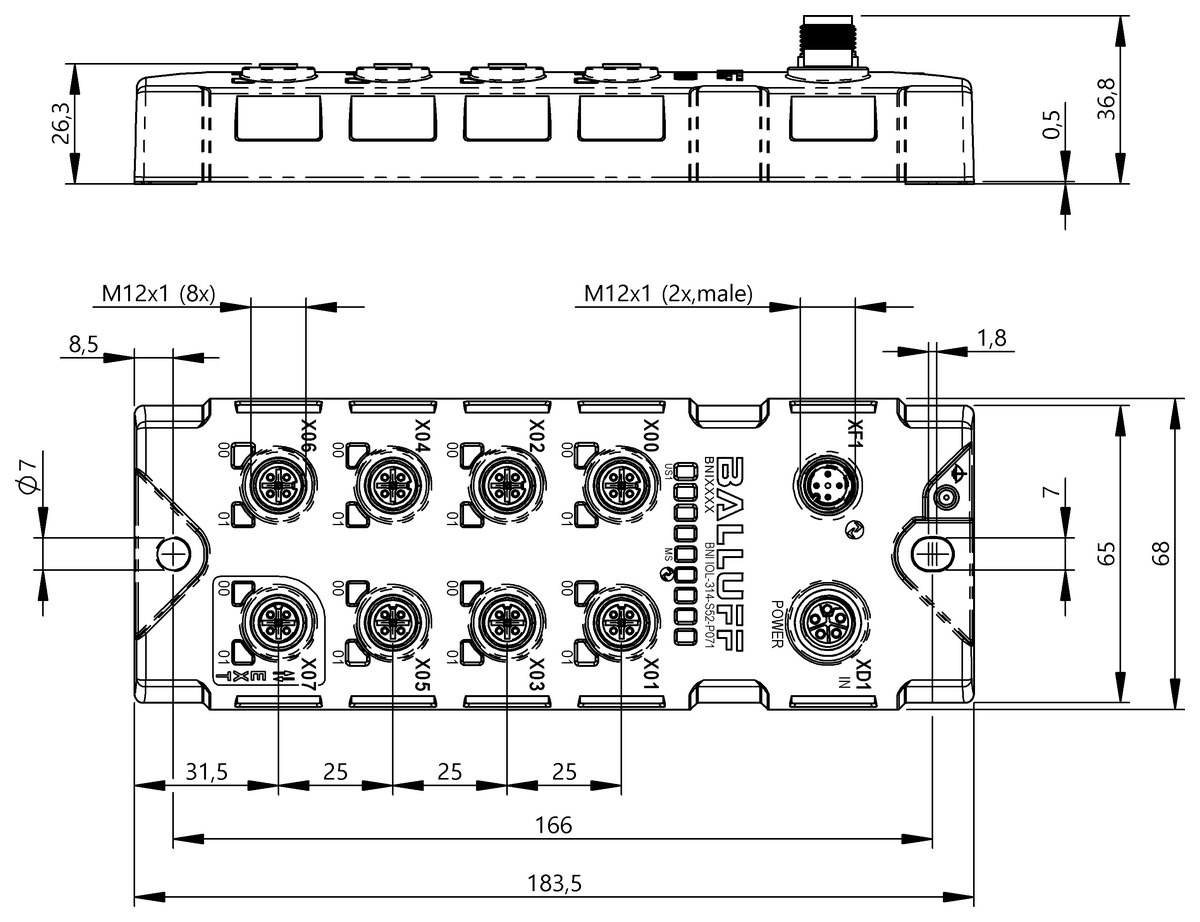

| 尺寸 | 68 x 38.3 x 183.5 mm | 68 x 38.3 x 183.5 mm |
| 环境温度 | -25...70 °C | -25...70 °C |
| 防护等级 | IP68, IP69K, 已拧紧螺栓的状态 | IP68, IP69K, 已拧紧螺栓的状态 |
| 传输率 | COM3 (230.4 kBaud) | COM3 (230.4 kBaud) |
| 过程数据周期，最小 | 2 ms | 2 ms |
| 过程数据输入 | 12 Byte | 12 Byte |
| 过程数据输出 | 2 Byte | 2 Byte |
| Secondary features |
Identification Device Discovery Signal Delay Signal Speed Monitor Switching Counter Operating Hours Counter Boot Cycle Counter Voltage and Current Monitoring Extreme Environment Status Variant Configuration |
Identification Device Discovery Signal Delay Signal Speed Monitor Switching Counter Operating Hours Counter Boot Cycle Counter Voltage and Current Monitoring Extreme Environment Status Variant Configuration |
| Secondary features for condition monitoring |
Vibration monitoring Internal temperature monitoring |
Vibration monitoring Internal temperature monitoring |
仅支持 CAD 模型下载
