主要特征
Special characteristics
Washdown Plus
Washdown
Washdown
产品组别
HF (13.56 MHz)

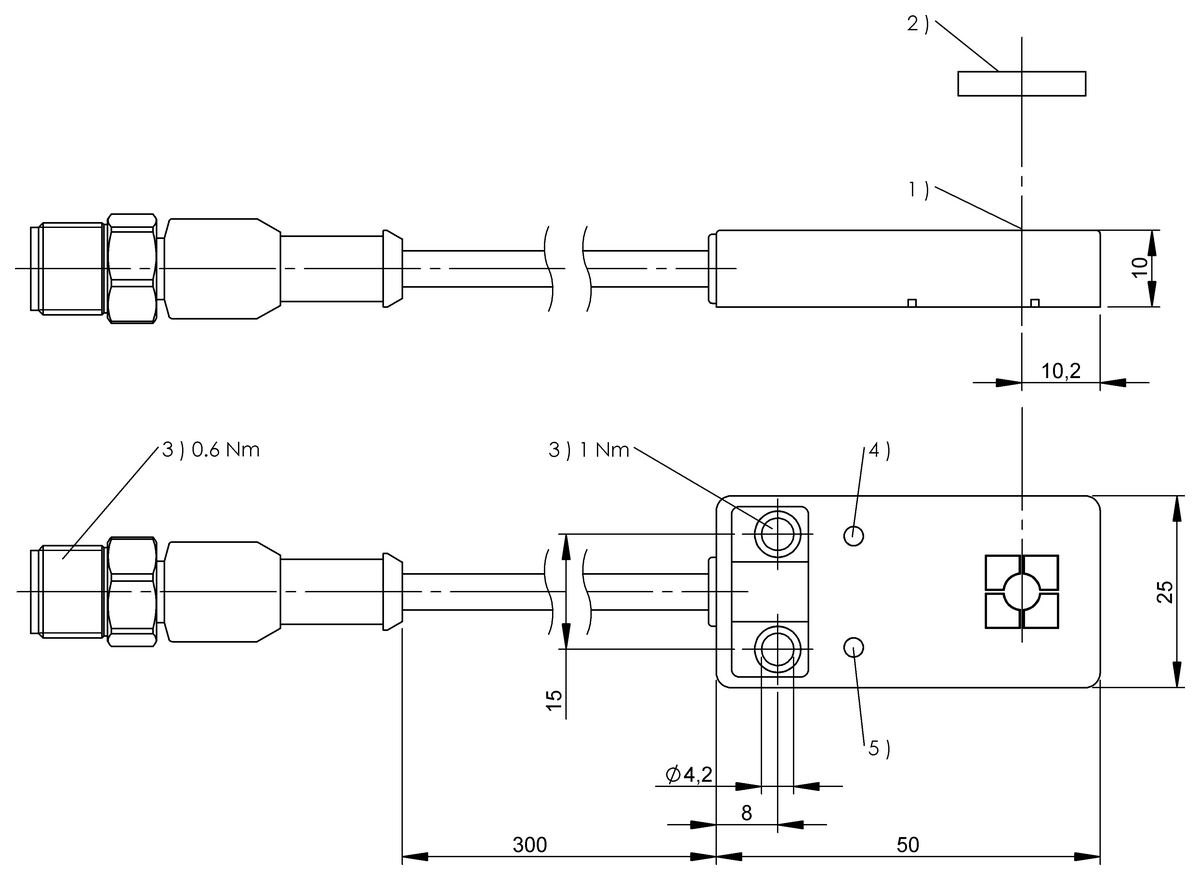

尺寸
25 x 10 x 50 mm
安装
无金属 (缓冲区)
金属上
金属齐平
金属上
金属齐平
天线形状
圆形
支持的数据载体类型
DIN ISO 15693
DIN ISO 15693 (High Memory)
DIN ISO 15693 (High Memory)
接口
插接器，M12x1公头，4针
外壳材料
ABS, ABS-GF16
接口
IO-Link 1.1
传输率
COM3 (230.4 kBaud)
过程数据输入
10 bytes
过程数据输出
10 bytes
工作电压Ub
18~30 VDC仅支持LPS/2级
环境温度
0...70 °C
防护等级
IP68
IP69K
IP69K
许可/一致性
CE
UKCA
FCC Part 15
IC (Radio)
WEEE
Ecolab
cULus
MIC
UKCA
FCC Part 15
IC (Radio)
WEEE
Ecolab
cULus
MIC
Secondary features
Identification
Device Discovery
Signal Quality Monitoring
Basic Statistics
Operating Hours Counter
Boot Cycle Counter
Voltage and Current Monitoring
Extreme Environment Status
Storage Usage Monitoring
Variant Configuration
Pin Assignment
Device Discovery
Signal Quality Monitoring
Basic Statistics
Operating Hours Counter
Boot Cycle Counter
Voltage and Current Monitoring
Extreme Environment Status
Storage Usage Monitoring
Variant Configuration
Pin Assignment
Secondary features for condition monitoring
Vibration monitoring
Inclination monitoring and installation aid
Internal temperature monitoring
Inclination monitoring and installation aid
Internal temperature monitoring
分类
ECLASS 10.1
27-28-04-01
ECLASS 11.0
27-28-04-01
ECLASS 12.0
27-28-04-01
ECLASS 13.0
27-28-04-01
ECLASS 14.0
27-28-04-01
ECLASS 5.1.4
27-28-04-01
ECLASS 6.2
27-28-04-01
ETIM 6.0
EC002998
ETIM 7.0
EC002998
ETIM 8.0
EC002998
UNSPSC 11
43211710
UNSPSC 7.0901
43211710
eCl@ss 4.1
27-28-04-01
eCl@ss 8.1
27-28-04-01
eCl@ss 9.0
27-28-04-01
eCl@ss 9.1
27-28-04-01
