BMF0006

Name: BMF0006
Brand: Balluff
SKU: BMF0006
Price: 517.13 CNY
Availability: OutOfStock

BMF 204K-PS-C-2A-SA95-S75-00,3

Cylinder sensors for multiple slot shapes

Slot type

C-slot

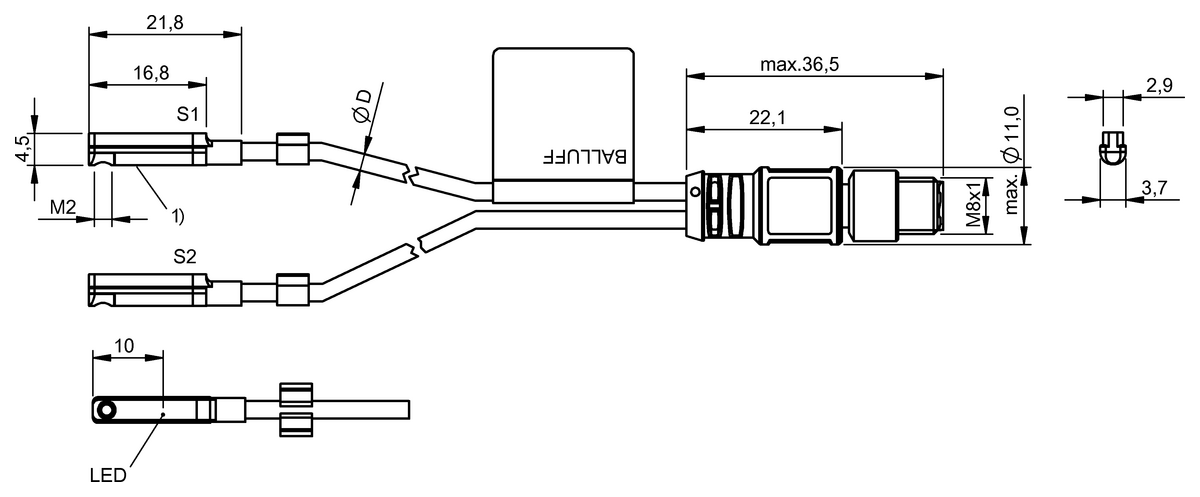

Dimension

16.8 x 2.9 x 4.5 mm

Principle of operation

Magnetic field sensor

Connection

M8x1-Male, 4-pin

Cable

PUR, 0.3 m

Recommended successor products

Estimated vailability

How does the alternative product differ from the discontinued one?

Do you have any questions about the product? Get in touch with us.

This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

		Recommended alternative	Further alternative	Further alternative

	BMF0006	BMF00P6	BMF0002	BMF00A2
	BMF 204K-PS-C-2A-SA95-S75-00,3	BMF 423K-AAPS-C-2-SA95-P0-S75-00,3	BMF 204K-PS-C-2A-SA2-S49-00,3	BMF 214K-PS-C-2A-SA2-S49-00,3
	517.13 CNY	582.38 CNY	355.95 CNY	355.95 CNY

Slot type	C-slot	C-slot	C-slot	C-slot
Dimension	16.8 x 2.9 x 4.5 mm	24 x 2.9 x 24 mm	16.8 x 2.9 x 4.5 mm	16.8 x 2.9 x 4.5 mm
Principle of operation	Magnetic field sensor	Magnetic field sensor	Magnetic field sensor	Magnetic field sensor
Connection	M8x1-Male, 4-pin	M8x1-Male, 4-pin	M8x1-Male, 3-pin	M8x1-Male, 3-pin
Cable	PUR, 0.3 m	PUR, 0.3 m	PUR, 0.3 m	PUR, 0.3 m
Application	Optimized response path especially suited for short-stroke cylinders.	Object detection	Optimized response path especially suited for short-stroke cylinders.	Optimized response path especially suited for short-stroke cylinders.
Mounting part	C-slot Sommer Festo slot 10	Screw M2	C-slot Sommer Festo slot 10	C-slot SMC Bimba Schunk
Housing material	PA 12	PA 12	PA 12	PA 12
Switching output	PNP normally open (NO)	PNP normally open (NO)	PNP normally open (NO)	PNP normally open (NO)
Switching frequency	7000 Hz	500 Hz	7000 Hz	7000 Hz
Operating voltage Ub	10...30 VDC	10...30 VDC	10...30 VDC	10...30 VDC
Ambient temperature	-25...85 °C	-25...85 °C	-25...85 °C	-25...85 °C
IP rating	IP67	IP67	IP67	IP67
Approval/Conformity	CE UKCA cULus WEEE	CE UKCA WEEE cULus	CE UKCA cULus WEEE	CE UKCA cULus WEEE
