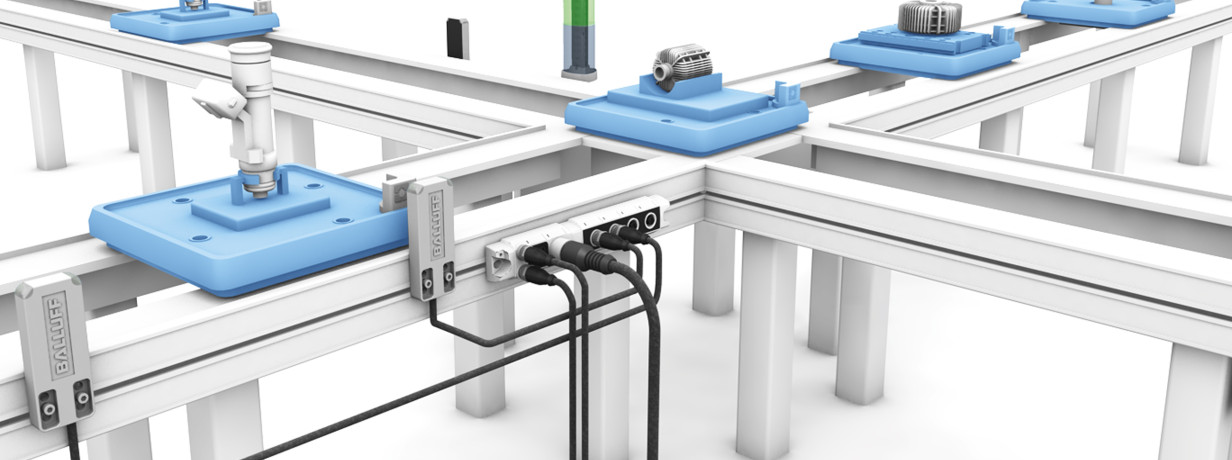

Automatic identification and tracking using RFID
Industrial RFID systems
To reliably and verifiably document individual work stages in modular handling and assembly system, we offer RFID read/write heads designed specifically for compact transfer systems. Since they can be installed without additional mounting brackets, you save installation space while enjoying all the benefits of non-contact identification – especially when you use our corner data carriers. These can be read and written from two sides.
Features
- Available for all common fieldbus systems, network-neutral with IO-Link
- Can be integrated into the most common profile systems without an additional mounting bracket
- Rugged metal housing with IP67
- LEDs visible from any direction for monitoring directly on the equipment
Recommended products for reliable tool identification
Multifrequency evaluation units
UHF data carrier for tool ID
IO-Link sensor/actuator hub
Multifrequency evaluation units
- Product group
- Multi-Frequency Processor
- Interface
-
Profinet I/O (IRT)
2 port Switch - Supported RFID technologies
-
LF 125 kHz (BIS VL)
HF 13.56 MHz (BIS VM)
UHF 860...930 MHz (BIS VU) - Number of connectable R/W heads / antennas
- 4
- Operating voltage Ub
- 24 V DC SELV/PELV
- Housing material
- Zinc, Die casting
- Ambient temperature
- 0...60 °C
- IP rating
- IP65, with connector
- Approval/Conformity
-
CE
UKCA
cULus
WEEE - Connection
-
2x M12x1-Female, 4-pin, D-coded
7/8"-Male, 5-pin
UHF data carrier for tool ID
- Product group
- UHF (860...930 MHz)
- Working frequency
- 850…960 MHz
- Dimension
- 23 x 1 x 100 mm
- Memory type
- EEPROM
- User data, read/write
- 128 Bit
- EPC memory, read/write
- 496 Bit
- TID memory, read-only
- 96 Bit
- Antenna type
- Dipole
- Installation
- metal-free (clear zone)
- Storage temperature
- -40...85 °C
- Ambient temperature
- -25...70 °C
- Housing material
- PET
- IP rating
- IP68
- Approval/Conformity
-
CE
UKCA
WEEE
IO-Link sensor/actuator hub
- Interface
- IO-Link 1.1
- Operating voltage Ub
- 18...30.2 VDC
- Connection (COM 1)
- M12x1-Male, 4-pin, A-coded
- Connection slots
- 8x M12x1-Female, 5-pin, A-coded
- Analog inputs
- 8x Analog, voltage/analog, current/analog, temperature (0…10 V/-10…10 V/0…5 V/-5…5 V/5...10 V/4…20 mA/0…20 mA/Pt100/Pt1000/Thermocouple Type J/Thermocouple Type K)
- Configurable inputs/outputs
- no
- Current sum US, sensor
- 4 A
- Current sum UA, actuator
- 4 A
- Housing material
- Die-cast zinc, nickel-plated
- Dimension
- 68 x 31.8 x 181.5 mm
- Ambient temperature
- -5...70 °C
- IP rating
- IP67, when threaded in
- Transfer rate
- COM2 (38.4 kBaud)
- Process data cycle min.
- 55 ms
- Process data IN
- 22 bytes
- Process data OUT
- 1 byte
