3D Machine Vision
Available in:
1 Series

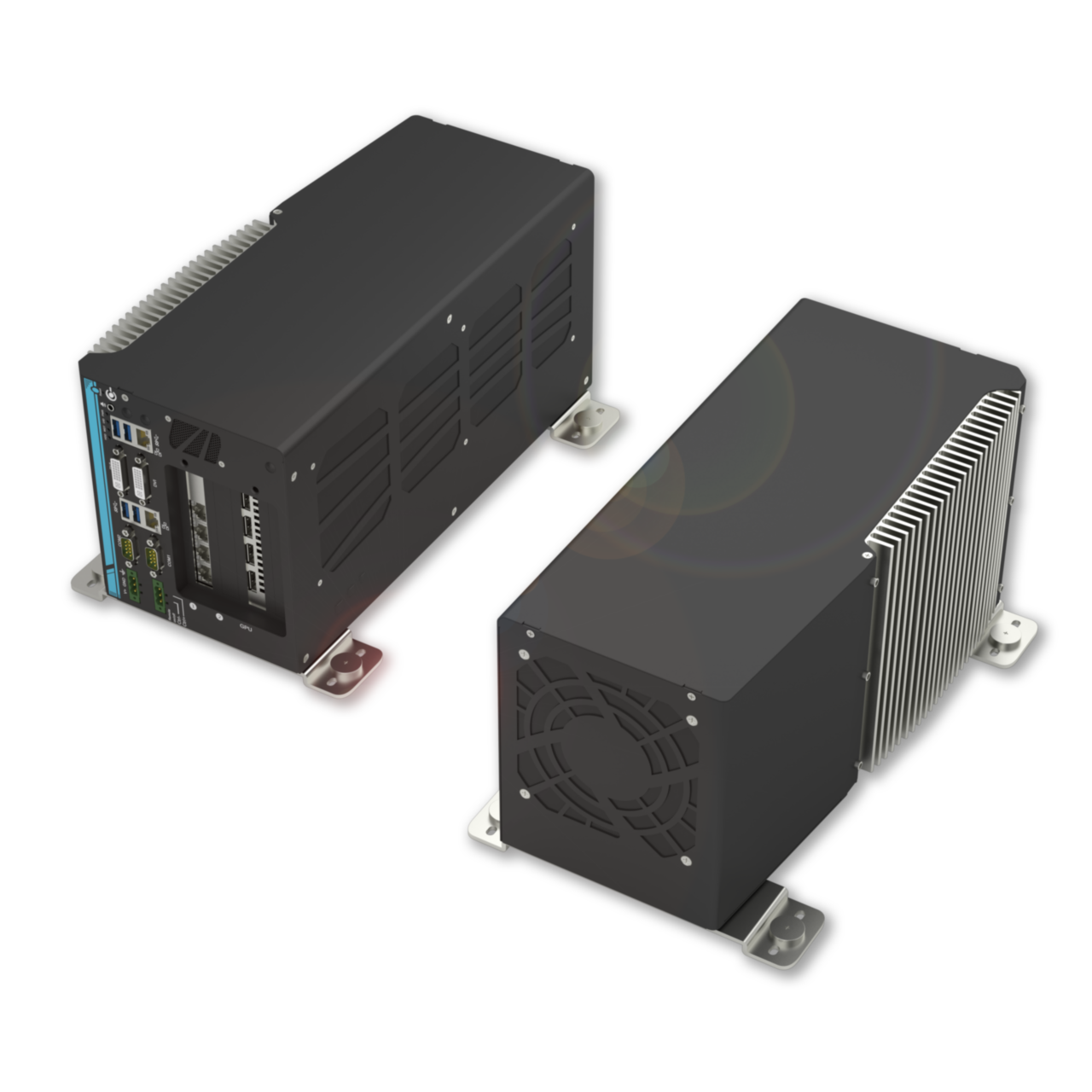

Discover the 3D Cube - the industrial edge computer that takes 3D cameras to a new level of performance. Thanks to powerful graphics processors, it is ideal for demanding calculations and applications, especially for AI-based software modules such as CADMatch and ItemPickAI.
Equipped with 4 Gigabit Ethernet interfaces, the 3D Cube enables the simultaneous operation of up to 4 cameras. This maximizes your efficiency and opens up new possibilities for your 3D vision applications. The simple parameterization via a user-friendly web interface makes the 3D Cube particularly attractive. Even complex bin picking projects can be realized time-effectively and without programming, saving you valuable time and resources
Features
- Industrial edge computer that takes 3D cameras to a new level of performance
- Easy operation thanks to user-friendly, web-based user interface
- UserSpace allows you to install your own software components
- Plug-and-play installation
1 Series
|
Series
|
Software Module | Interface | Mounting part | Connection (supply voltage IN) | Actions |
|---|---|---|---|---|---|
| Basis Software, SilhouetteMatch, EKIBridge, Basis Software, ItemPick, Basis Software, CADMatch, Basis Software, BoxPick, Basis Software, ItemPick, EKIBridge, Basis Software, CADMatch, EKIBridge, Basis Software, SilhouetteMatch, Basis Software, BoxPick, EKIBridge, Basis Software, EKIBridge, Basis Software, BoxPick+Match |
1 x Gigabit Ethernet (external connection) 4x Gigabit Ethernet (camera interface) Display Port, 4 x USB 3.0 |
Damped bracket for wall and rail mounting | 3-pin terminal block |
