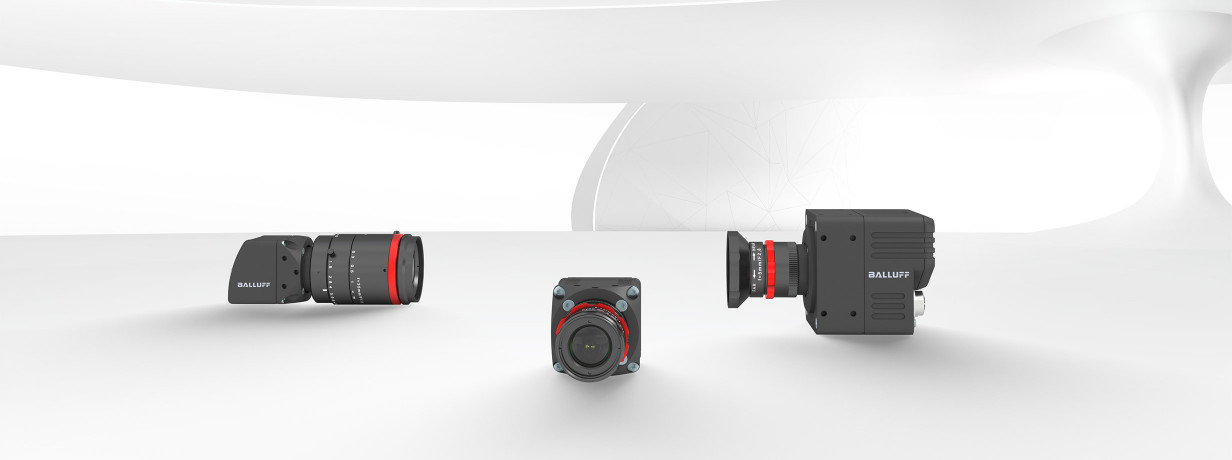

Industrial cameras
Unsurpassed image quality for industrial applications
The requirements for cameras in industrial environments are high. Above all, consistently high image quality and a long service life are crucial, since 24/7 continuous operation may be required. And changing an industrial camera in an overall system could result in recertification. To avoid this, we offer high-quality electronic components and image sensors.
Digital industrial cameras with USB and Ethernet interfaces have an analog/digital converter, which makes a frame grabber superfluous and significantly simplifies handling. Thanks to the GenICam, GigE Vision and USB3 Vision image processing standards, all cameras have standardized camera communication and unified naming conventions for camera functions and settings. This ensures easier operation.
Camera selector
Find the right industrial camera for your application according to your requirements.
Test our camera selector now.
Smart Features
Our cameras offer many integrated smart features for camera control, image quality optimization and multi-camera operation.
Further smart features can also be found in our Impact Acquire SDK.
Whitepapers
Learn interesting facts about application examples of our cameras as well as the basics of image processing and camera technology.
GigE Vision Cameras
- universal Gigabit Ethernet interface for fast data transmission
- excellent image quality due to high-quality sensors from VGA to 31.5 MPixel
- integrated smart features to reduce CPU load
- internal image memory for lossless image transmission
- large selection of I/O options, lens connectors, filters
- easy integration thanks to Software Development Kit

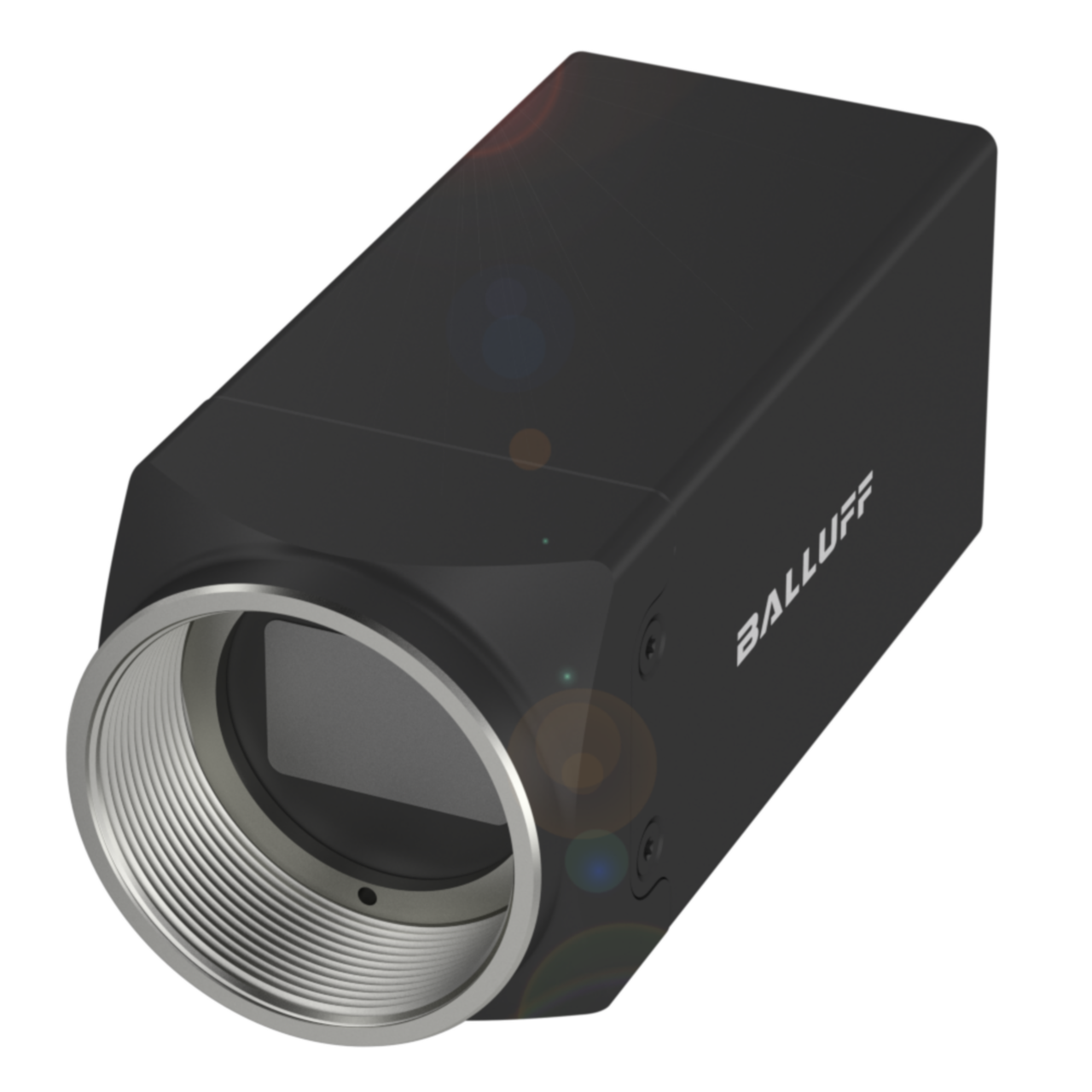

5 GigE Vision Cameras
- The family of cameras that will set new standards: small, compact, and backward compatible
- Fits everywhere - small form factor at 29×29 mm
- Perfect images - best-in-class thermal property due to lowest power consumption (< 4,3 Watt)
- Simple connectivity - power supply and data transmission via one cable by PoE
- Backward compatible to 2.5 GigE and 1 GigE interfaces
- Latest Sony image sensor implementation including IMX901 and IMX902 as well as SWIR high resolution sensors IMX992 and IMX993
10 GigE Vision Cameras
- High speed transfer rate with 10 Gigabit
- excellent image quality due to high quality Sony CMOS sensors up to 24.6 MPixel
- high reliability due to robust product design and internal image memory
- easy integration with the GigE Vision standard
- precise synchronization with Precision Time Protocol (PTP) according to IEEE1588
- power supply and data transmission via one cable by PoE+
25 GigE Vision Cameras
- Smallest 25GigE industrial camera with form factor of 40 x 40 mm
- Highest performance - using the RoCE v2 protocol to facilitate low-latency, high-throughput data transfer
- Easy implementation - by using the GigE Vision standard
- Cost effective, long range and simple connectivity - due to standard fiber optical connection technology SFP28
- Latest Sony image sensor implementation including IMX901 and IMX902 with a wide aspect ratio of 4:1 and 3:1
USB3 Vision Cameras
- universal USB3 camera series with up to 5 Gigabit transfer rate
- excellent image quality due to high quality sensors up to 31.5 MPixel
- onboard smart features for CPU unloading
- internal image memory for lossless image transfer
- various I/O options for easy process integration
- easy integration thanks to Software Development Kit
