Similar Illustration
Classic product
Only CAD model download is supported
Cubical through-beam sensors with different light types for washdown
Special characteristics
Washdown
Series
R01E

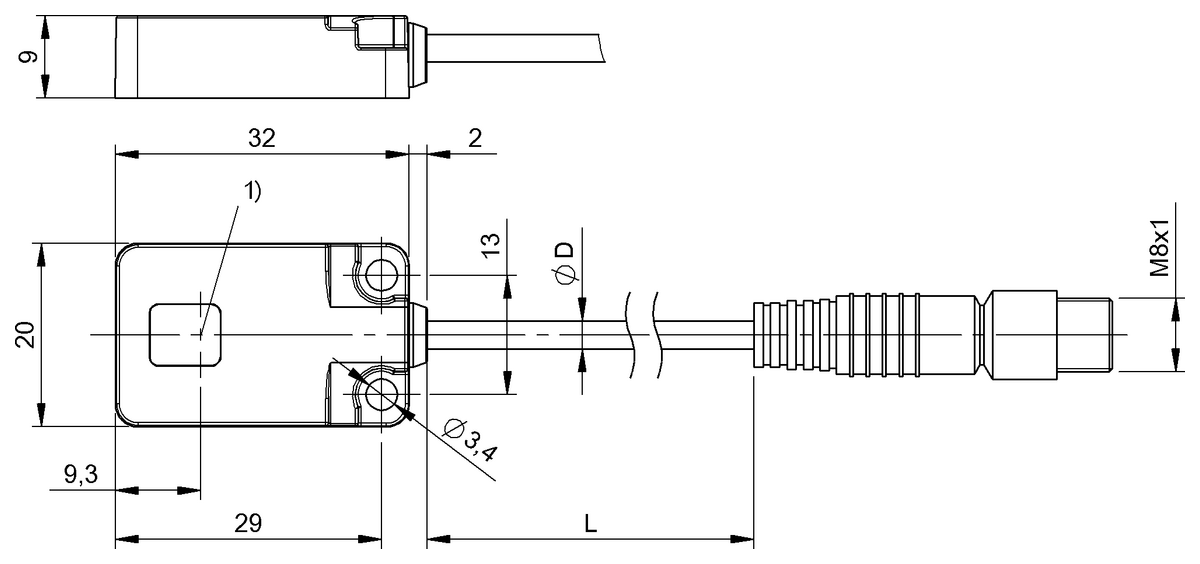

Dimension
20 x 32 x 9 mm
Principle of operation
Photoelectric sensor
Principle of optical operation
Through-beam sensor
This product is part of the Classic portfolio, that means
extended availability
flexible transition period
transparent conditions
Recommended successor products
BOS0228
Through-beam sensors
BOS R01E-NS-KE20-00,2-S49
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Discontinued
Recommended alternative
|
|
|
|
|
|
| BOS R01E-X-KS20-00,2-S49 | BOS R01E-NS-KE20-00,2-S49 | |
|
810.75 CNY
List price
|
-
List price
|
|
| Special characteristics | Washdown | Washdown |
|---|---|---|
| Series | R01E | R01E |
| Dimension | 20 x 32 x 9 mm | 20 x 32 x 9 mm |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Through-beam sensor | Through-beam sensor |
| Beam characteristic | Divergent | - |
| Light type | LED, red light | LED, red light |
| Light spot size | Ø 3.0 mm Light exit | - |
| Range | 0...2.2 m | 0...2.2 m |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.20 m, PUR | Cable with connector, M8x1-Male, 3-pin, 0.20 m, PUR |
| Housing material | 1.4404 stainless steel | 1.4404 stainless steel |
| Material sensing surface | PA | PA |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
cULus CE UKCA Ecolab WEEE |
CE UKCA cULus Ecolab WEEE |
| Interface | - | NPN normally open (NO) |
