Canceled
Only CAD model download is supported
Through-beam sensors
Special characteristics
Washdown
Series
R01E

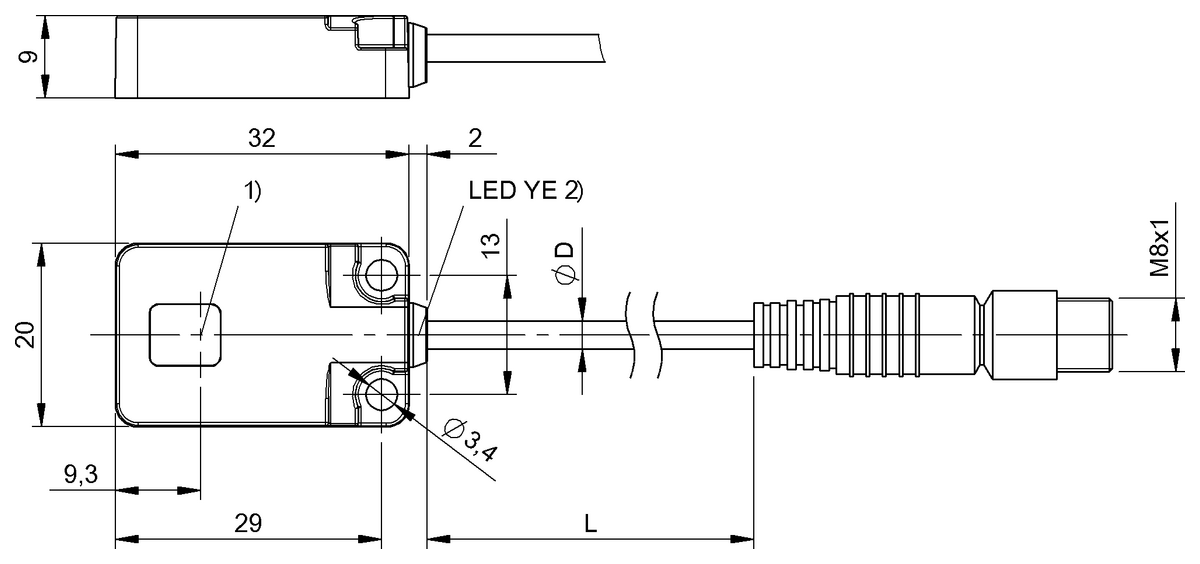

Dimension
20 x 32 x 9 mm
Interface
NPN normally open (NO)
Principle of operation
Photoelectric sensor
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Alternative
|
|
|
|
|
|
BOS0228BOS R01E-NS-KE20-00,2-S49845.25 CNY |
BOS022FBOS R01E-NS-KE20-02845.25 CNY |
|
| Special characteristics | Washdown | Washdown |
|---|---|---|
| Series | R01E | R01E |
| Dimension | 20 x 32 x 9 mm | 20 x 32 x 9 mm |
| Interface | NPN normally open (NO) | NPN normally open (NO) |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Through-beam sensor | Through-beam sensor |
| Light type | LED, red light | LED, red light |
| Range | 0...2.2 m | 0...2.2 m |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.20 m, PUR | Cable, 2.00 m, PUR |
| Housing material | 1.4404 stainless steel | 1.4404 stainless steel |
| Material sensing surface | PA | PA |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE UKCA cULus Ecolab WEEE |
cULus CE UKCA Ecolab WEEE |
Only CAD model download is supported
