Only CAD model download is supported
Economical network modules (Black Line)
Interface
Profinet, EtherNet/IP, EtherCAT
Interface IIoT
REST API, MQTT
Auxiliary interfaces
8x IO-Link
Port-class
Type A
Output current max.
4 A
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
Available
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
BNI00KHBNI XG5-508-0B5-R0674,226.25 CNY |
BNI00L3BNI XG3-508-0B5-R0673,579.38 CNY |
BNI00K6BNI XG5-508-1B5-Z0674,571.25 CNY |
|
| Interface | Profinet, EtherNet/IP, EtherCAT | Profinet, EtherNet/IP, EtherCAT | Profinet, EtherNet/IP, EtherCAT |
|---|---|---|---|
| Interface IIoT | REST API, MQTT | REST API, MQTT | REST API, MQTT |
| Auxiliary interfaces | 8x IO-Link | 8x IO-Link | 8x IO-Link |
| Port-class | Type A | Type A | Type A |
| Output current max. | 4 A | 2 A | 4 A |
| Display | no | no | yes |
| Operating voltage Ub | 18...30 VDC | 18...30 VDC | 18...30 VDC |
| Connection (COM 1) | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded |
| Connection (COM 2) | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded |
| Connection (supply voltage IN) | M12x1-Male, 5-pin, L-coded | M12x1-Male, 5-pin, L-coded | M12x1-Male, 5-pin, L-coded |
| Connection (supply voltage OUT) | M12x1-Female, 5-pin, L-coded | M12x1-Female, 5-pin, L-coded | M12x1-Female, 5-pin, L-coded |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded |
| Digital inputs | 16x PNP, Type 3 | 16x PNP, Type 3 | 16x PNP, Type 3 |
| Digital outputs | 16x PNP | 16x PNP | 16x PNP |
| Configurable inputs/outputs | yes | yes | yes |
| Current sum US, sensor | 16 A | 16 A | 16 A |
| Current sum UA, actuator | 16 A | 16 A | 16 A |
| Housing material |
Plastic Stainless steel, Inserts |
Plastic Stainless steel, Inserts |
Die-cast zinc, nickel-plated |

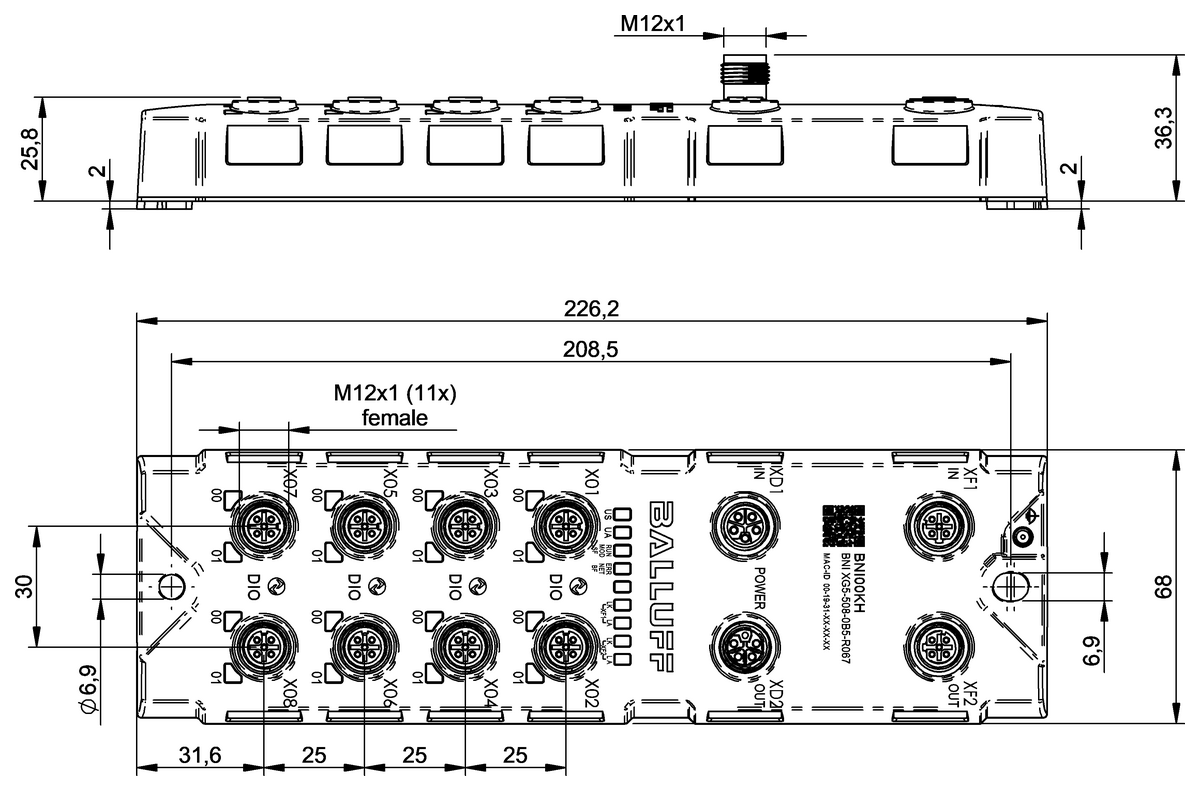

| Dimension | 68 x 38.3 x 226.2 mm | 68 x 38.3 x 226.2 mm | 68 x 32 x 224 mm |
| Ambient temperature | -25...70 °C | -25...70 °C | -5...70 °C |
| IP rating |
IP67 IP69K |
IP67 IP69K |
IP67 |
| IO-Link version | 1.1.3 | 1.1.3 | 1.1.3 |
| Scope of delivery |
Grounding strap M4x6 screw |
Grounding strap M4x6 screw |
Grounding strap M4x6 screw |
| Not incl. in scope of delivery |
Label plates Port cover |
Label plates Port cover |
Label plates Port cover |
