Alternative products
|
|
Alternative
|
|
|
|
|
BNI00K5BNI XG3-508-0C5-R0156,037.50 CNY |
BNI0077BNI ECT-508-105-Z0155,493.30 CNY |
|
| Interface | EtherCAT | EtherCAT |
|---|---|---|
| Interface IIoT | REST API, MQTT | - |
| Auxiliary interfaces | 8x IO-Link | 8x IO-Link |
| Port-class | Type A | Type A |
| Output current max. | 2 A | 2 A |
| Display | no | - |
| Operating voltage Ub | 18...30.2 VDC | 18...30.2 VDC |
| Connection (COM 1) | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded |
| Connection (COM 2) | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded |
| Connection (supply voltage IN) | 7/8"-Male, 5-pin | 7/8"-Male, 5-pin |
| Connection (supply voltage OUT) | 7/8"-Female, 5-pin | 7/8"-Female, 5-pin |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded |
| Digital inputs | 16x PNP, Type 3 | 16x PNP, Type 3 |
| Digital outputs | 16x PNP | 16x PNP |
| Configurable inputs/outputs | yes | yes |
| Current sum US, sensor | 9.0 A | 9.0 A |
| Current sum UA, actuator | 9.0 A | 9.0 A |
| Housing material | Plastic | Die-cast zinc, nickel-plated |

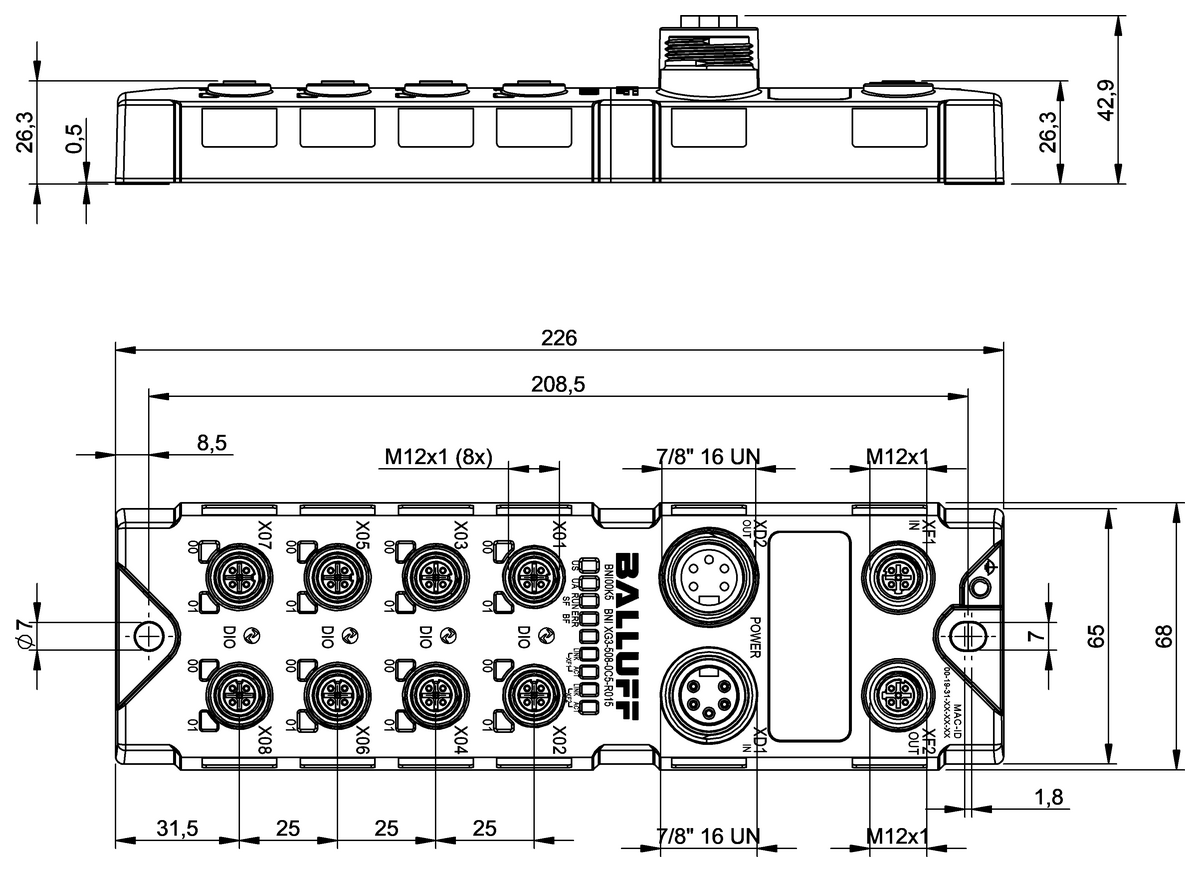

| Dimension | 68 x 42.9 x 226 mm | 68 x 37.9 x 224 mm |
| Ambient temperature | -25...70 °C | -5...70 °C |
| IP rating | IP67 | IP67 |
| IO-Link version | 1.1.3 | 1.1 |
Only CAD model download is supported
Rethinking industrial networking
Balluff’s expanded network portfolio sets new standards in user-friendliness and quick access to the right product for your needs. The good remains: Balluff products, known for quality, innovation, and reliability.
Discover our product lines Black, Silver, Wash, and Safe Line, which offer a particularly quick selection of our network components. Choose from three performance classes the solution that suits you best.
