IO-Link sensor/actuator hubs for specialized applications (Silver Line)
Interface
IO-Link 1.1
Operating voltage Ub
18...30.2 VDC
Connection (COM 1)
M12x1-Male, 4-pin, A-coded
Connection (supply voltage IN)
7/8"-Male, 4-pin
Connection slots
8x M12x1-Female, 5-pin, A-coded
This product is part of the Classic portfolio, that means
extended availability
flexible transition period
transparent conditions
Recommended successor products
BNI0091
IO-Link hubs - flexible and cost-efficient signal bundling
BNI IOL-302-S02-R026
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Recommended alternative
|
Further alternative
|
|
|
|
|
|
|
| BNI IOL-302-S02-Z026 | BNI IOL-302-S02-R026 | BNI IOL-302-S02-Z013 | |
|
2,389.13 CNY
List price
|
3,171.45 CNY
List price
|
2,311.50 CNY
List price
|
|
| Interface | IO-Link 1.1 | IO-Link 1.1 | IO-Link 1.1 |
|---|---|---|---|
| Operating voltage Ub | 18...30.2 VDC | 18...30.2 VDC | 18...30.2 VDC |
| Connection (COM 1) | M12x1-Male, 4-pin, A-coded | M12x1-Male, 4-pin, A-coded | M12x1-Male, 4-pin, A-coded |
| Connection (supply voltage IN) | 7/8"-Male, 4-pin | 7/8"-Male, 4-pin | 7/8"-Male, 5-pin |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded |
| Digital inputs | 16x PNP, Type 3 | 16x PNP, Type 3 | 16x PNP, Type 3 |
| Digital outputs | 16x PNP | 16x PNP | 16x PNP |
| Configurable inputs/outputs | yes | yes | yes |
| Extension port | yes | yes | yes |
| Single-channel monitoring | yes | yes | yes |
| Current sum US, sensor | 9.0 A | 9 A | 9.0 A |
| Switching current | 16x 2 A | 16x 2 A | 16x 2 A |
| Current sum UA, actuator | 9.0 A | 9 A | 9.0 A |
| Housing material | Die-cast zinc, nickel-plated |
PBT, GF30 1.4404 stainless steel, Inserts |
Die-cast zinc, nickel-plated |

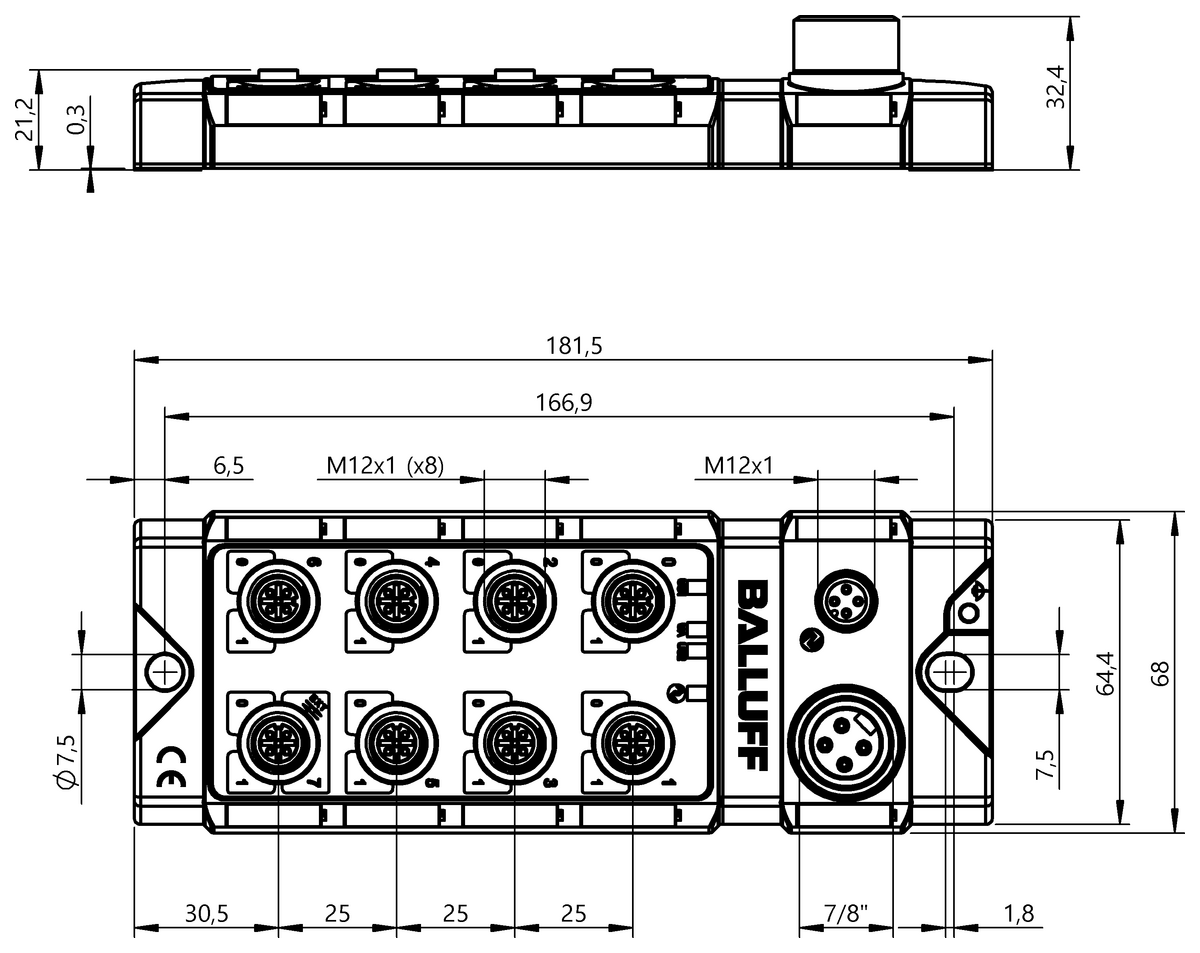

| Dimension | 68 x 32.4 x 181.5 mm | 68 x 39.1 x 183.5 mm | 68 x 32.4 x 181.5 mm |
| Ambient temperature | -5...55 °C | -5...55 °C | -5...55 °C |
| IP rating | IP67, when threaded in | IP67, when threaded in | IP67, when threaded in |
| Transfer rate | COM2 (38.4 kBaud) | COM2 (38.4 kBaud) | COM2 (38.4 kBaud) |
| Process data cycle min. | 5.6 ms | 6.0 ms | 6.2 ms |
| Process data IN | 6 bytes | 6 bytes | 8 bytes |
| Process data OUT | 2 bytes | 2 bytes | 2 bytes |
