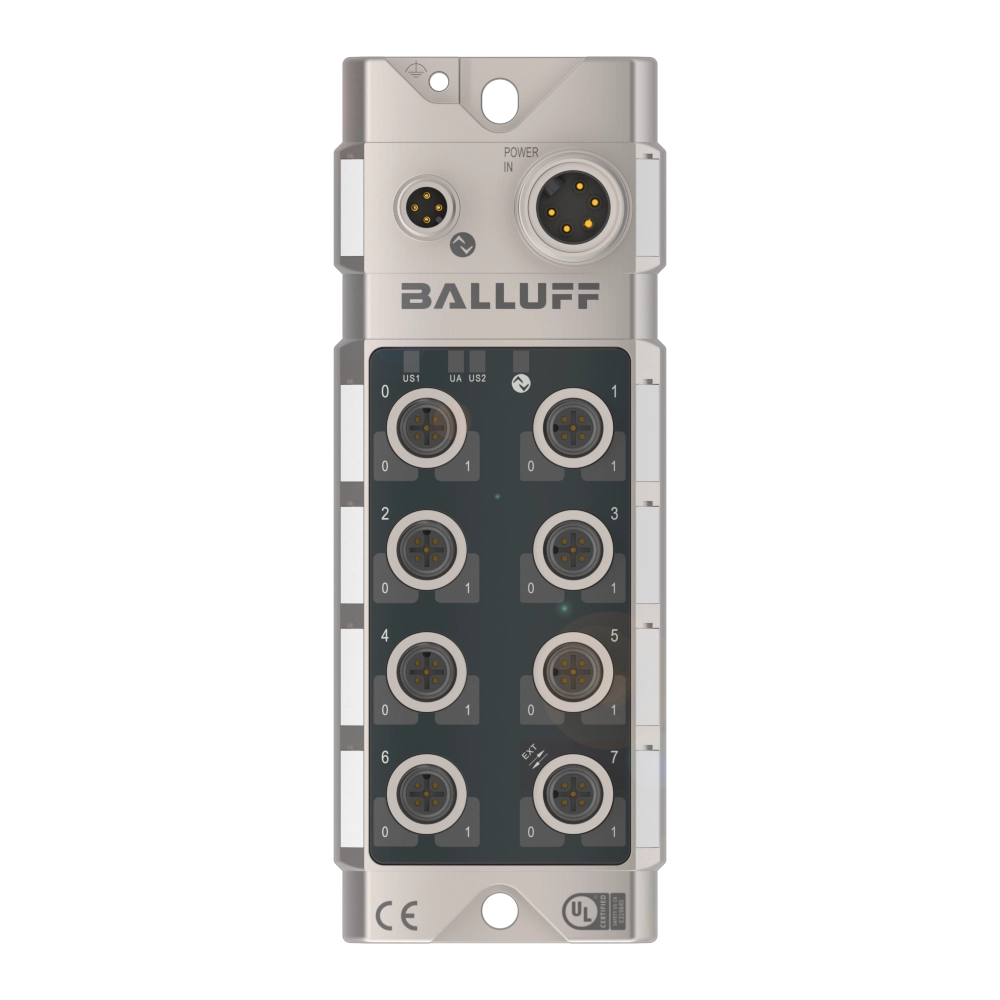

Similar Illustration

BNI0046

Name: BNI0046
Brand: Balluff
SKU: BNI0046
Price: 2311.5 CNY
Availability: OutOfStock

BNI IOL-302-S02-Z013

IO-Link sensor/actuator hubs for specialized applications (Silver Line)

Interface

IO-Link 1.1

Operating voltage Ub

18...30.2 VDC

Connection (COM 1)

M12x1-Male, 4-pin, A-coded

Connection (supply voltage IN)

7/8"-Male, 5-pin

Connection slots

8x M12x1-Female, 5-pin, A-coded

Do you have any questions about the product?

		Alternative	Further alternative

	BNI0046 BNI IOL-302-S02-Z013 2,311.50 CNY	BNI00CP BNI IOL-302-S02-Z026 2,389.13 CNY	BNI0091 BNI IOL-302-S02-R026 3,171.45 CNY
Interface	IO-Link 1.1	IO-Link 1.1	IO-Link 1.1
Operating voltage Ub	18...30.2 VDC	18...30.2 VDC	18...30.2 VDC
Connection (COM 1)	M12x1-Male, 4-pin, A-coded	M12x1-Male, 4-pin, A-coded	M12x1-Male, 4-pin, A-coded
Connection (supply voltage IN)	7/8"-Male, 5-pin	7/8"-Male, 4-pin	7/8"-Male, 4-pin
Connection slots	8x M12x1-Female, 5-pin, A-coded	8x M12x1-Female, 5-pin, A-coded	8x M12x1-Female, 5-pin, A-coded
Digital inputs	16x PNP, Type 3	16x PNP, Type 3	16x PNP, Type 3
Digital outputs	16x PNP	16x PNP	16x PNP
Configurable inputs/outputs	yes	yes	yes
Extension port	yes	yes	yes
Single-channel monitoring	yes	yes	yes
Current sum US, sensor	9.0 A	9.0 A	9 A
Switching current	16x 2 A	16x 2 A	16x 2 A
Current sum UA, actuator	9.0 A	9.0 A	9 A
Housing material	Die-cast zinc, nickel-plated	Die-cast zinc, nickel-plated	PBT, GF30 1.4404 stainless steel, Inserts

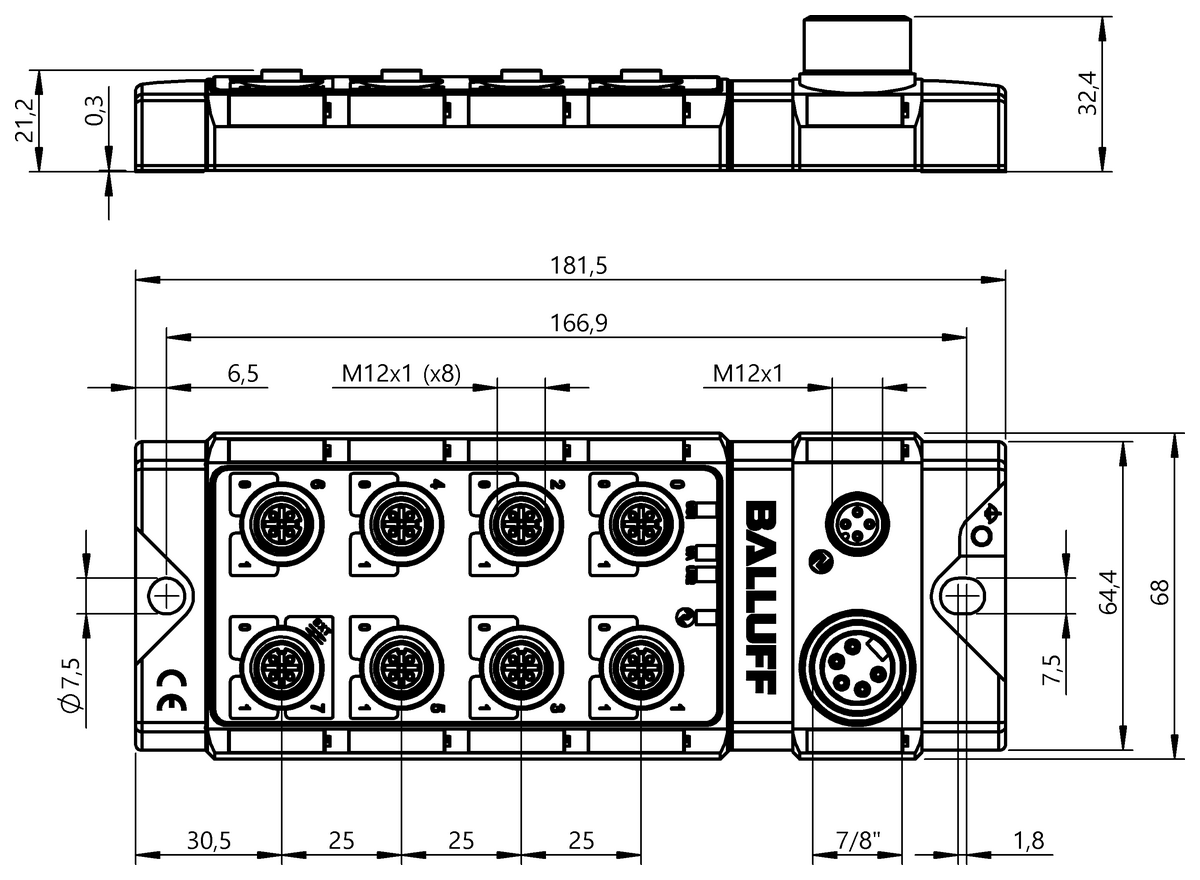

Dimension	68 x 32.4 x 181.5 mm	68 x 32.4 x 181.5 mm	68 x 39.1 x 183.5 mm
Ambient temperature	-5...55 °C	-5...55 °C	-5...55 °C
IP rating	IP67, when threaded in	IP67, when threaded in	IP67, when threaded in
Transfer rate	COM2 (38.4 kBaud)	COM2 (38.4 kBaud)	COM2 (38.4 kBaud)
Process data cycle min.	6.2 ms	5.6 ms	6.0 ms
Process data IN	8 bytes	6 bytes	6 bytes
Process data OUT	2 bytes	2 bytes	2 bytes
