Similar Illustration

BMF00PM

Name: BMF00PM
Brand: Balluff
SKU: BMF00PM
Price: 232.05 CNY
Availability: OutOfStock

BMF 235K-HMPS-C-3-P0-S49-00,3

For T-slot

Slot type

T-slot

Dimension

23.5 x 5 x 5.5 mm

Principle of operation

Magnetic field sensor

Connection

M8x1-Male, 3-pin

Cable

TPU, 0.3 m

Benefit of the multi-piece packaging

Compact and space-saving design

Save time on unpacking and assembly

Reduction of plastic packaging material

Do you have any questions about the product? Get in touch with us.

This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

		Alternative	Further alternative

	BMF00PM	BMF00H3	BMF00PP
	BMF 235K-HMPS-C-3-P0-S49-00,3	BMF 235K-PS-C-2A-SA93-S49-00,3	BMF 235K-HMPS-C-3-SA95-P0-S75-00,3
	232.05 CNY	541.58 CNY	404.55 CNY

Slot type	T-slot	T-slot	T-slot
Dimension	23.5 x 5 x 5.5 mm	23.5 x 5 x 5.5 mm	23.5 x 5 x 5.5 mm
Principle of operation	Magnetic field sensor	Magnetic field sensor	Magnetic field sensor
Connection	M8x1-Male, 3-pin	M8x1-Male, 3-pin	M8x1-Male, 4-pin
Cable	TPU, 0.3 m	PUR with silicone tube, 0.3 m	TPU, 0.3 m

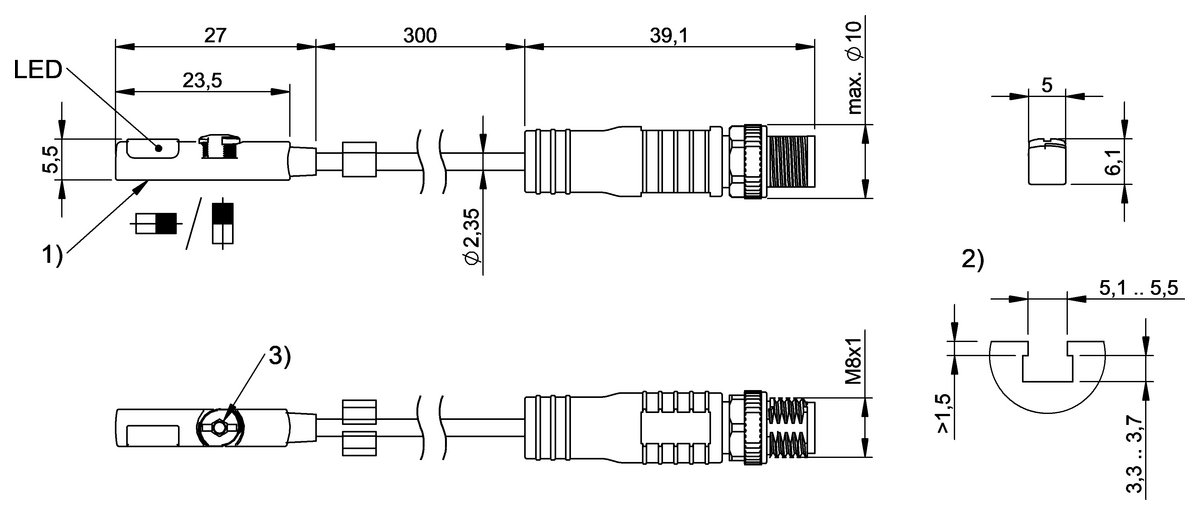

Application	Pneumatic cylinder with T-slot. For dimensions, see sketch in product view.	Pneumatic cylinder with T-slot. For dimensions, see sketch in product view.	Pneumatic cylinder with T-slot. For dimensions, see sketch in product view.
Mounting part	can be installed in T-slot from above	can be installed in T-slot from above	can be installed in T-slot from above
Housing material	PA 12	PA 12	PA 12
Switching output	PNP normally open (NO)	PNP normally open (NO)	PNP normally open (NO)
Switching frequency	3000 Hz	3000 Hz	3000 Hz
Operating voltage Ub	10...30 VDC	10...30 VDC	10...30 VDC
Ambient temperature	-25...85 °C	-25...85 °C	-25...85 °C
IP rating	IP67	IP67	IP67
Approval/Conformity	cULus CE UKCA WEEE	cULus CE UKCA WEEE	cULus CE UKCA WEEE
