BMF00E3

Name: BMF00E3
Brand: Balluff
SKU: BMF00E3
Price: 290.78 CNY
Availability: OutOfStock

BMF 214K-PS-C-2A-PU-05

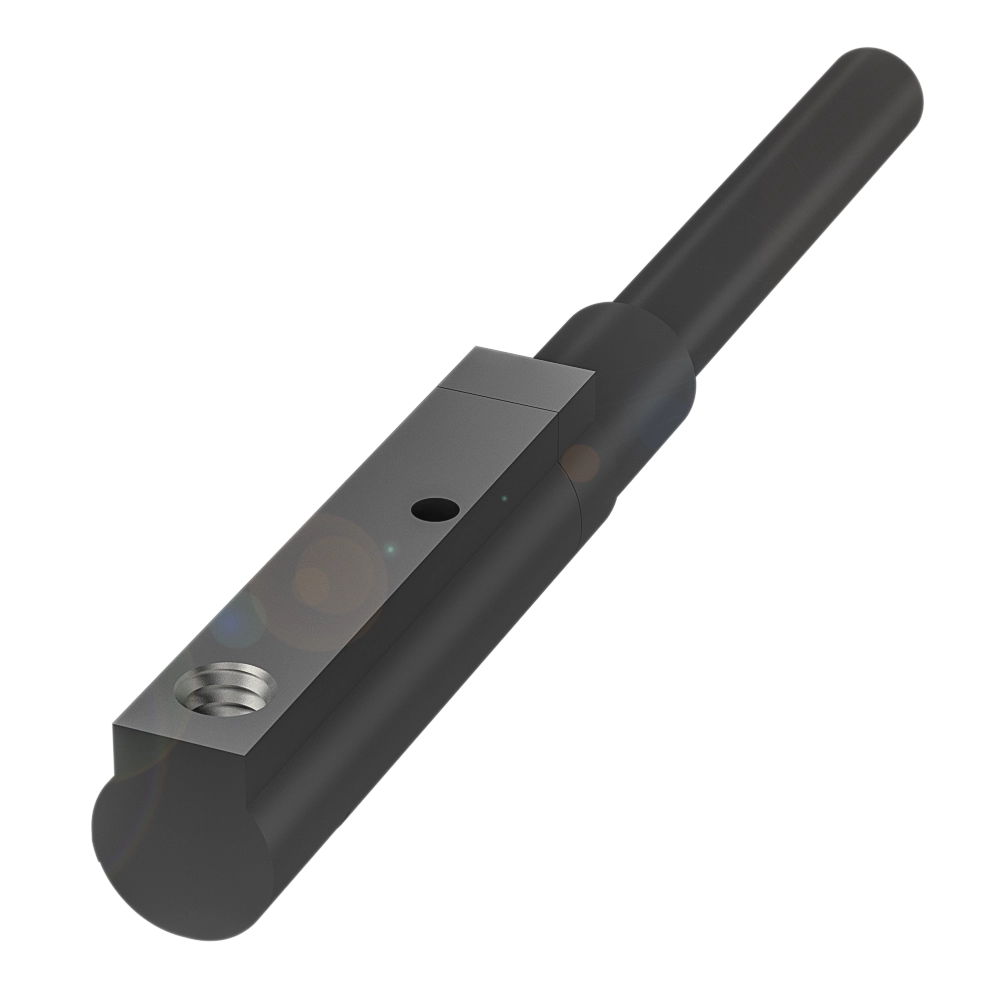

Cylinder sensors for multiple slot shapes

Slot type

C-slot

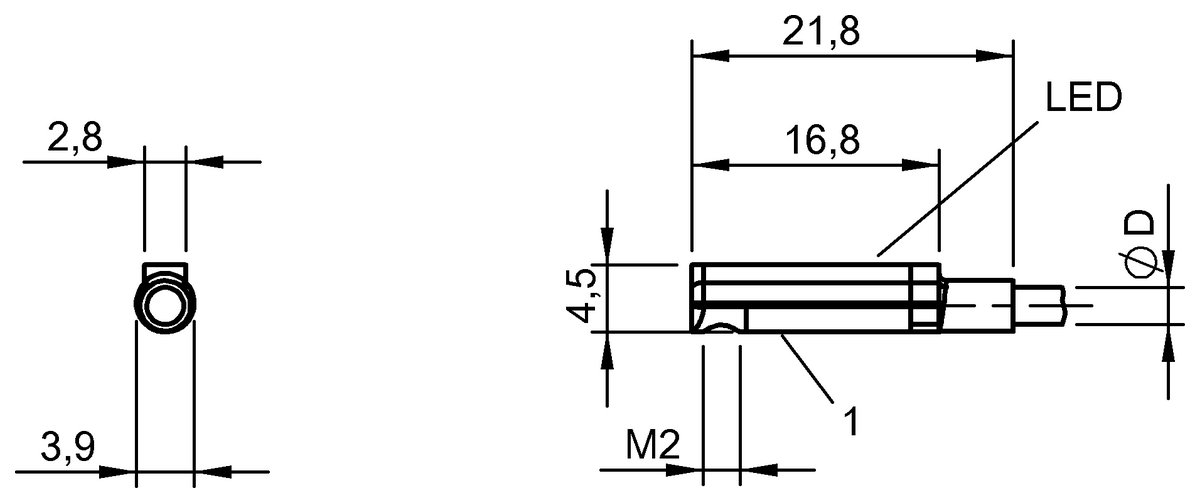

Dimension

16.8 x 2.9 x 4.5 mm

Principle of operation

Magnetic field sensor

Cable

PUR, 5 m

Application

Optimized response path especially suited for short-stroke cylinders.

Recommended successor products

Estimated vailability

How does the alternative product differ from the discontinued one?

Do you have any questions about the product?

		Recommended alternative	Further alternative	Further alternative

	BMF00E3 BMF 214K-PS-C-2A-PU-05 290.78 CNY	BMF00NW BMF 423K-AAPS-C-2-P0-05 316.13 CNY	BMF0001 BMF 204K-PS-C-2A-PU-02 270.83 CNY	BMF00A1 BMF 214K-PS-C-2A-PU-02 270.83 CNY
Slot type	C-slot	C-slot	C-slot	C-slot
Dimension	16.8 x 2.9 x 4.5 mm	24 x 2.9 x 24 mm	16.8 x 2.9 x 4.5 mm	16.8 x 2.9 x 4.5 mm
Principle of operation	Magnetic field sensor	Magnetic field sensor	Magnetic field sensor	Magnetic field sensor
Cable	PUR, 5 m	PUR, 5 m	PUR, 2 m	PUR, 2 m
Application	Optimized response path especially suited for short-stroke cylinders.	Object detection	Optimized response path especially suited for short-stroke cylinders.	Optimized response path especially suited for short-stroke cylinders.
Mounting part	C-slot SMC Bimba Schunk	Screw M2	C-slot Sommer Festo slot 10	C-slot SMC Bimba Schunk
Housing material	PA 12	PA 12	PA 12	PA 12
Switching output	PNP normally open (NO)	PNP normally open (NO)	PNP normally open (NO)	PNP normally open (NO)
Switching frequency	7000 Hz	500 Hz	7000 Hz	7000 Hz
Operating voltage Ub	10...30 VDC	10...30 VDC	10...30 VDC	10...30 VDC
Ambient temperature	-25...85 °C	-25...85 °C	-25...85 °C	-25...85 °C
IP rating	IP67	IP67	IP67	IP67
Approval/Conformity	CE UKCA cULus WEEE	CE UKCA WEEE cULus	cULus CE UKCA WEEE	CE UKCA cULus WEEE
