For tie rod cylinders

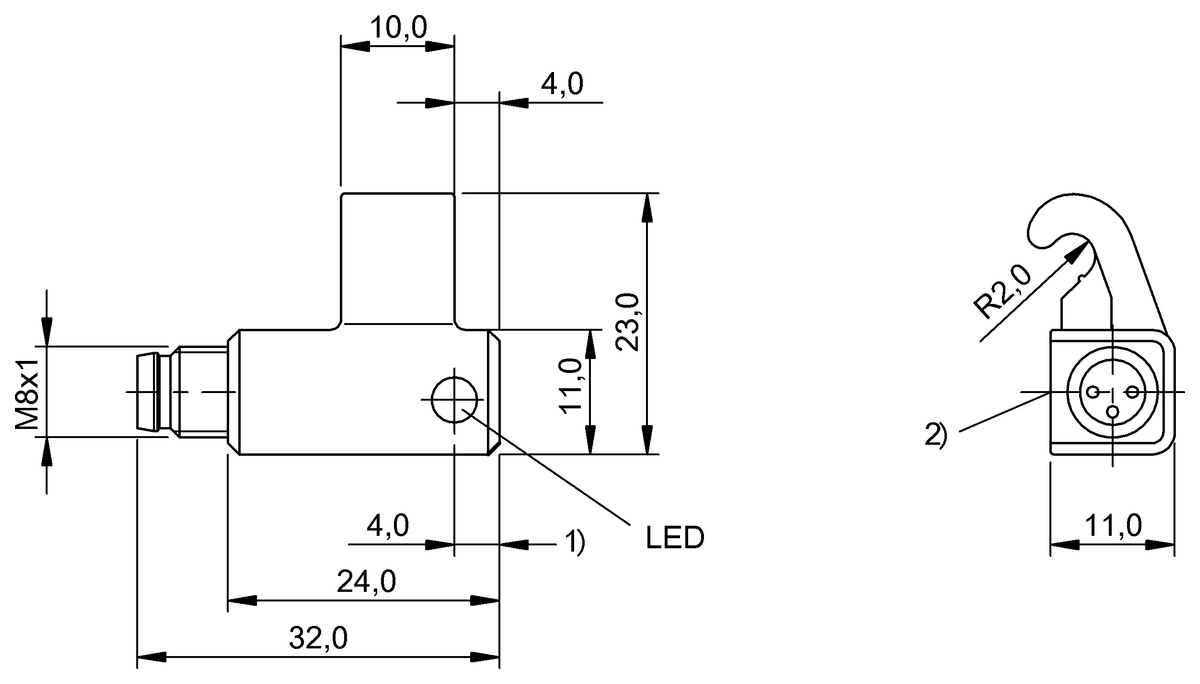

Dimension
11 x 11 x 32 mm
Principle of operation
Magnetic field sensor
Connection
M8x1-Male, 3-pin
Application
Pneumatic cylinder with tie rods
Pneumatic cylinder with DUO rail
Round cylinder
Profile cylinder
Pneumatic cylinder with DUO rail
Round cylinder
Profile cylinder
Housing material
PBT
Do you have any questions about the product?
Alternative products
|
Available
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
BMF0029BMF 21K-PS-C-2-S49461.85 CNY |
BMF008FBMF 305M-PS-C-2-S49421.13 CNY |
BMF0088BMF 32M-PS-C-2-S49446.55 CNY |
|
| Dimension | 11 x 11 x 32 mm | 33.5 x 9 x 26.2 mm | 25 x 11.9 x 26 mm |
|---|---|---|---|
| Principle of operation | Magnetic field sensor | Magnetic field sensor | Magnetic field sensor |
| Connection | M8x1-Male, 3-pin | M8x1-Male, 3-pin | M8x1-Male, 3-pin |
| Application |
Pneumatic cylinder with tie rods Pneumatic cylinder with DUO rail Round cylinder Profile cylinder |
larger actuators |
Round cylinder Pneumatic cylinder with trapezoidal slot |
| Housing material | PBT | Aluminium | Aluminium |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 10000 Hz | 10000 Hz | 10000 Hz |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...85 °C | -25...85 °C | -25...85 °C |
| IP rating | IP67 | IP67 | IP67 |
| Approval/Conformity |
cULus CE UKCA WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
