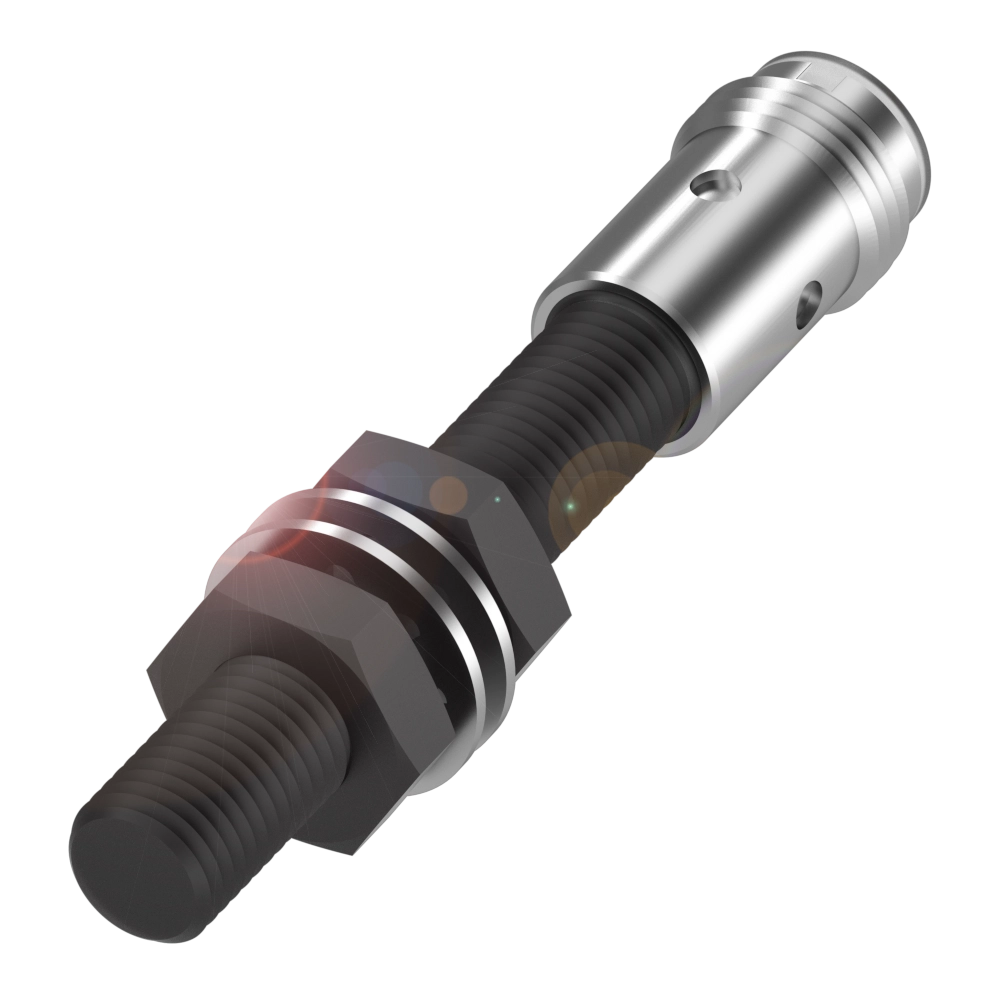

Similar Illustration
Replacement available
Only CAD model download is supported
Cylindrical version for high-pressure-resistant applications
Dimension
Ø 8 x 65 mm
Style Housing
M8x1
Installation
for flush mounting
Range
2 mm
Switching output
PNP normally open (NO)
Recommended alternative
BES02N5
Inductive full-metal sensors
BES M08EH1-PSC20B-S04G-S
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Recommended alternative
|
|
|
|
|
|
| BES M08EH1-PSC20B-S04G-S03 | BES M08EH1-PSC20B-S04G-S | |
|
957.52 CNY
List price
|
837.68 CNY
List price
|
|
| Dimension | Ø 8 x 65 mm | Ø 8 x 65 mm |
|---|---|---|
| Style Housing | M8x1 | M8x1 |
| Installation | for flush mounting | for flush mounting |
| Range | 2 mm | 2 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 750 Hz | 750 Hz |
| Housing material | Stainless steel, coated, PTFE | Stainless steel |
| Material sensing surface | Stainless steel/coated/PTFE | Stainless steel |
| Connection | Connector, M12x1-Male, 3-pin | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C |
| Pressure rating max. | 80 bar | 80 bar |
| IP rating | IP67 | IP67 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
