Similar Illustration

BES04RE

Name: BES04RE
Brand: Balluff
SKU: BES04RE
Price: 3540.98 CNY
Availability: OutOfStock

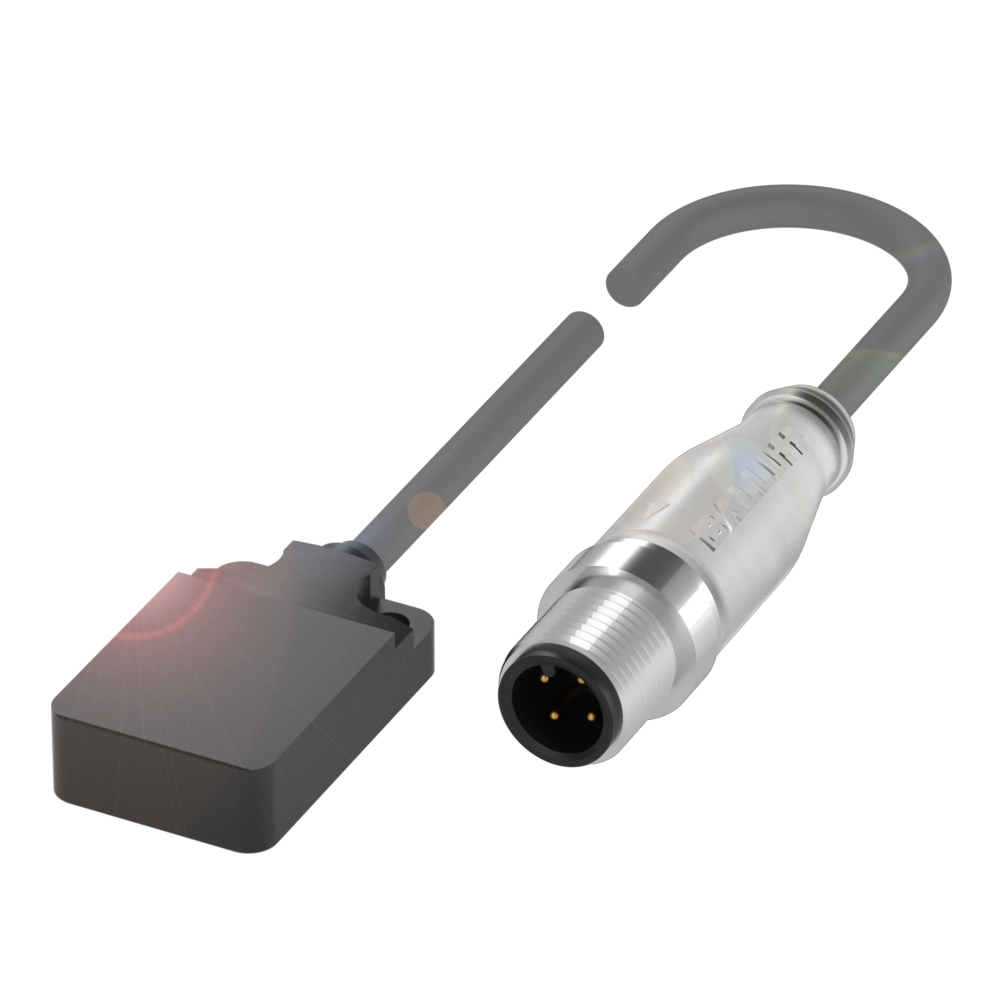

BES R01EC-PSC50A-BS00,3-GS04-W51

Cubic version for magnetic-field-resistant applications

Dimension

32 x 20 x 8 mm

Style Housing

32x20x8

Installation

for flush mounting

Range

5 mm

Switching output

PNP normally open (NO)

Do you have any questions about the product? Get in touch with us.

This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

		Alternative	Further alternative

	BES04RE	BES04RF	BES049Y
	BES R01EC-PSC50A-BS00,3-GS04-W51	BES R01EC-PSC50A-BZ00,3-GS04-W51	BES R01EC-PSC50A-BP00,3-GS04-W51
	3,540.98 CNY	3,540.98 CNY	3,511.13 CNY

Dimension	32 x 20 x 8 mm	32 x 20 x 8 mm	32 x 20 x 8 mm
Style Housing	32x20x8	32x20x8	32x20x8
Installation	for flush mounting	for flush mounting	for flush mounting
Range	5 mm	5 mm	5 mm
Switching output	PNP normally open (NO)	PNP normally open (NO)	PNP normally open (NO)
Switching frequency	20 Hz	20 Hz	20 Hz
Housing material	Stainless steel, PTFE coated	Stainless steel, PTFE coated	Stainless steel, PTFE coated
Material sensing surface	Stainless steel, W51 ceramic coating	Stainless steel, W51 ceramic coating	Stainless steel, W51 ceramic coating
Connection	Cable with connector, M12x1-Male, 4-pin, 0.30 m, Silicone	Cable with connector, M12x1-Male, 4-pin, 0.30 m, ETFE	Cable with connector, M12x1-Male, 4-pin, 0.30 m, PUR
Operating voltage Ub	10...30 VDC	10...30 VDC	10...30 VDC
Ambient temperature	-25...70 °C	-25...70 °C	-25...70 °C
Magnetic field immune	magnetic field immune (AC/DC)	magnetic field immune (AC/DC)	magnetic field immune (AC/DC)
IP rating	IP67	IP67	IP67
Approval/Conformity	CE UKCA cULus WEEE	CE UKCA cULus WEEE	CE UKCA cULus WEEE
Additional features	Factor 1 Housing resistant to weld spatter Weld immune	Factor 1 Housing resistant to weld spatter Weld immune	Factor 1 Housing resistant to weld spatter Weld immune
