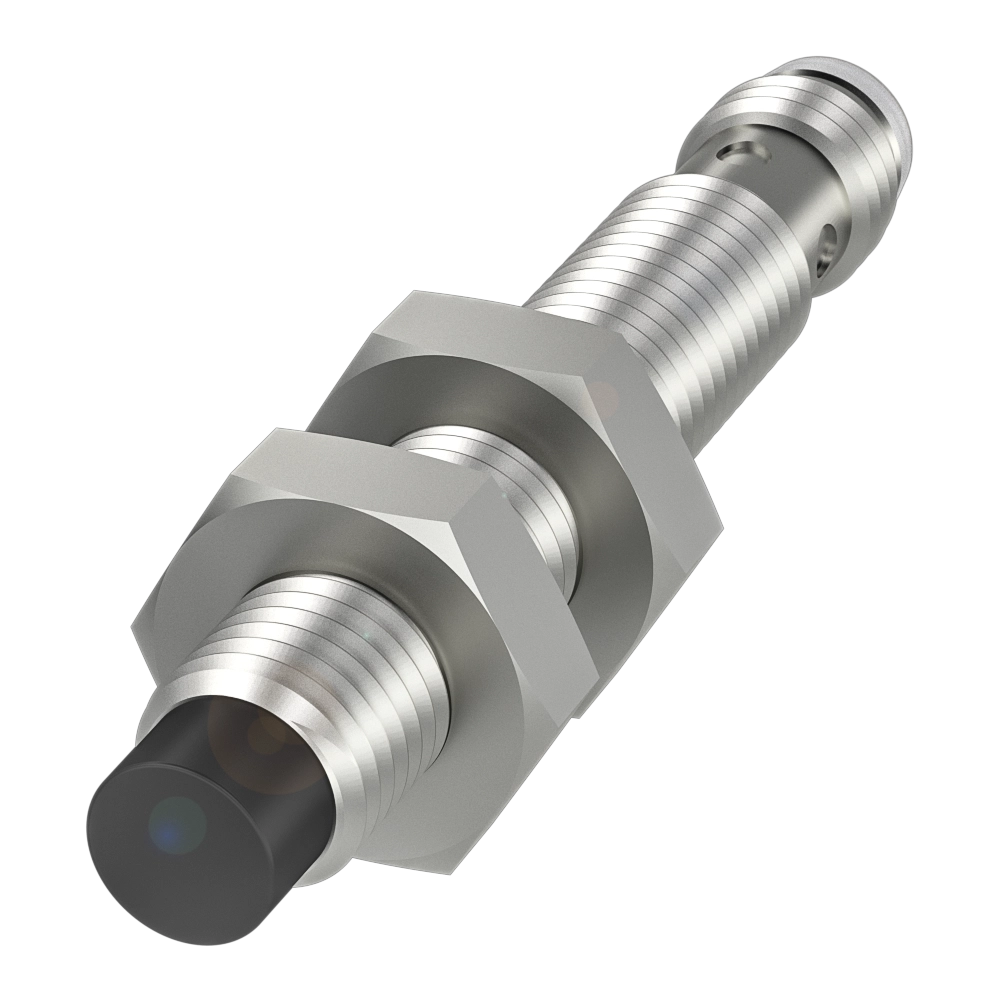

Cylindrical compact version with M5 or M8 thread

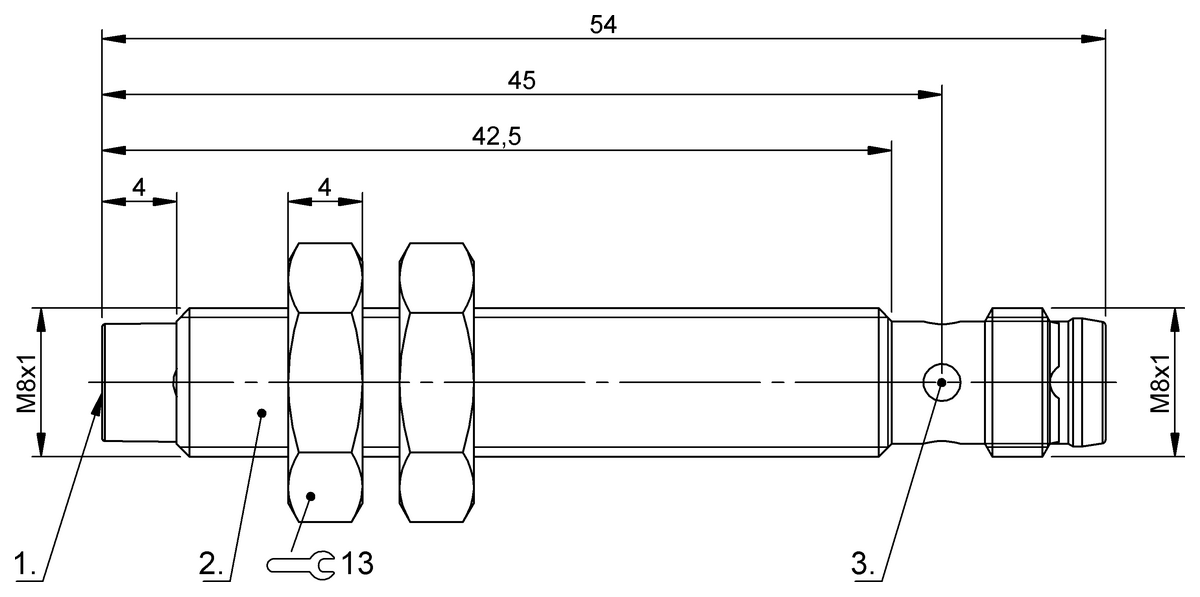

Dimension
Ø 8 x 54 mm
Series
M08
Installation
non-flush
Connection
Connector, M8x1-Male, 4-pin
Switching output
Push-pull NO(PNP)/NC(NPN) Programmable
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
Discontinued
|
Alternative
|
|
![]() |
![]() |
|
BCS01C5BCS M08B4G1-PIC40G-S75G1,382.63 CNY |
BCS01AUBCS M08B4F1-GSC40G-S49G1,330.88 CNY |
|
Dimension | Ø 8 x 54 mm | Ø 8 x 49 mm |
---|---|---|
Series | M08 | M08 |
Installation | non-flush | non-flush |
Connection | Connector, M8x1-Male, 4-pin | Connector, M8x1-Male, 3-pin |
Switching output | Push-pull NO(PNP)/NC(NPN) Programmable | Push-pull NO(PNP)/NC(NPN) |
Switching frequency | 50 Hz | 100 Hz |
Interface | IO-Link-Device 1.1.3 | - |
Sensitivity | Switching distance teachable | Switching distance adjustable |
Housing material | 1.4404 stainless steel | 1.4404 stainless steel |
Material sensing surface | PBT | PBT |
Ambient temperature | -20...85 °C | -20...85 °C |
Operating voltage Ub | 10...30 VDC | 10...30 VDC |
Approval/Conformity |
CE WEEE cULus IO-Link |
CE WEEE cULus |
IP rating | IP67 | IP67 |
