Power cables
Connection

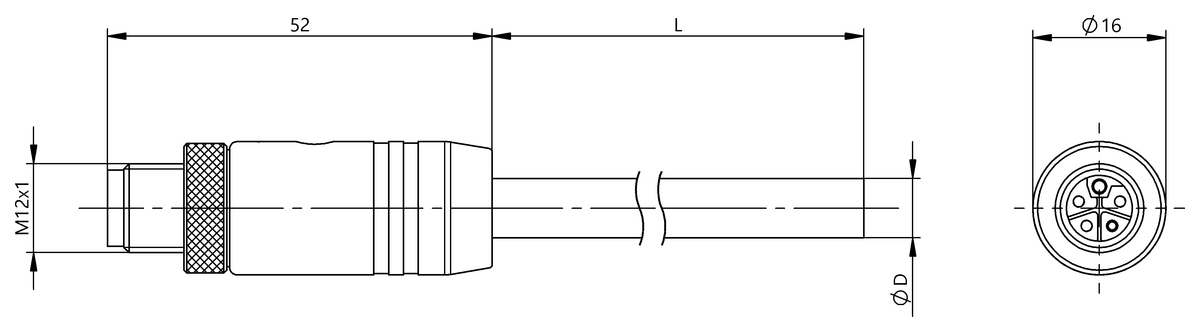

M12x1-Male, straight, 5-pin, L-coded
Cable
PUR black, 2 m, drag chain compatible
Number of conductors
4
Conductor cross-section
1.5 mm²
Cable temperature, fixed routing
-40...80 °C
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
|
|
|
|
|
|
BCC M415-0000-2L-003-PX04A5-020
302.25 CNY
List price
|
BCC M425-0000-2L-003-PX04A5-020
302.25 CNY
List price
|
|
| Connection | M12x1-Male, straight, 5-pin, L-coded | M12x1-Male, angled, 5-pin, L-coded |
|---|---|---|
| Cable | PUR black, 2 m, drag chain compatible | PUR black, 2 m, drag chain compatible |
| Number of conductors | 4 | 4 |
| Conductor cross-section | 1.5 mm² | 1.5 mm² |
| Cable temperature, fixed routing | -40...80 °C | -40...80 °C |
| Cable temperature, flexible routing | -30...80 °C | -30...80 °C |
| Operating voltage Ub | 60 VDC / 50 VAC | 60 VDC / 50 VAC |
| Rated current (40 °C) | 16.0 A | 16.0 A |
| IP rating | IP65, IP67, IP69K | IP65, IP67, IP69K |
| Approval/Conformity |
CE WEEE cULus UKCA |
CE WEEE cULus UKCA |
