Similar Illustration

BCC0L33

Name: BCC0L33
Brand: Balluff
SKU: BCC0L33
Price: 464.7 CNY
Availability: OutOfStock

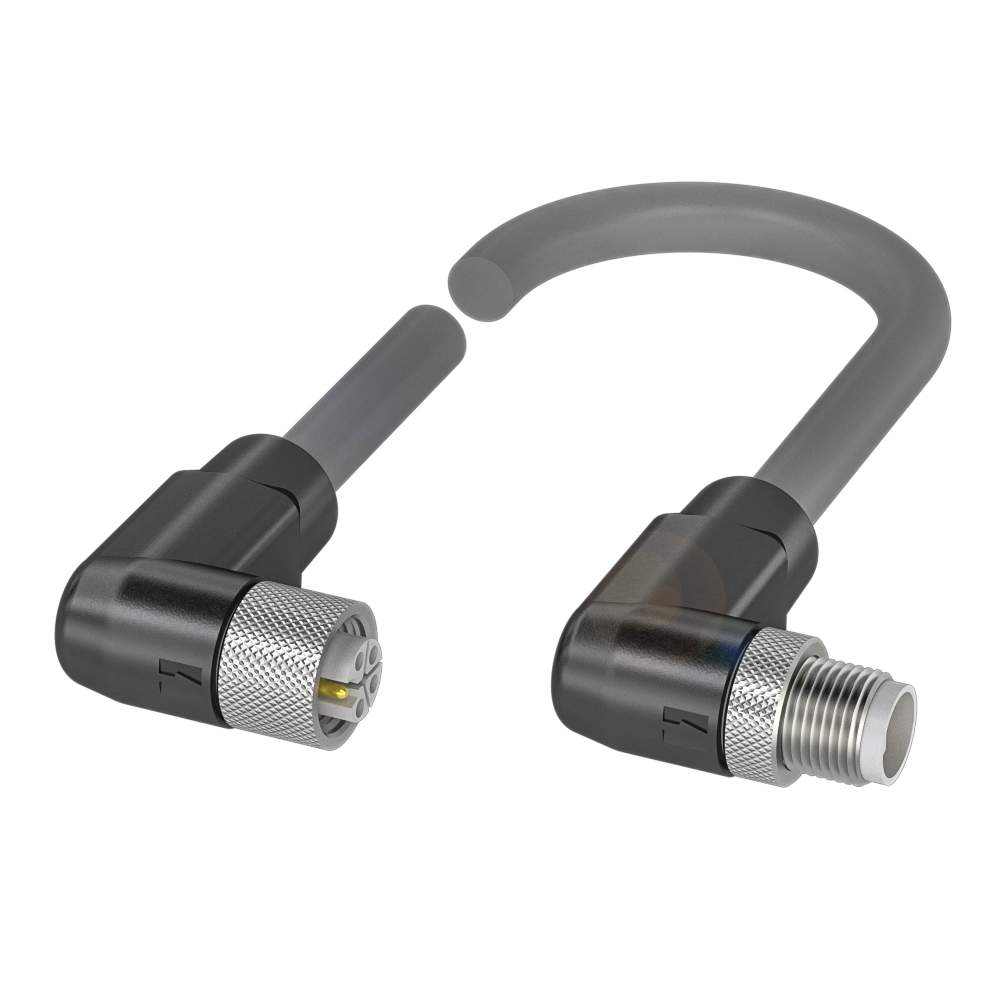

BCC M425-M425-3L-386-PX85A5-006

Power cables

Connection 1

M12x1-Female, angled, 5-pin, L-coded

Connection 2

M12x1-Male, angled, 5-pin, L-coded

Cable

PUR gray, 0.6 m, drag chain compatible

Number of conductors

Cable temperature, fixed routing

-40...80 °C

Do you have any questions about the product?

		Alternative	Further alternative

	BCC0L33 BCC M425-M425-3L-386-PX85A5-006 464.70 CNY	BCC0L3H BCC M415-M425-3L-386-PX85A5-006 464.70 CNY	BCC0L3N BCC M425-M415-3L-386-PX85A5-006 464.70 CNY
Connection 1	M12x1-Female, angled, 5-pin, L-coded	M12x1-Female, straight, 5-pin, L-coded	M12x1-Female, angled, 5-pin, L-coded
Connection 2	M12x1-Male, angled, 5-pin, L-coded	M12x1-Male, angled, 5-pin, L-coded	M12x1-Male, straight, 5-pin, L-coded
Cable	PUR gray, 0.6 m, drag chain compatible	PUR gray, 0.6 m, drag chain compatible	PUR gray, 0.6 m, drag chain compatible
Number of conductors	5	5	5
Cable temperature, fixed routing	-40...80 °C	-40...80 °C	-40...80 °C
Cable temperature, flexible routing	-30...80 °C	-30...80 °C	-30...80 °C
Operating voltage Ub	60 VDC / 50 VAC	60 VDC / 50 VAC	60 VDC / 50 VAC
Rated current (40 °C)	16.0 A	16.0 A	16.0 A
IP rating	IP65, IP67, IP69K/IP65, IP67, IP69K	IP65, IP67, IP69K/IP65, IP67, IP69K	IP65, IP67, IP69K/IP65, IP67, IP69K
Approval/Conformity	CE WEEE cULus UKCA	CE WEEE cULus UKCA	CE WEEE cULus UKCA
