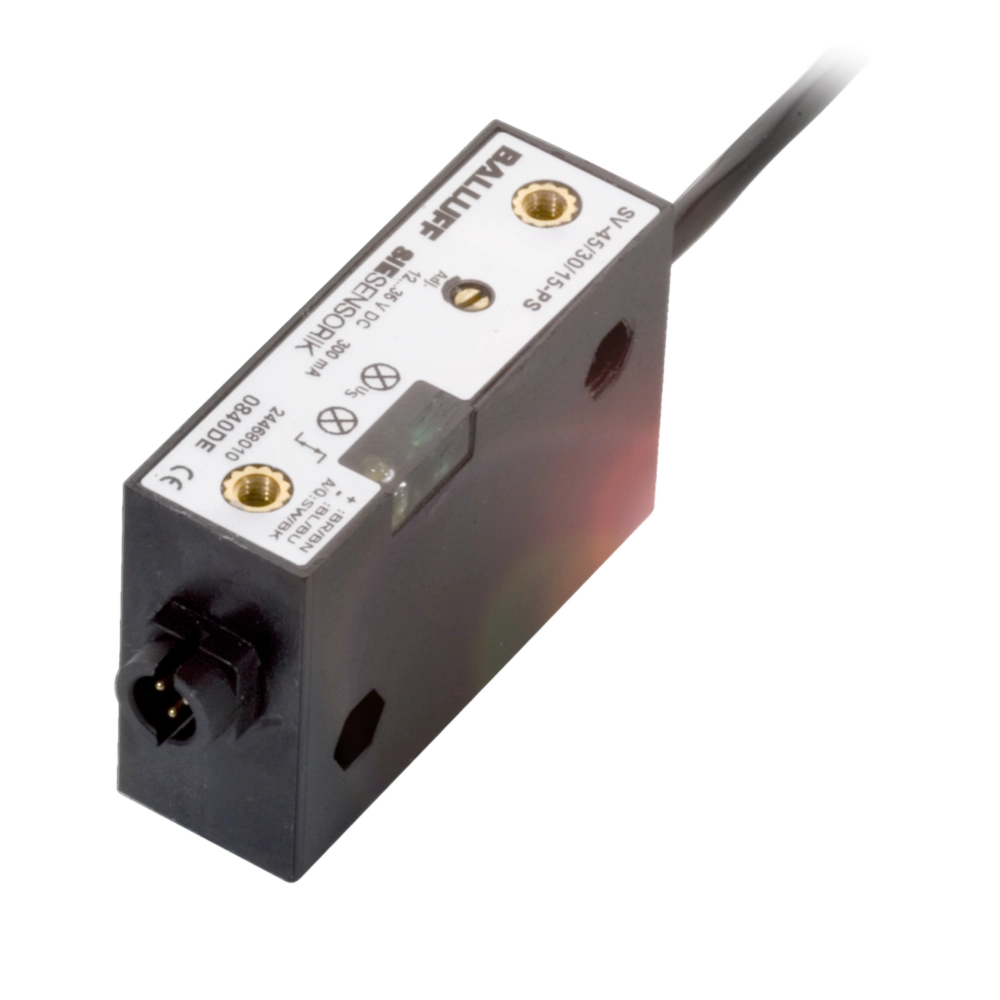

Amplifiers for capacitive sensor heads

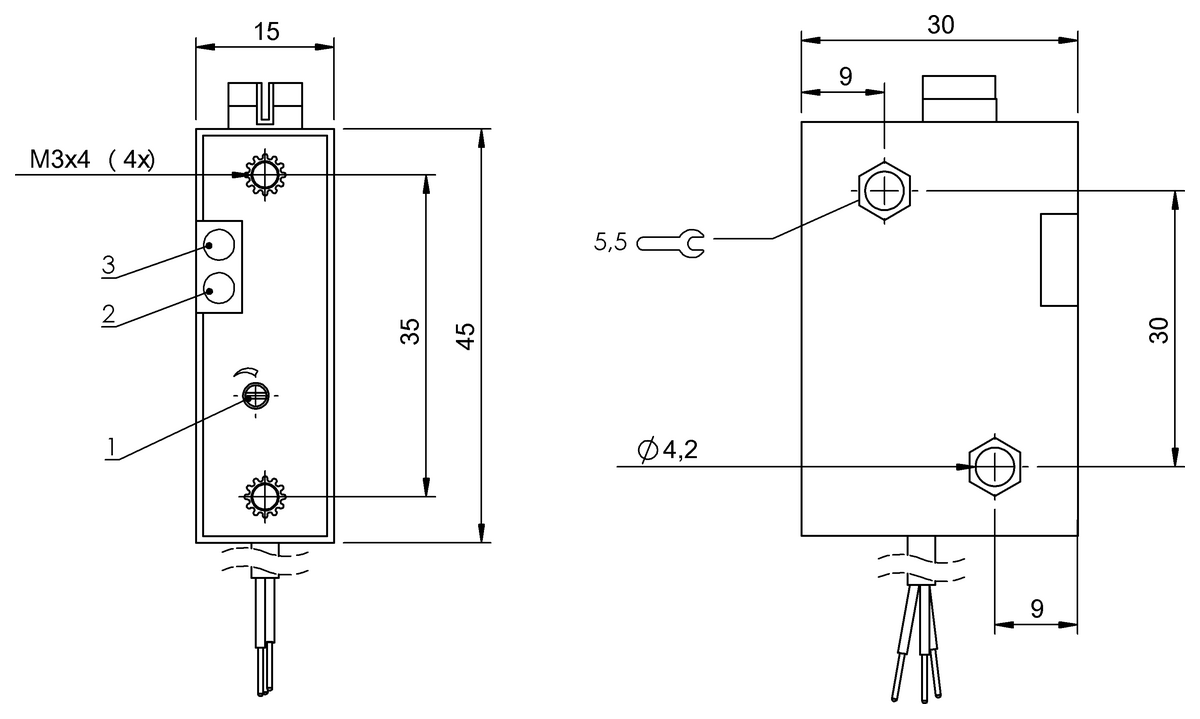

Dimension
15 x 30 x 45 mm
Connection
Cable, 2.00 m, PUR
Switching output
NPN normally open (NO)
Switching frequency
100 Hz
Housing material
PC
Recommended successor products
BAE00KH
Amplifiers for capacitive sensor heads
BAE SA-CS-025-YP-BP02
Estimated vailability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
| BAE SA-CS-001-NS | BAE SA-CS-025-YP-BP02 | |
|
-
List price
|
757.13 CNY
List price
|
|
| Dimension | 15 x 30 x 45 mm | 10.5 x 45 x 75.5 mm |
|---|---|---|
| Connection | Cable, 2.00 m, PUR | Cable, 2.00 m, PUR |
| Switching output | NPN normally open (NO) | PNP/NPN NO/NC programmable |
| Switching frequency | 100 Hz | 100 Hz |
| Housing material | PC | PBT |
| Ambient temperature | -30...70 °C | -10...70 °C |
| Operating voltage Ub | 12...35 VDC | 12...30 VDC |
| Approval/Conformity |
CE WEEE |
CE UKCA cULus WEEE |
| IP rating | IP67 | IP40 |
