Displays
Function
Single-axis counter
Inputs, number
4
Outputs, number
2
Digital outputs
2x PNP
Encoder supply
5 V/24 V, max 150 mA
Recommended successor products
BAE010L
Displays
BDD 750-4D02-000-402-2-A
Estimated vailability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
Discontinued
|
Discontinued
Recommended alternative
|
|
|
|
|
|

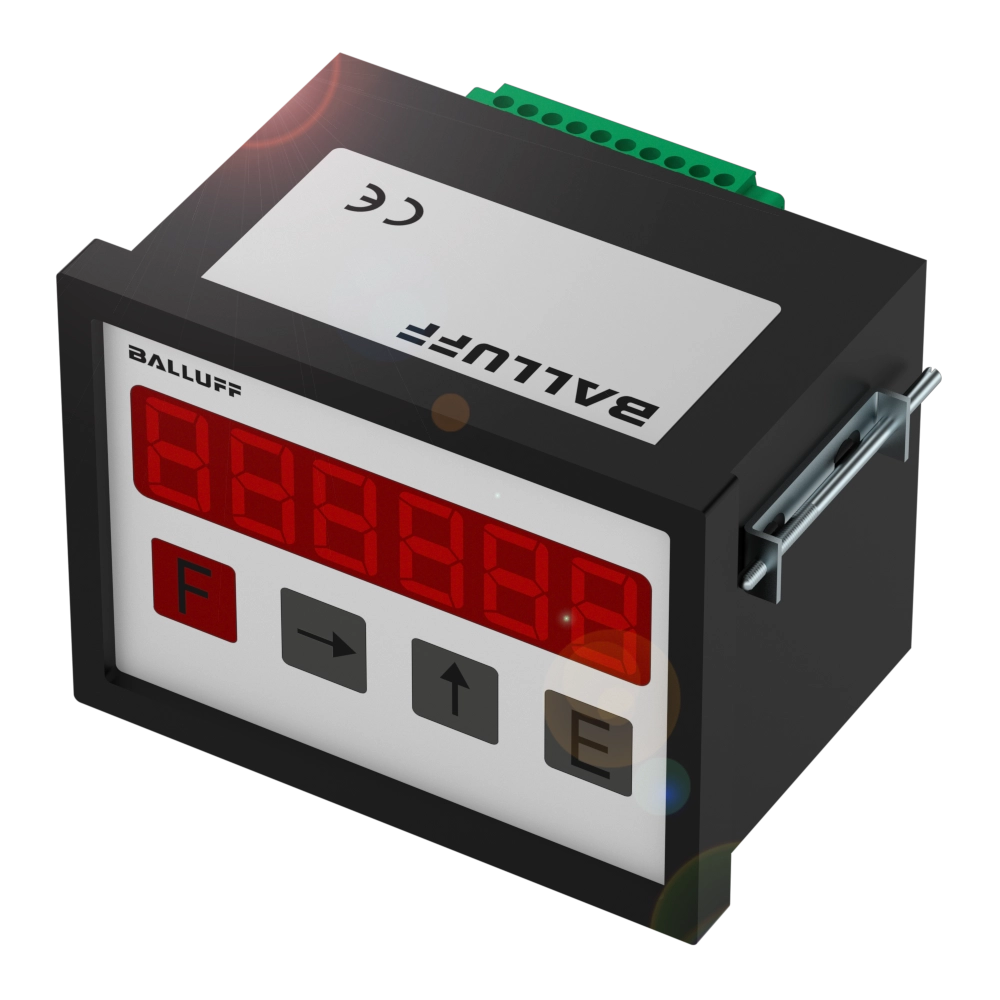

BAE004KBDD 611-R3Q4-0-52-N-003,089.10 CNY |
BAE010LBDD 750-4D02-000-402-2-A- |
|
| Function | Single-axis counter | Single-axis counter |
|---|---|---|
| Inputs, number | 4 | 4 |
| Outputs, number | 2 | 4 |
| Digital outputs | 2x PNP | 4x PNP |
| Encoder supply | 5 V/24 V, max 150 mA | 5 V/24 V, max 250 mA |
| Ambient temperature | 0...40 °C | -20...60 °C |
| IP rating (front housing) | IP42 | IP65 |
| Approval/Conformity |
CE WEEE |
CE UKCA WEEE |
| Panel cut-out | 68 x 92 mm | 43 x 91 mm |
