Canceled

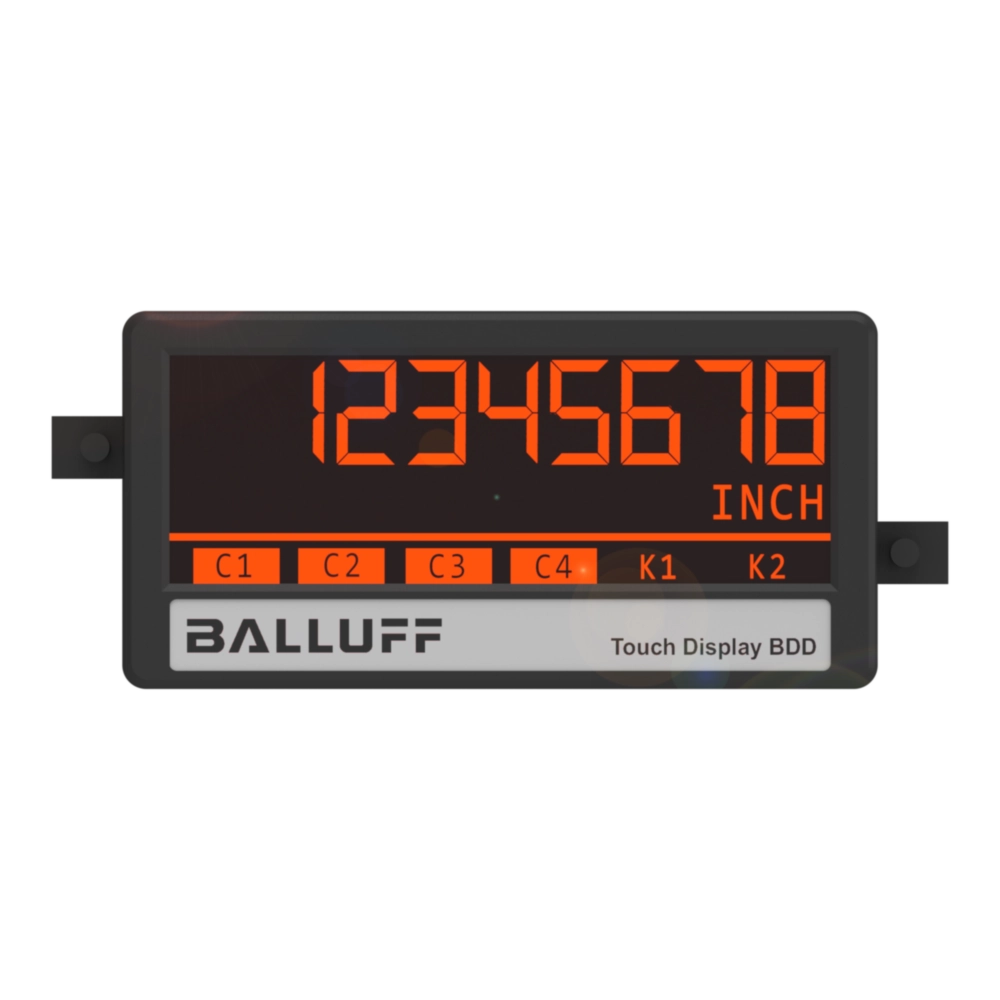

BAE010L

BDD 750-4D02-000-402-2-A

Displays

Function
Single-axis counter
Operating voltage Ub
18...30 VDC
Inputs, number
4
Input frequency max.
1 MHz
Outputs, number
4
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

Quantity scale

Contact request
Key features
Function
Single-axis counter
Operating voltage Ub
18...30 VDC
Inputs, number
4
Input frequency max.
1 MHz
Outputs, number
4
Digital outputs
4x PNP
Encoder supply
5 V/24 V, max 250 mA
Ambient temperature
-20...60 °C
IP rating (front housing)
IP65
Approval/Conformity
CE
UKCA
WEEE
Panel cut-out
43 x 91 mm
Classifications
ECLASS 10.1
27-33-01-91
ECLASS 11.0
27-33-01-91
ECLASS 12.0
27-33-02-01
ECLASS 13.0
27-33-02-01
ECLASS 14.0
27-33-02-01
ECLASS 4.1
27-37-12-00
ECLASS 5.1.4
27-33-91-90
ECLASS 6.2
27-33-91-90
ECLASS 8.1
27-33-91-90
ECLASS 9.0
27-33-01-91
ECLASS 9.1
27-33-01-91
ETIM 7.0
EC011541
ETIM 8.0
EC011541
UNSPSC 11
39100000
UNSPSC 7.0901
39100000
