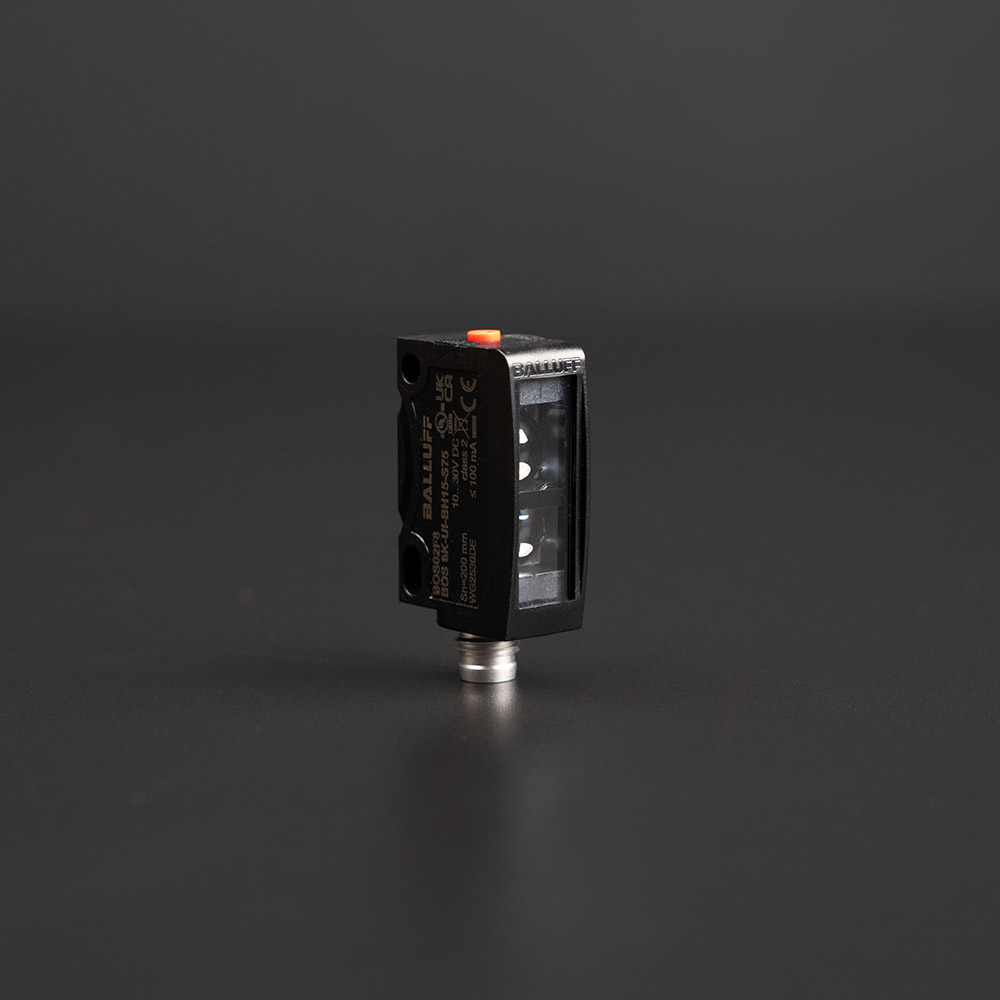

BOS 6K family
Available in:
61 versions
Cubic midi sensors with all relevant principle of optical operation and light types including laser, blue light and time-of-flight technology.
Identical housing shape for all functional principles: small and space-saving for use in tight installation spaces.
IO-Link for all: simple integration and uniform operating concept
Genuine PNP and NPN switching function combined in one device: reduced stock-keeping and fewer variants
Variants with blue light for detection of difficult objects
TOF variants for excellent object detection at long distances
Powerful contrast and color sensors in miniature design
Proven red light and laser sensors for standard applications
Availability
61 versions
|
Order code
|
Price | Principle of optical operation | Dimension | Interface | Range | Light type | Connection | Light type | Actions |
|---|---|---|---|---|---|---|---|---|---|
|
1737.84 CNY
Please login for individual prices.
|
Retroreflective sensor | 12 x 34 x 21.6 mm |
IO-Link-Device: 1.1.3 PNP/NPN/IO-Link: NO/NC |
0...4 m | Laser red light | Connector, M8x1-Male, 4-pin | Laser red light | ||
|
1737.84 CNY
Please login for individual prices.
|
Retroreflective sensor | 12 x 34 x 21.6 mm | PNP/NPN normally open/normally closed (NO/NC) | 0...4 m | Laser red light | Connector, M8x1-Male, 3-pin | Laser red light | ||
|
731.68 CNY
Please login for individual prices.
|
Through-beam sensor (Emitter) | 12 x 41 x 21.6 mm | 0...13 m | LED, red light | Connector, M8x1-Male, 3-pin | LED, red light | |||
|
1820.16 CNY
Please login for individual prices.
|
Diffuse sensor | 12 x 34 x 21.6 mm |
IO-Link-Device: 1.1.3 PNP/NPN/IO-Link: NO/NC |
4...150 mm | Laser red light | Connector, M8x1-Male, 4-pin | Laser red light | ||
|
1463.44 CNY
Please login for individual prices.
|
FixFokus | 12 x 34 x 21.6 mm | PNP normally open/normally closed (NO/NC) | 0...80 mm | LED Blue light | Connector, M8x1-Male, 4-pin | LED Blue light | ||
|
1692.08 CNY
Please login for individual prices.
|
Diffuse sensor | 12 x 34 x 21.6 mm | PNP/NPN normally open/normally closed (NO/NC) | 1...250 mm | Laser red light | Connector, M8x1-Male, 3-pin | Laser red light | ||
|
1097.6 CNY
Please login for individual prices.
|
Retroreflective sensor | 12 x 34 x 21.6 mm | PNP/NPN normally open/normally closed (NO/NC) | 0.1...6 m | LED, red light | Connector, M8x1-Male, 3-pin | LED, red light | ||
|
1051.84 CNY
Please login for individual prices.
|
Diffuse sensor | 12 x 34 x 21.6 mm | PNP/NPN normally open/normally closed (NO/NC) | 0...800 mm | LED, red light | Connector, M8x1-Male, 3-pin | LED, red light | ||
|
3099.12 CNY
Please login for individual prices.
|
Light time-of-flight | 12 x 34 x 21.6 mm |
IO-Link-Device: 1.1.4 Analog, voltage: 1…10 V/3 mA PNP/NPN/Auto-Detect: NO/NC |
100...1500 mm | Laser red light | Connector, M8x1-Male, 4-pin | Laser red light | ||
|
1326.24 CNY
Please login for individual prices.
|
Diffuse sensor | 12 x 34 x 21.6 mm |
IO-Link-Device: 1.1.3 PNP/NPN/IO-Link: NO/NC |
1...200 mm | LED, red light | Cable, 2 m, PVC | LED, red light |
