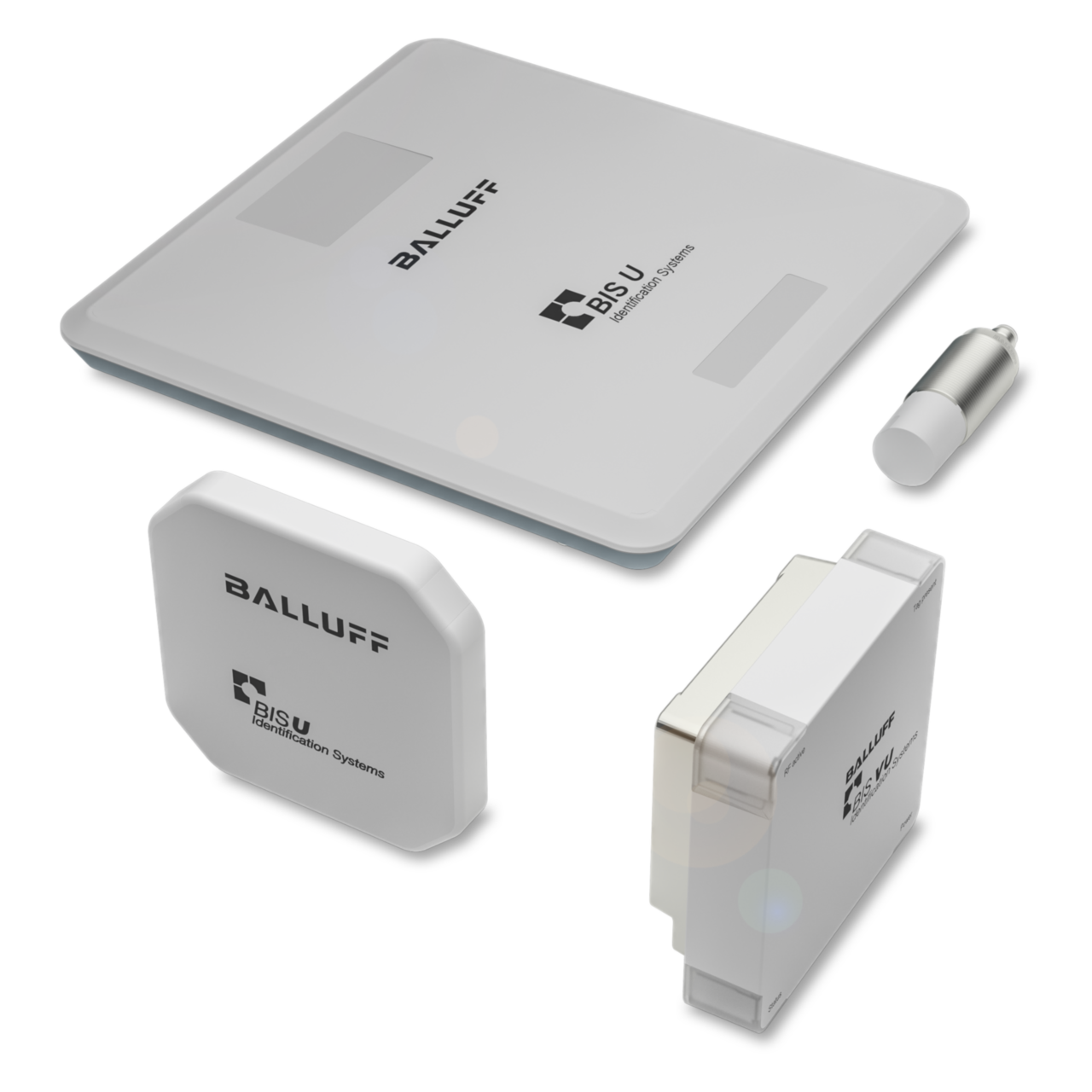

UHF RFID readers (860...930 MHz)
UHF RFID system BIS U
Available in:
2 Series
Our UHF readers and antennas are scalable and allow identification tasks to be flexibly designed and implemented, for example in conveyor lines or at gates. They are available in different versions for various ranges and applications. The range depends on the reader or antenna/tag combination used and the configuration of the processor unit.
Our UHF readers with integrated processor unit are the mediators between the data carrier and the PC or controller. Their advantage is that as the antenna, electronics and interface are located in one housing, there is no need for an additional evaluation unit. In addition, the simple integration saves a lot of installation work.
Features
- Variants for regional frequency ranges: EU (865...868 MHz), US (902...928 MHz), CN (920.5...924.5 MHz)
- Reliable use in harsh environments thanks to robust housing up to protection class IP69k
- Status displays directly on the RFID reader for easy commissioning and minimized downtimes
- IO-Link interface for connection to BNI master for UHF readers with integrated processor unit
- Quick and easy commissioning and configuration via auto-setup function or, depending on the model, via IO-Link interface
- Connection via coaxial cable (up to 10 m) or M12 plug connector with cable length up to 50 m
- Circular polarization for data carriers that can be detected largely independent of position
- Reading ranges of up to 6 m and more possible
- Connection of up to four readers to the BIS V evaluation units
- Connection of up to four antennas to the BIS U-602x evaluation units
2 Series
|
Series
|
Style Housing | Housing material primary | Antenna type | IP rating | Formfactor | Actions |
|---|---|---|---|---|---|---|
| block style, M30x1.5 | Aluminium, Nickel-plated brass | Patch | IP67, IP65 | M30x1.5 | ||
| M30x1.5 | 1.4404 stainless steel | Planar | IP68, IP69K | M30x1.5 |
