Similar Illustration
Only CAD model download is supported

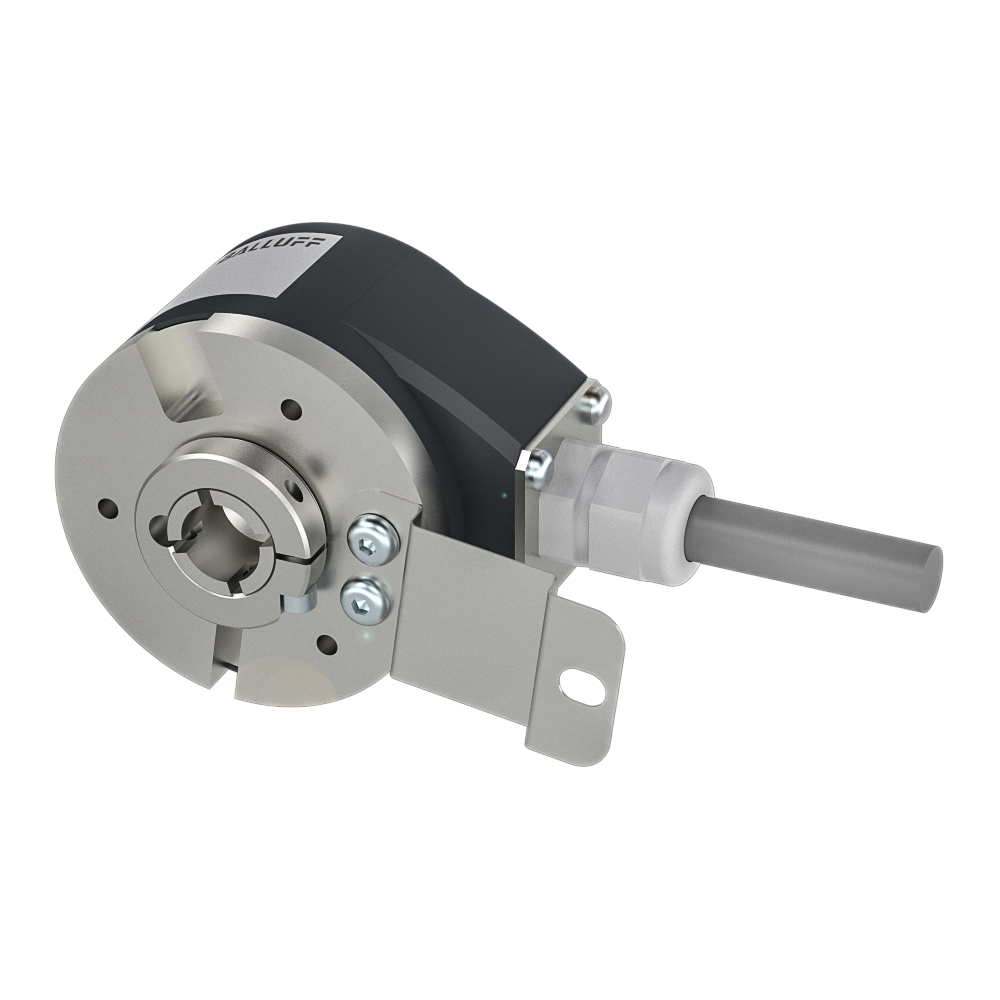

Absolute encoders
Flange type
End hollow shaft
Interface
RS485
Flange diameter
58 mm
Approval/Conformity
CE
cULus
WEEE
UKCA
cULus
WEEE
UKCA
Ambient temperature
-40…85 °C
Product configuration
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Only CAD model download is supported
Product variants from customer configurations
BDG0414
BDG FB058-BC12-DPGA2-0131-AF20-00R1
BDG042Y
BDG FB058-BC12-DPGA2-0923-AF20-00R1
BDG04PM
BDG FB058-BC12-DPGA2-1200-0000-S8R1
BDG04L3
BDG FB058-BC12-DPGA2-1212-AF20-00R1
BDG03PL
BDG FB058-BC12-DPGA2-1616-0000-S8R1
BDG03PE
BDG FB058-BC12-DPGA5-1200-AF50-00R1
BDG03PF
BDG FB058-BC12-DPGA5-1200-AFA0-00R1
BDG03PH
BDG FB058-BC12-DPGA5-1400-AFA0-00R1
BDG03PJ
BDG FB058-BC12-DPGA5-1600-AFA0-00R1
BDG0405
BDG FB058-BC14-DPGA2-1616-AF50-00R1
BDG048N
BDG FB058-BC15-DPGA2-0131-AF20-00R1
BDG02M2
BDG FB058-BC15-DPGA2-1616-AF20-00R1
BDG04LR
BDG FB058-BCS3-DPGA2-1212-AF50-00R1
