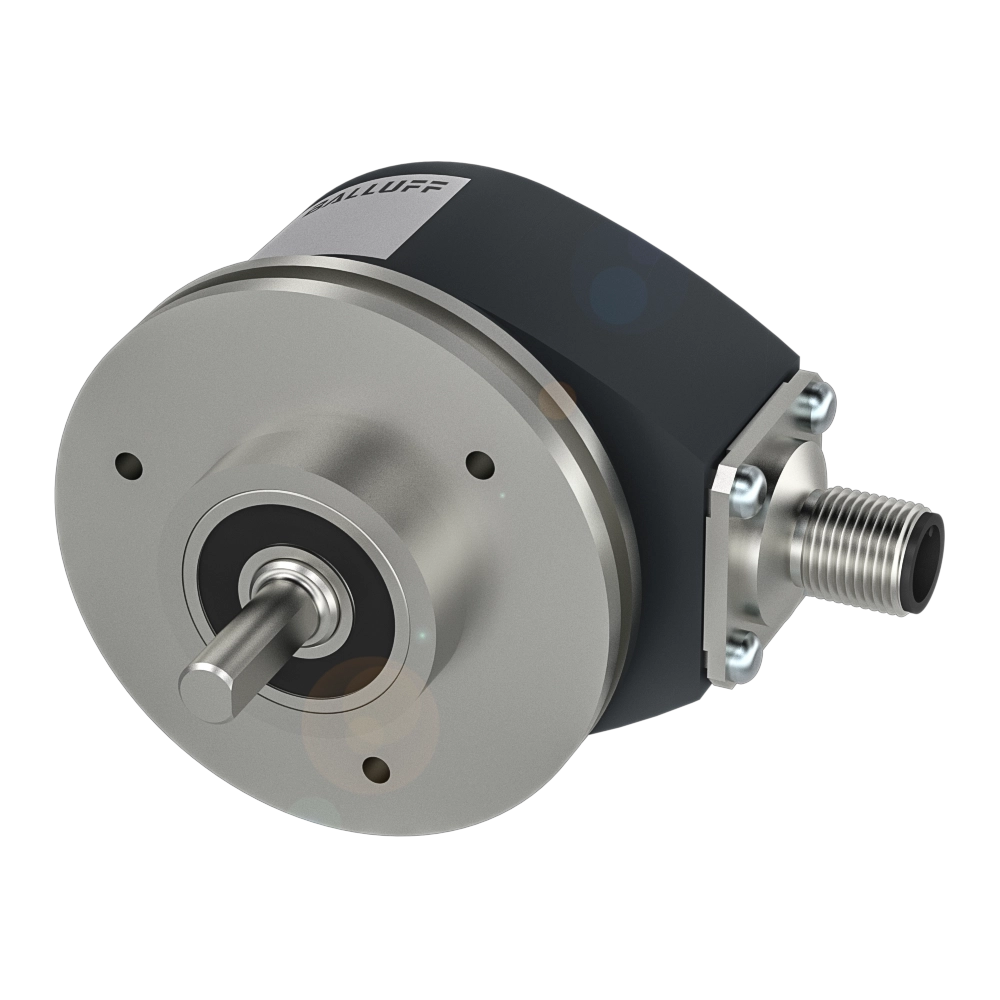

Incremental encoders
Ambient temperature
g = A: -10…70 °C
Connector version: -40…85 °C
Cable version: -20…80 °C
Connector version: -40…85 °C
Cable version: -20…80 °C
Approval/Conformity
CE
cULus
WEEE
UKCA
cULus
WEEE
UKCA
Flange diameter
63 mm
Flange type
Clamping flange
IP rating
dd = SA:
Housing: IP65, IP67
Shaft entrance: IP65
dd = PA:
IP67
Housing: IP65, IP67
Shaft entrance: IP65
dd = PA:
IP67
Product configuration
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Only CAD model download is supported
Product variants from customer configurations
BDG04Y3
BDG EB663-PA08-QCAM1-2000-AB20-00H5
BDG052U
BDG EB663-SA10-QCAK1-1024-0000-S8H3
BDG04N6
BDG EB663-SA10-QCNK1-1024-0000-S8H3
BDG04Y7
BDG EB663-SAP3-QQNK5-2500-0000-SCTB
