BVS002F

BVS SC-C1280Z00-30-000

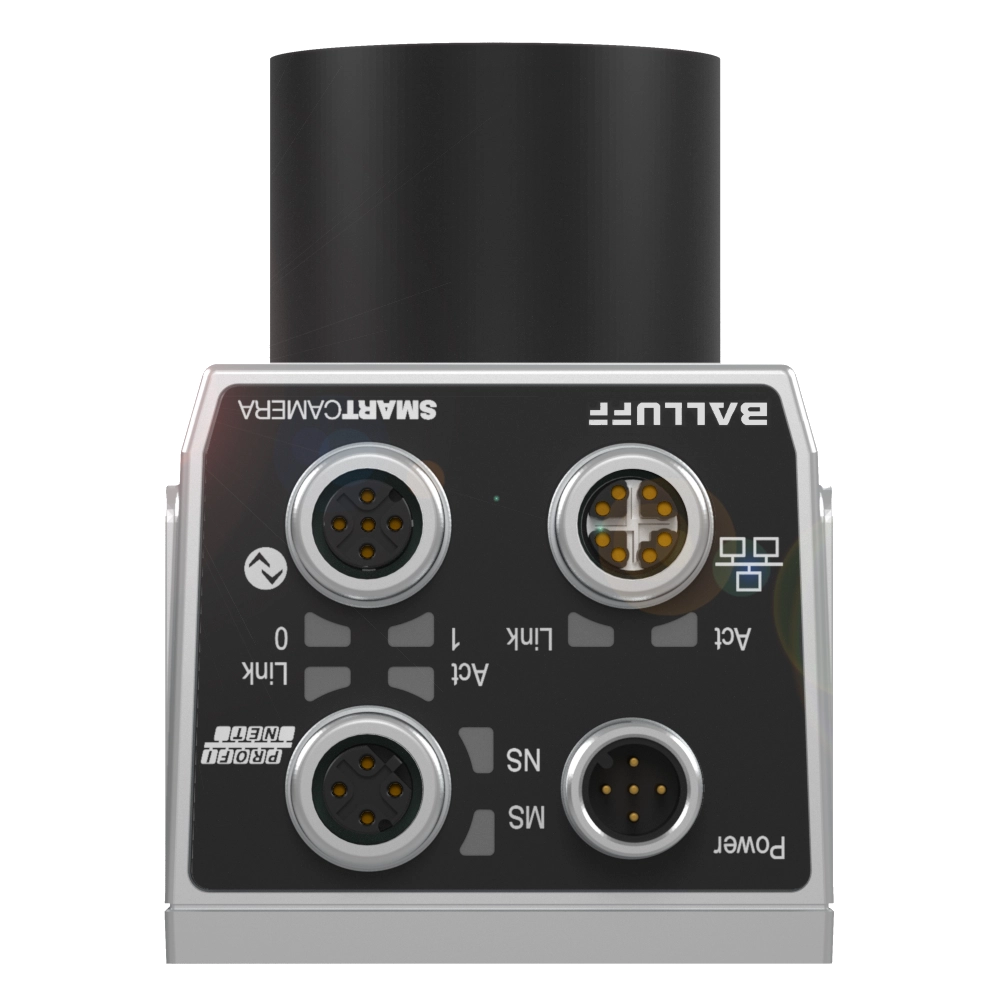

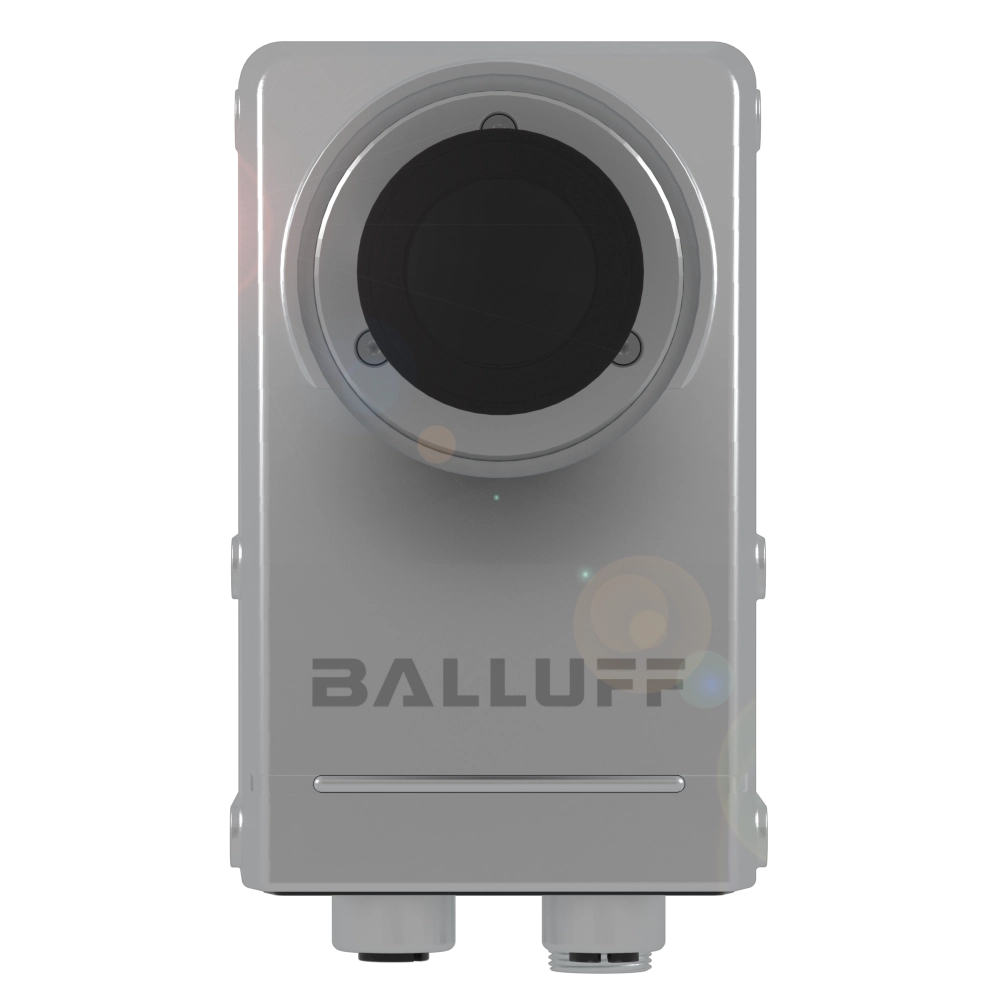

SmartCamera for machine vision

Application
Object tracking
code+text analysis
Object verification
Approval/Conformity
CE
UKCA
cULus
WEEE
Image resolution
1.3 MP(1280 x 1024 pixels)
Sensor type Vision
CMOS 1/1,8" color global shutter
Ambient temperature
0...55 °C
Do you have any questions about the product? Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

Quantity scale

Contact request
Key features
Application
Object tracking
code+text analysis
Object verification
Approval/Conformity
CE
UKCA
cULus
WEEE
Image resolution
1.3 MP(1280 x 1024 pixels)
Sensor type Vision
CMOS 1/1,8" color global shutter
Ambient temperature
0...55 °C
Dimension
62 x 55 x 110 mm
Housing material
Aluminium, Painted
Interface
LAN (Gigabit Ethernet); Profinet / EtherNet/IP; IO-Link
Operating voltage Ub
19.2...28.8 VDC
IP rating
IP67, with protective tube
Switching output
2x IO configurable
Classifications
ECLASS 10.1
27-31-02-01
ECLASS 11.0
27-31-02-01
ECLASS 12.0
27-31-02-01
ECLASS 13.0
27-31-02-01
ECLASS 14.0
27-31-02-01
ECLASS 4.1
27-31-02-03
ECLASS 5.1.4
27-31-02-01
ECLASS 6.2
27-31-02-01
ECLASS 8.1
27-31-02-01
ECLASS 9.0
27-31-02-01
ECLASS 9.1
27-31-02-01
ETIM 4.0
EC001820
ETIM 5.0
EC001820
ETIM 6.0
EC001820
ETIM 7.0
EC001820
ETIM 8.0
EC001820
UNSPSC 11
43211718
UNSPSC 7.0901
43211718
Videos
Balluff BVS SmartCamera EtherNet/IP Hardware Configuration in RSLogix5000
Balluff BVS SmartCamera Profinet Hardware Configuration in TIA
BVS Cockpit SmartCamera Basics: How to connect and update firmware
