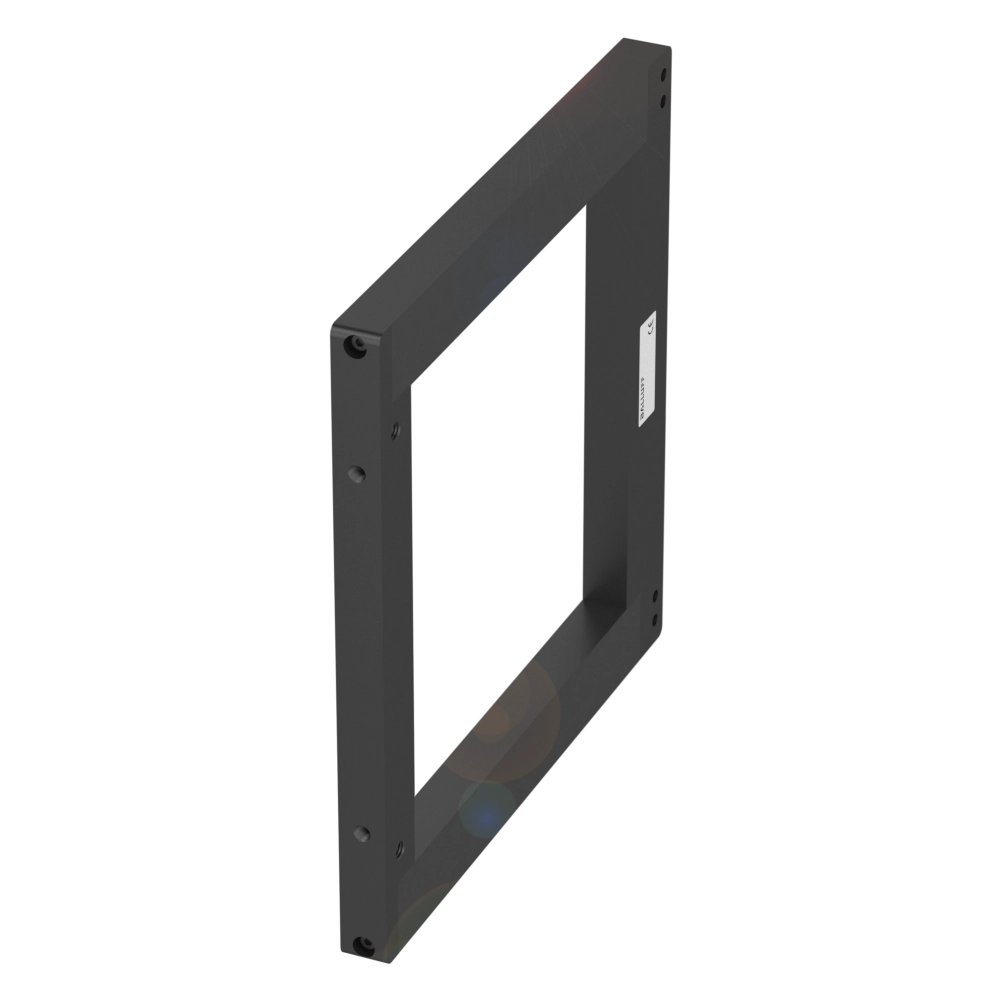

Optical window sensor with dynamic output for falling objects
Series
A

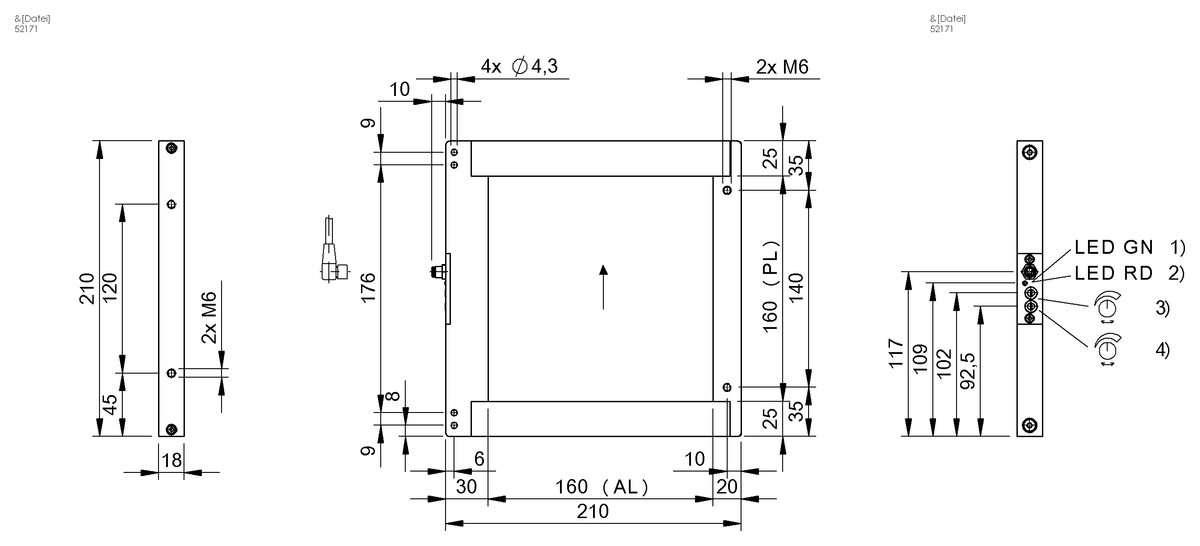

Dimension
18 x 210 x 220 mm
Active window (PL x AL)
160 × 160 mm
Interface
PNP dynamic normally open (NO)
NPN dynamic normally open (NO)
NPN dynamic normally open (NO)
Principle of operation
Optical window sensor
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
|
|
|
|
|
BOW004LBOW A-1616-DS-C-S757,422.53 CNY |
BOW004JBOW A-1216-DS-C-S756,771.38 CNY |
|
| Series | A | A |
|---|---|---|
| Dimension | 18 x 210 x 220 mm | 18 x 170 x 220 mm |
| Active window (PL x AL) | 160 × 160 mm | 120 × 160 mm |
| Interface |
PNP dynamic normally open (NO) NPN dynamic normally open (NO) |
PNP dynamic normally open (NO) NPN dynamic normally open (NO) |
| Principle of operation | Optical window sensor | Optical window sensor |
| Principle of optical operation | Through-beam sensor | Through-beam sensor |
| Beam characteristic | Divergent | Divergent |
| Light type | Infrared | Infrared |
| Connection | Connector, M8x1-Male, 4-pin | Connector, M8x1-Male, 4-pin |
| Housing material | Aluminium, anodized, black | Aluminium, anodized, black |
| Material sensing surface | PMMA | PMMA |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE UKCA WEEE |
CE UKCA WEEE |
