Optical window sensor with dynamic output for falling objects
Series
A

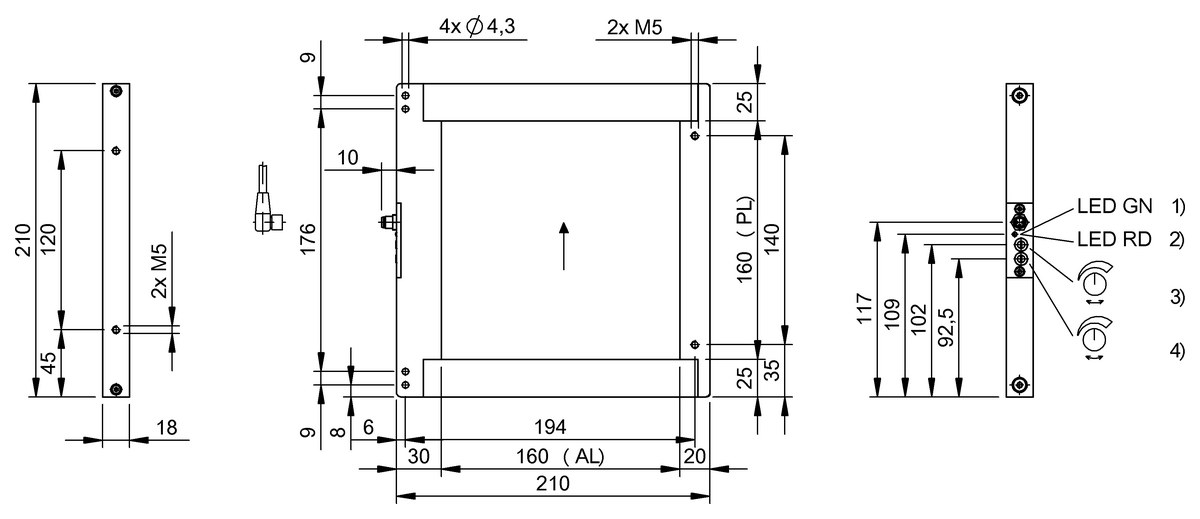

Dimension
18 x 210 x 220 mm
Active window (PL x AL)
160 × 160 mm
Interface
PNP dynamic normally open (NO)
Principle of operation
Optical window sensor
Do you have any questions about the product?
Alternative products
|
|
Alternative
|
|
|
|
|
|
BOW002JBOW A-1616-PS-C-S497,312.95 CNY |
BOW004LBOW A-1616-DS-C-S757,422.53 CNY |
|
| Series | A | A |
|---|---|---|
| Dimension | 18 x 210 x 220 mm | 18 x 210 x 220 mm |
| Active window (PL x AL) | 160 × 160 mm | 160 × 160 mm |
| Interface | PNP dynamic normally open (NO) |
PNP dynamic normally open (NO) NPN dynamic normally open (NO) |
| Principle of operation | Optical window sensor | Optical window sensor |
| Principle of optical operation | Through-beam sensor | Through-beam sensor |
| Beam characteristic | Divergent | Divergent |
| Light type | Infrared | Infrared |
| Connection | Connector, M8x1-Male, 3-pin | Connector, M8x1-Male, 4-pin |
| Housing material | Aluminium, anodized, black | Aluminium, anodized, black |
| Material sensing surface | PMMA | PMMA |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE UKCA WEEE |
CE UKCA WEEE |
