Diffuse sensors
Series
5K
Dimension
10.8 x 32.7 x 19.5 mm
Interface
PNP normally open/normally closed (NO/NC)
Principle of operation
Photoelectric sensor
Principle of optical operation
Diffuse sensor, triangulation
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
|
|
|
|
|
|

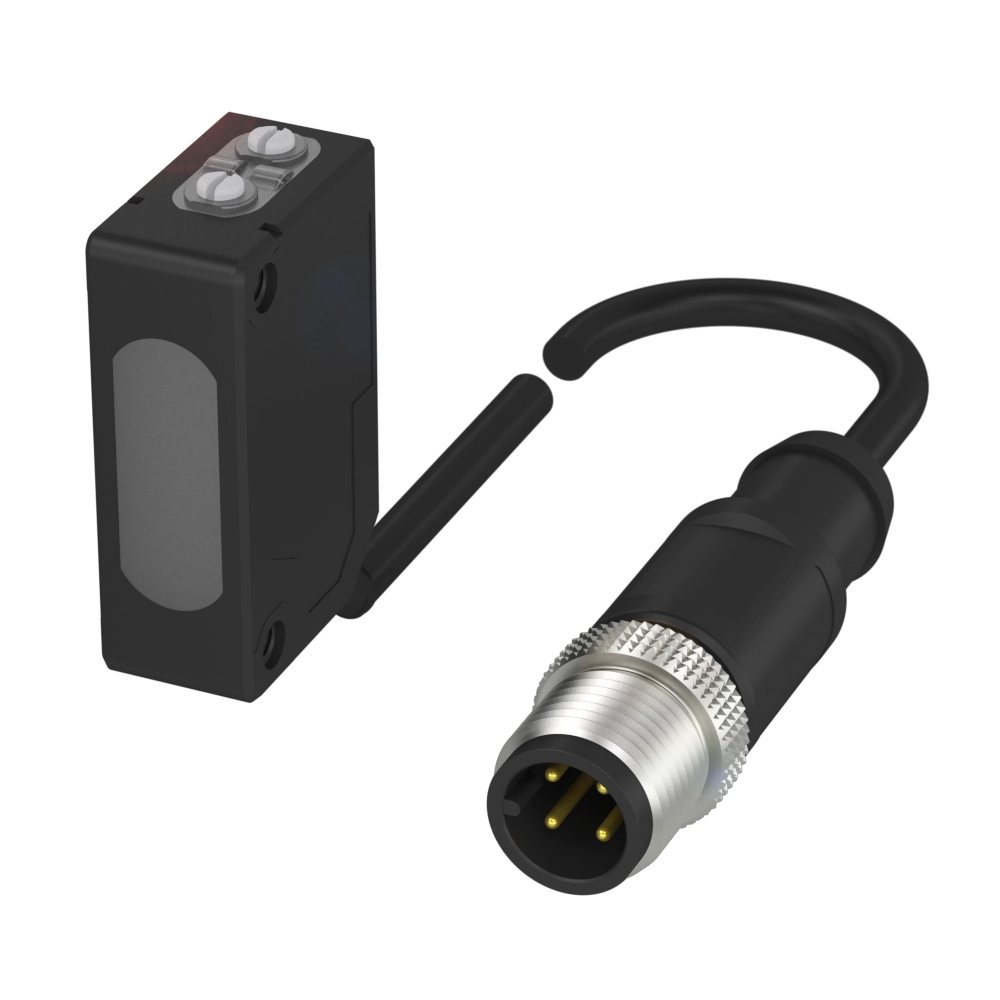

BOS 5K-PU-LH12-00,2-S4
1,169.40 CNY
List price
|
BOS 5K-PU-LH12-02
1,083.15 CNY
List price
|
|
| Series | 5K | 5K |
|---|---|---|
| Dimension | 10.8 x 32.7 x 19.5 mm | 10.8 x 32.7 x 19.5 mm |
| Interface | PNP normally open/normally closed (NO/NC) | PNP normally open/normally closed (NO/NC) |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, triangulation | Diffuse sensor, triangulation |
| Special optical feature | Background suppression | Background suppression |
| Beam characteristic | Focus, typical at 260 mm | Focus, typical at 260 mm |
| Light type | Laser red light | Laser red light |
| Light spot size | 0.2 x 0.3 mm at focal point | 0.2 x 0.3 mm at focal point |
| Range | 20...300 mm | 20...300 mm |
| Connection | Cable with connector, M12x1-Male, 4-pin, 0.20 m, PVC | Cable, 2.00 m, PVC |
| Housing material |
PC PBT |
PC PBT |
| Material sensing surface | PMMA | PMMA |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE UKCA WEEE |
cULus CE WEEE UKCA |
