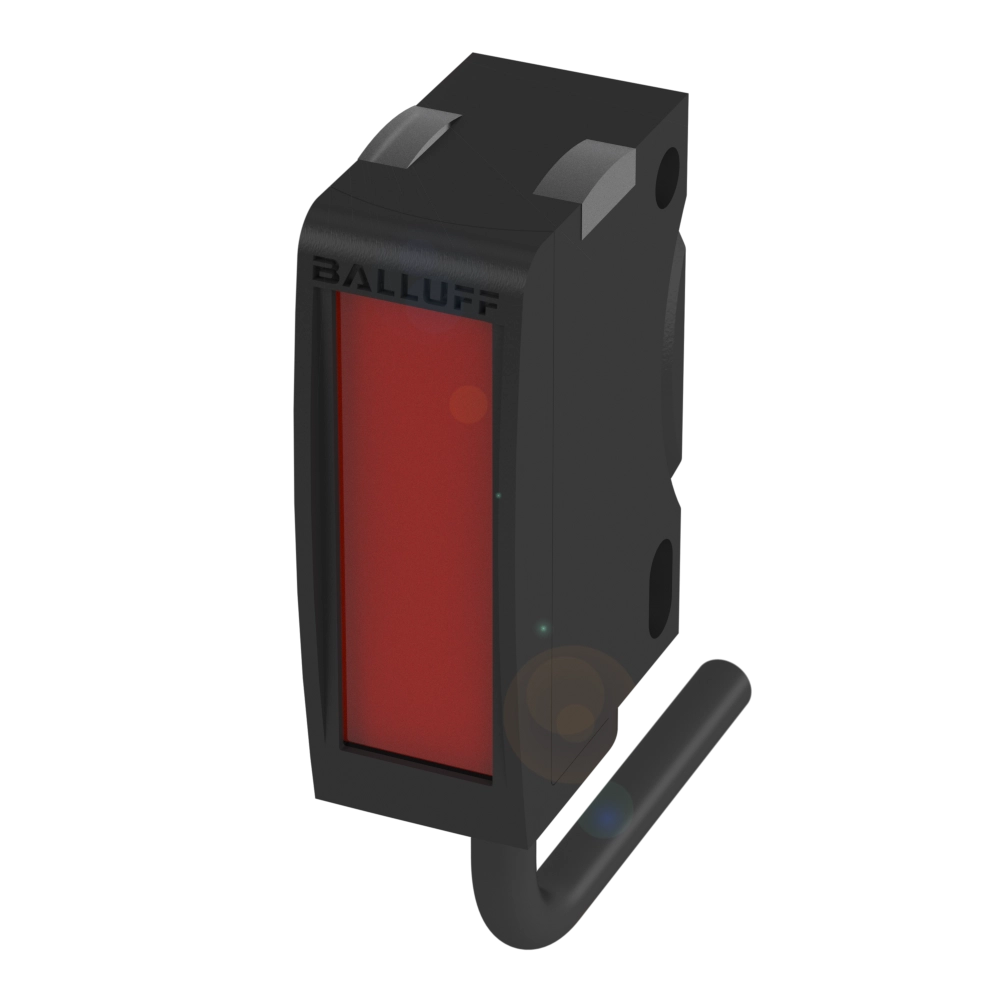

Cubic throughbeam photoelectric sensors with different types of light up to 18 m range
Special characteristics
Washdown
Series
6K

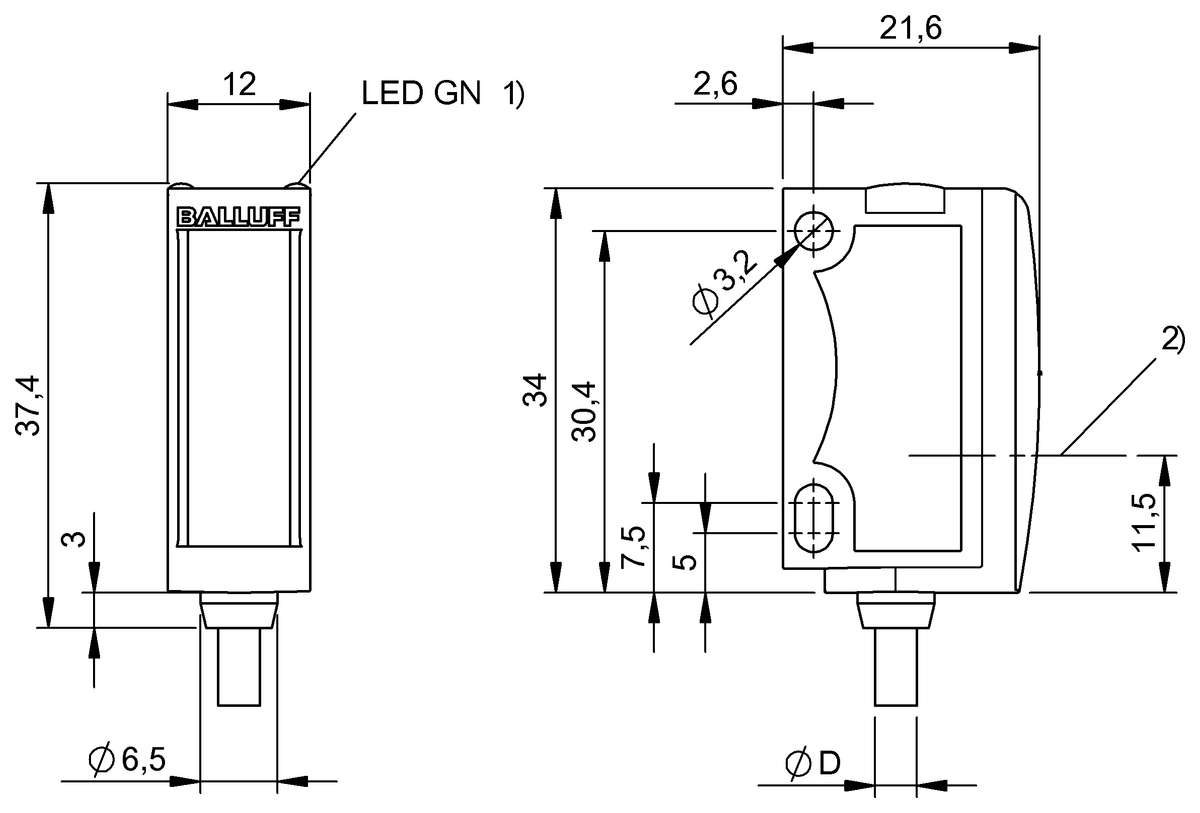

Dimension
12 x 34 x 21.6 mm
Interface
IO-Link-Device 1.1.3
Push-Pull/IO-Link
Push-Pull/IO-Link
Input function
Test input
Do you have any questions about the product?
Alternative products
|
|
Alternative
|
|
|
|
|
|
BOS02F4BOS 6K-XI-LS10-021,035.00 CNY |
BOS02F3BOS 6K-XI-LS10-S751,035.00 CNY |
|
| Special characteristics | Washdown | - |
|---|---|---|
| Series | 6K | 6K |
| Dimension | 12 x 34 x 21.6 mm | 12 x 34 x 21.6 mm |
| Interface |
IO-Link-Device 1.1.3 Push-Pull/IO-Link |
IO-Link-Device 1.1.3 Push-Pull/IO-Link |
| Input function | Test input | Test input |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Through-beam sensor (Emitter) | Through-beam sensor (Emitter) |
| Beam characteristic | Divergent | Divergent |
| Light type | Laser red light | Laser red light |
| Light spot size | 13 x 13 mm at 18 m | 13 x 13 mm at 18 m |
| Range | 0...18 m | 0...18 m |
| Connection | Cable, 2 m, PVC | Connector, M8x1-Male, 4-pin |
| Housing material | ABS | ABS |
| Material sensing surface | PMMA | PMMA |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE UKCA cULus WEEE Ecolab |
CE UKCA cULus WEEE |
