Similar Illustration

BOS02F1

Name: BOS02F1
Brand: Balluff
SKU: BOS02F1
Price: 1638.75 CNY
Availability: OutOfStock

BOS 6K-UI-LK10-02

Cubic retro-reflective photoelectric sensors with different types of light up to 13 m range

Special characteristics

Washdown

Series

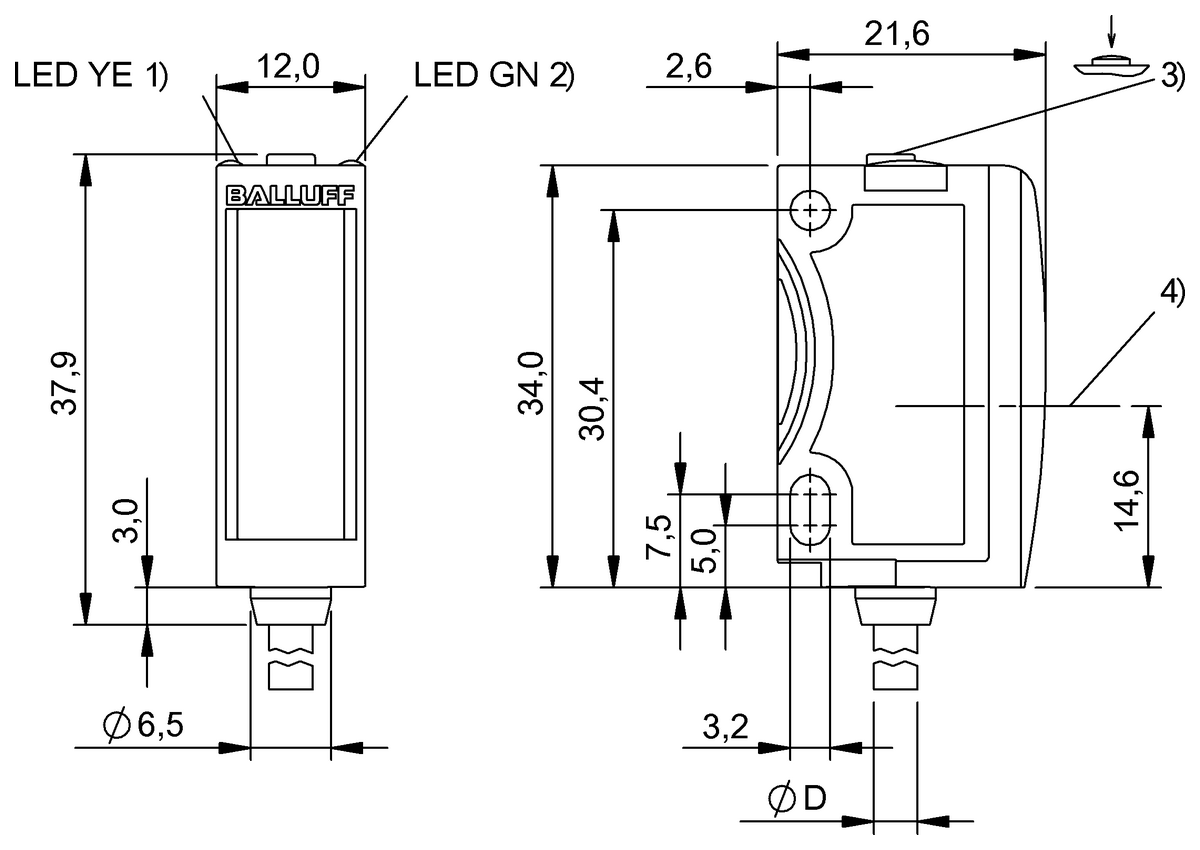

Dimension

12 x 34 x 21.6 mm

Interface

IO-Link-Device 1.1.3
PNP/NPN/IO-Link NO/NC

Input function

Key disable on/off
Same function as button

Do you have any questions about the product?

		Alternative

	BOS02F1 BOS 6K-UI-LK10-02 1,638.75 CNY	BOS02F0 BOS 6K-UI-LK10-S75 1,638.75 CNY
Special characteristics	Washdown	-
Series	6K	6K
Dimension	12 x 34 x 21.6 mm	12 x 34 x 21.6 mm
Interface	IO-Link-Device 1.1.3 PNP/NPN/IO-Link NO/NC	IO-Link-Device 1.1.3 PNP/NPN/IO-Link NO/NC
Input function	Key disable on/off Same function as button	Key disable on/off Same function as button
Principle of operation	Photoelectric sensor	Photoelectric sensor
Principle of optical operation	Retroreflective sensor, Autocollimation	Retroreflective sensor, Autocollimation
Light type	Laser red light	Laser red light
Light spot size	4 x 2 mm at 2 m	4 x 2 mm at 2 m
Range	0...4 m	0...4 m
Connection	Cable, 2 m, PVC	Connector, M8x1-Male, 4-pin
Housing material	ABS	ABS
Material sensing surface	PMMA	PMMA
Operating voltage Ub	10...30 VDC	10...30 VDC
Approval/Conformity	CE UKCA cULus WEEE Ecolab	CE UKCA cULus WEEE
