Similar Illustration

BOS02EM

Name: BOS02EM
Brand: Balluff
SKU: BOS02EM
Price: 1595.63 CNY
Availability: OutOfStock

BOS 6K-UI-LD10-S75

Cubic diffuse sensors with different types of light up to 1.5 m range

Series

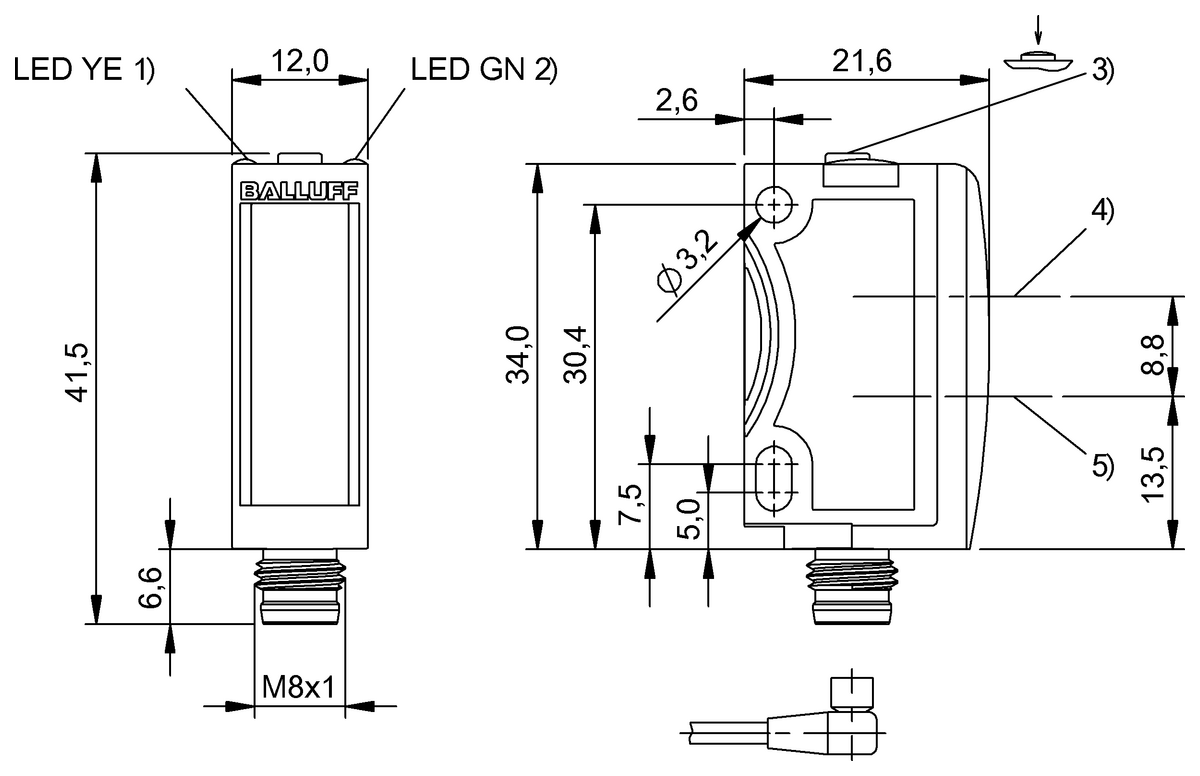

Dimension

12 x 34 x 21.6 mm

Interface

IO-Link-Device 1.1.3
PNP/NPN/IO-Link NO/NC

Input function

Key disable on/off
Same function as button

Principle of operation

Photoelectric sensor

Do you have any questions about the product?

		Alternative	Further alternative

	BOS02EM BOS 6K-UI-LD10-S75 1,595.63 CNY	BOS02EN BOS 6K-UI-LD10-02 1,595.63 CNY	BOS02EF BOS 6K-UI-LH10-S75 1,716.38 CNY
Series	6K	6K	6K
Dimension	12 x 34 x 21.6 mm	12 x 34 x 21.6 mm	12 x 34 x 21.6 mm
Interface	IO-Link-Device 1.1.3 PNP/NPN/IO-Link NO/NC	IO-Link-Device 1.1.3 PNP/NPN/IO-Link NO/NC	IO-Link-Device 1.1.3 PNP/NPN/IO-Link NO/NC
Input function	Key disable on/off Same function as button	Key disable on/off Same function as button	Key disable on/off Same function as button
Principle of operation	Photoelectric sensor	Photoelectric sensor	Photoelectric sensor
Principle of optical operation	Diffuse sensor, energetic	Diffuse sensor, energetic	Diffuse sensor, triangulation
Beam characteristic	Focused	Focused	Focused
Light type	Laser red light	Laser red light	Laser red light
Light spot size	0.7 x 0.7 mm at 250 mm	0.7 x 0.7 mm at 250 mm	1 x 1 mm at 150 mm
Range	1...250 mm	1...250 mm	4...150 mm
Connection	Connector, M8x1-Male, 4-pin	Cable, 2 m, PVC	Connector, M8x1-Male, 4-pin
Housing material	ABS	ABS	ABS
Material sensing surface	PMMA	PMMA	PMMA
Operating voltage Ub	10...30 VDC	10...30 VDC	10...30 VDC
Approval/Conformity	CE UKCA cULus WEEE	CE UKCA cULus WEEE Ecolab	CE UKCA cULus WEEE
