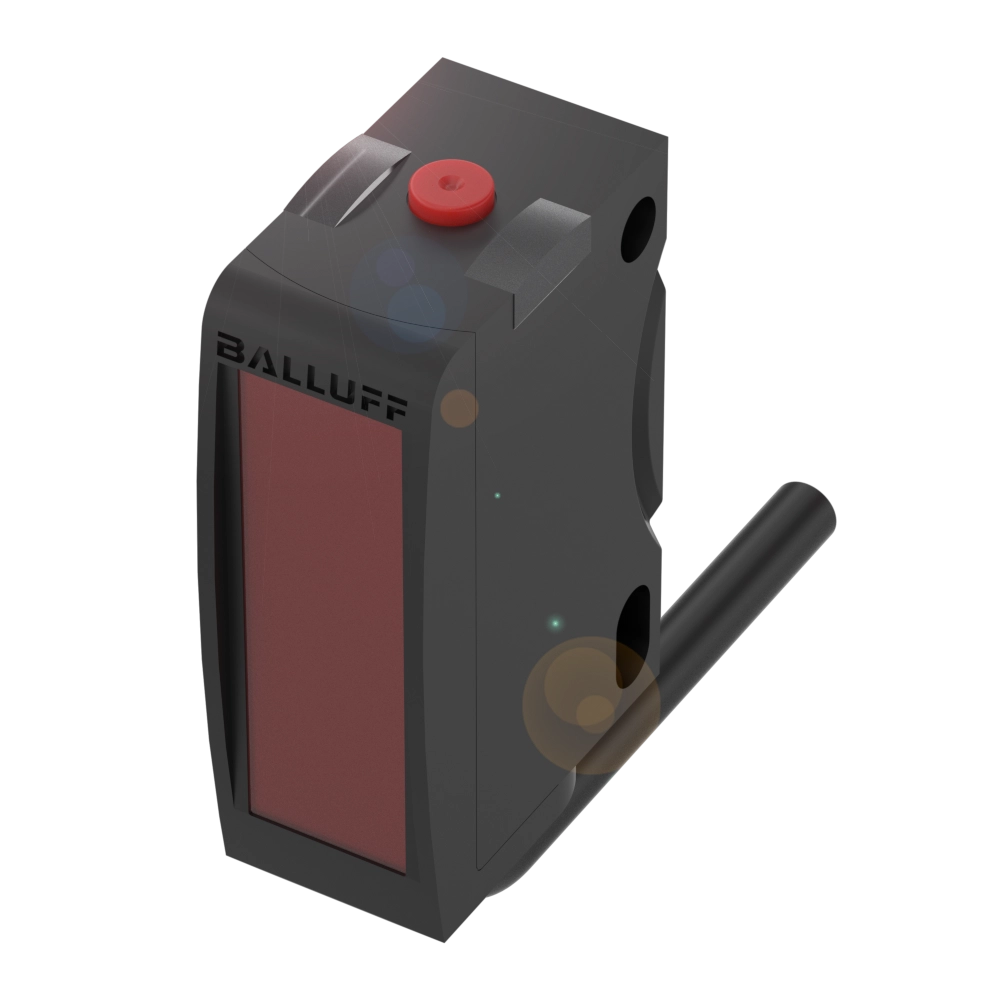

Cubic diffuse sensors with different types of light up to 1.5 m range
Special characteristics
Washdown
Series
6K

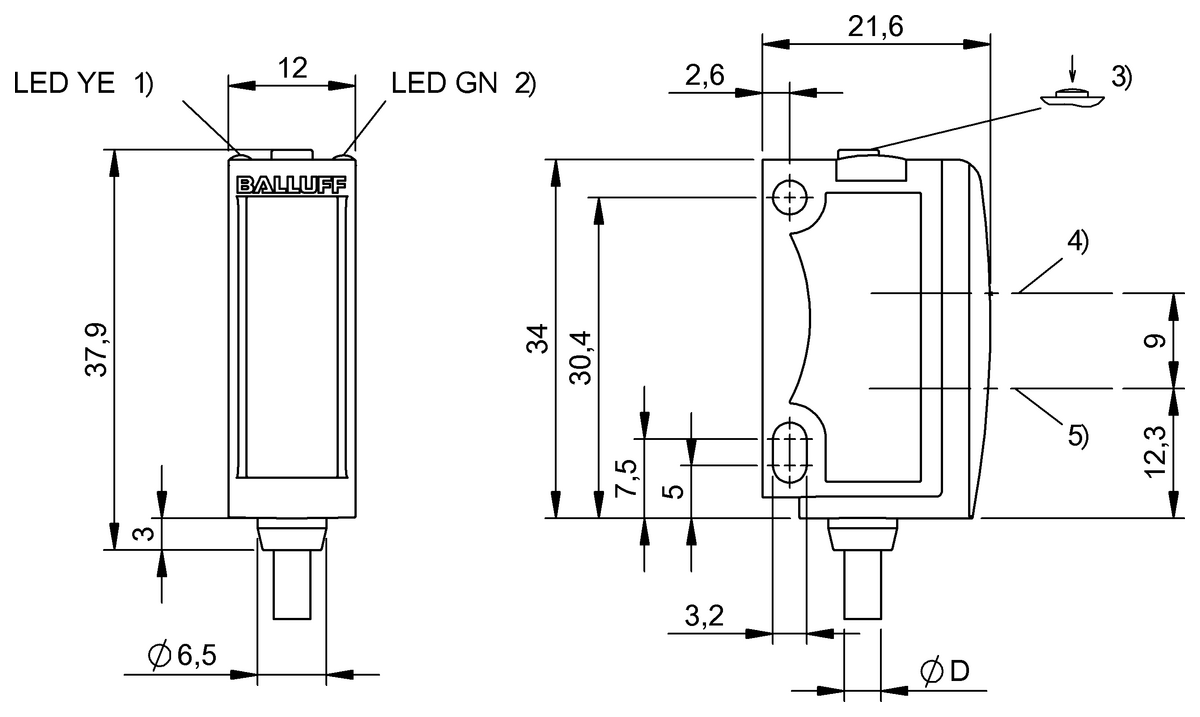

Dimension
12 x 34 x 21.6 mm
Interface
IO-Link-Device 1.1.3
PNP/NPN/IO-Link NO/NC
PNP/NPN/IO-Link NO/NC
Input function
Key disable on/off
Same function as button
Same function as button
Do you have any questions about the product?
Alternative products
|
|
Alternative
|
|
|
|
|
|
BOS02EHBOS 6K-UI-LH10-021,716.38 CNY |
BOS02EFBOS 6K-UI-LH10-S751,716.38 CNY |
|
| Special characteristics | Washdown | - |
|---|---|---|
| Series | 6K | 6K |
| Dimension | 12 x 34 x 21.6 mm | 12 x 34 x 21.6 mm |
| Interface |
IO-Link-Device 1.1.3 PNP/NPN/IO-Link NO/NC |
IO-Link-Device 1.1.3 PNP/NPN/IO-Link NO/NC |
| Input function |
Key disable on/off Same function as button |
Key disable on/off Same function as button |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, triangulation | Diffuse sensor, triangulation |
| Special optical feature | Background suppression | Background suppression |
| Beam characteristic | Focused | Focused |
| Light type | Laser red light | Laser red light |
| Light spot size | 1 x 1 mm at 150 mm | 1 x 1 mm at 150 mm |
| Range | 4...150 mm | 4...150 mm |
| Connection | Cable, 2 m, PVC | Connector, M8x1-Male, 4-pin |
| Housing material | ABS | ABS |
| Material sensing surface | PMMA | PMMA |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE UKCA cULus WEEE Ecolab |
CE UKCA cULus WEEE |
