Cubic diffuse sensors with different types of light up to 1.5 m range
Series
6K

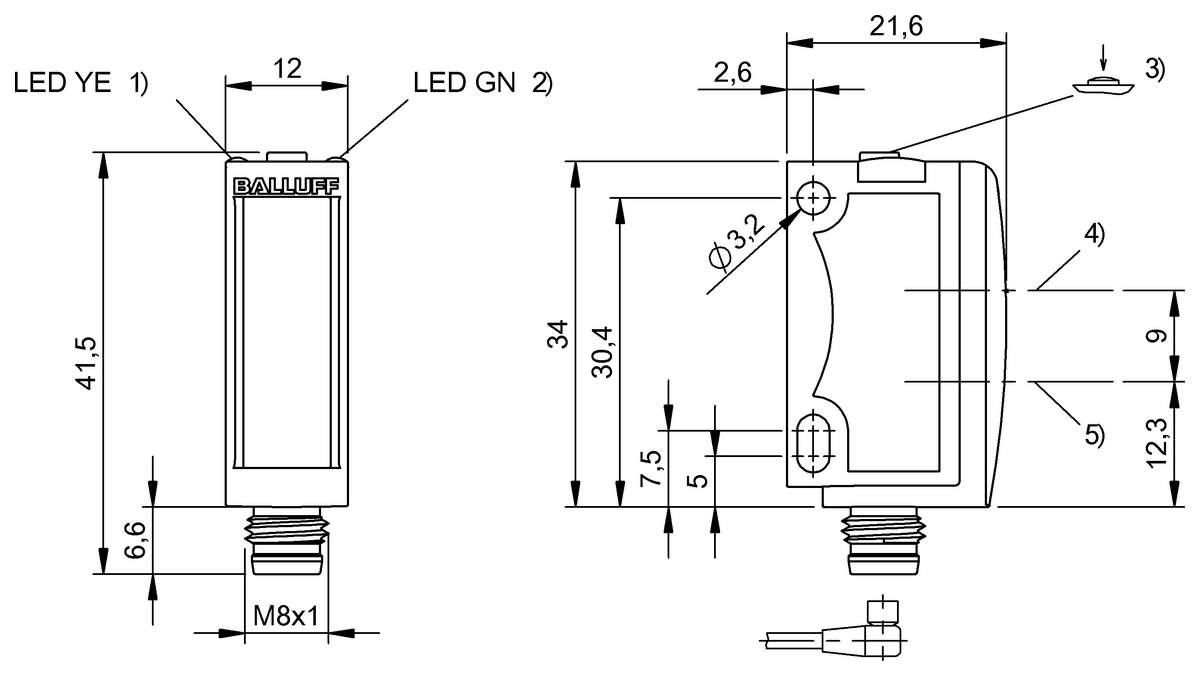

Dimension
12 x 34 x 21.6 mm
Interface
IO-Link-Device 1.1.3
PNP/NPN/IO-Link NO/NC
PNP/NPN/IO-Link NO/NC
Input function
Key disable on/off
Same function as button
Same function as button
Principle of operation
Photoelectric sensor
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
|
|
|
|
|
| BOS 6K-UI-LH10-S75 | BOS 6K-UI-LH10-02 | |
|
1,716.38 CNY
List price
|
1,716.38 CNY
List price
|
|
| Series | 6K | 6K |
|---|---|---|
| Dimension | 12 x 34 x 21.6 mm | 12 x 34 x 21.6 mm |
| Interface |
IO-Link-Device 1.1.3 PNP/NPN/IO-Link NO/NC |
IO-Link-Device 1.1.3 PNP/NPN/IO-Link NO/NC |
| Input function |
Key disable on/off Same function as button |
Key disable on/off Same function as button |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, triangulation | Diffuse sensor, triangulation |
| Special optical feature | Background suppression | Background suppression |
| Beam characteristic | Focused | Focused |
| Light type | Laser red light | Laser red light |
| Light spot size | 1 x 1 mm at 150 mm | 1 x 1 mm at 150 mm |
| Range | 4...150 mm | 4...150 mm |
| Connection | Connector, M8x1-Male, 4-pin | Cable, 2 m, PVC |
| Housing material | ABS | ABS |
| Material sensing surface | PMMA | PMMA |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE Ecolab |
