Cubic retro-reflective photoelectric sensors with different types of light up to 13 m range
Special characteristics
Washdown
Series
6K

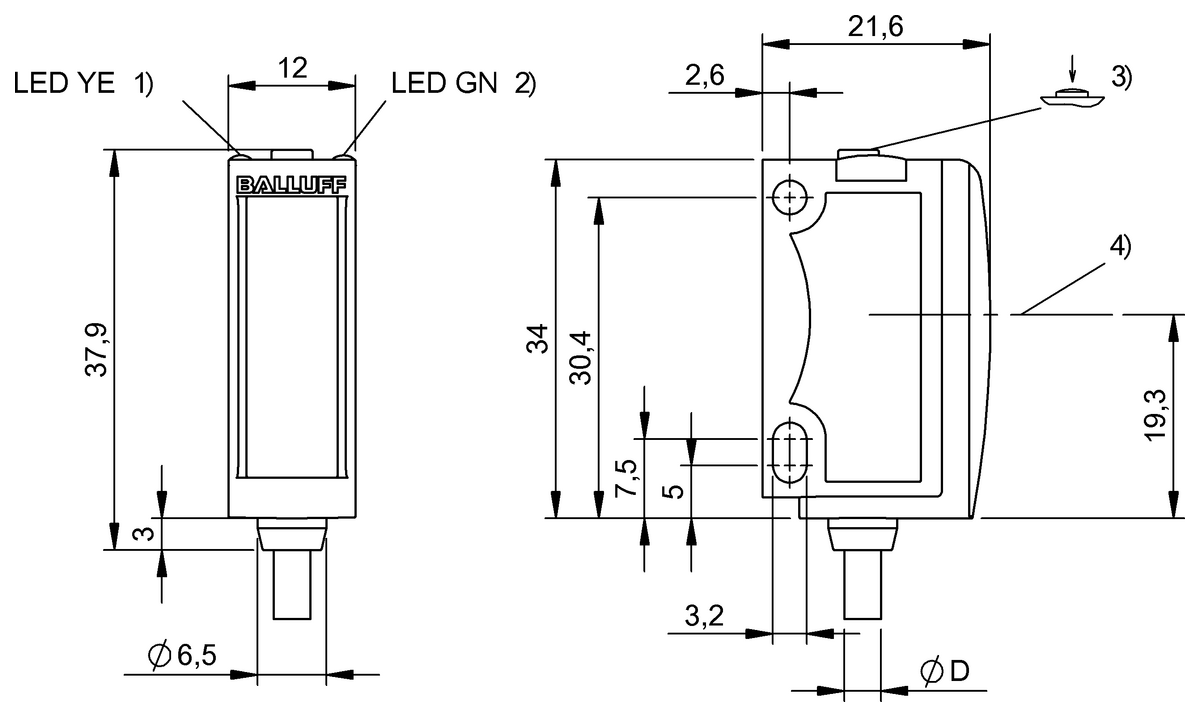

Dimension
12 x 34 x 21.6 mm
Interface
IO-Link-Device 1.1.3
PNP/NPN/IO-Link NO/NC
PNP/NPN/IO-Link NO/NC
Input function
Key disable on/off
Same function as button
Same function as button
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
|
|
|
|
|
BOS02E3BOS 6K-UI-PT10-021,250.63 CNY |
BOS02E2BOS 6K-UI-PT10-S751,250.63 CNY |
|
| Special characteristics | Washdown | - |
|---|---|---|
| Series | 6K | 6K |
| Dimension | 12 x 34 x 21.6 mm | 12 x 34 x 21.6 mm |
| Interface |
IO-Link-Device 1.1.3 PNP/NPN/IO-Link NO/NC |
IO-Link-Device 1.1.3 PNP/NPN/IO-Link NO/NC |
| Input function |
Key disable on/off Same function as button |
Key disable on/off Same function as button |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Retroreflective sensor, Transparent detection | Retroreflective sensor, Transparent detection |
| Special optical feature | Transparency detection | Transparency detection |
| Beam characteristic | Divergent | Divergent |
| Light type | LED, red light | LED, red light |
| Light spot size | 40 x 40 mm at 1 m | 40 x 40 mm at 1 m |
| Range | 0...2 m | 0...2 m |
| Connection | Cable, 2 m, PVC | Connector, M8x1-Male, 4-pin |
| Housing material | ABS | ABS |
| Material sensing surface | PMMA | PMMA |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE UKCA cULus WEEE Ecolab |
CE UKCA cULus WEEE |
