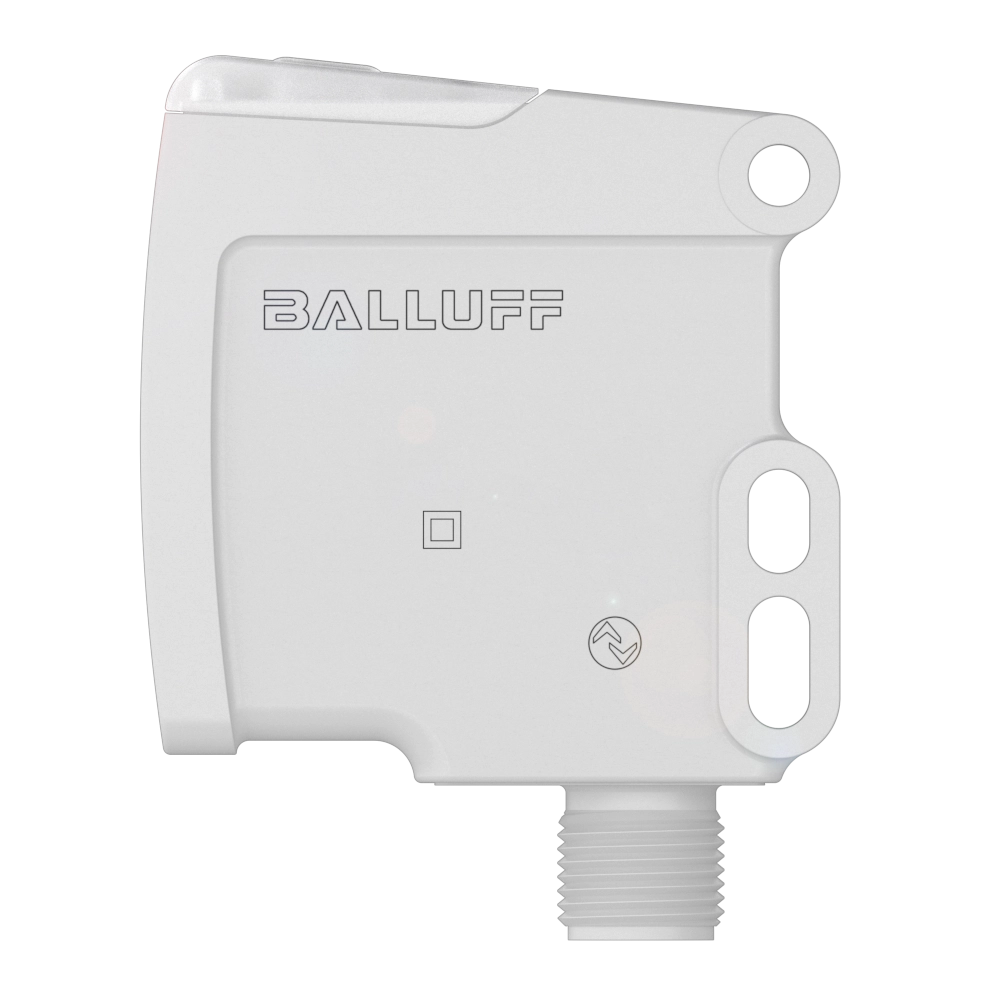

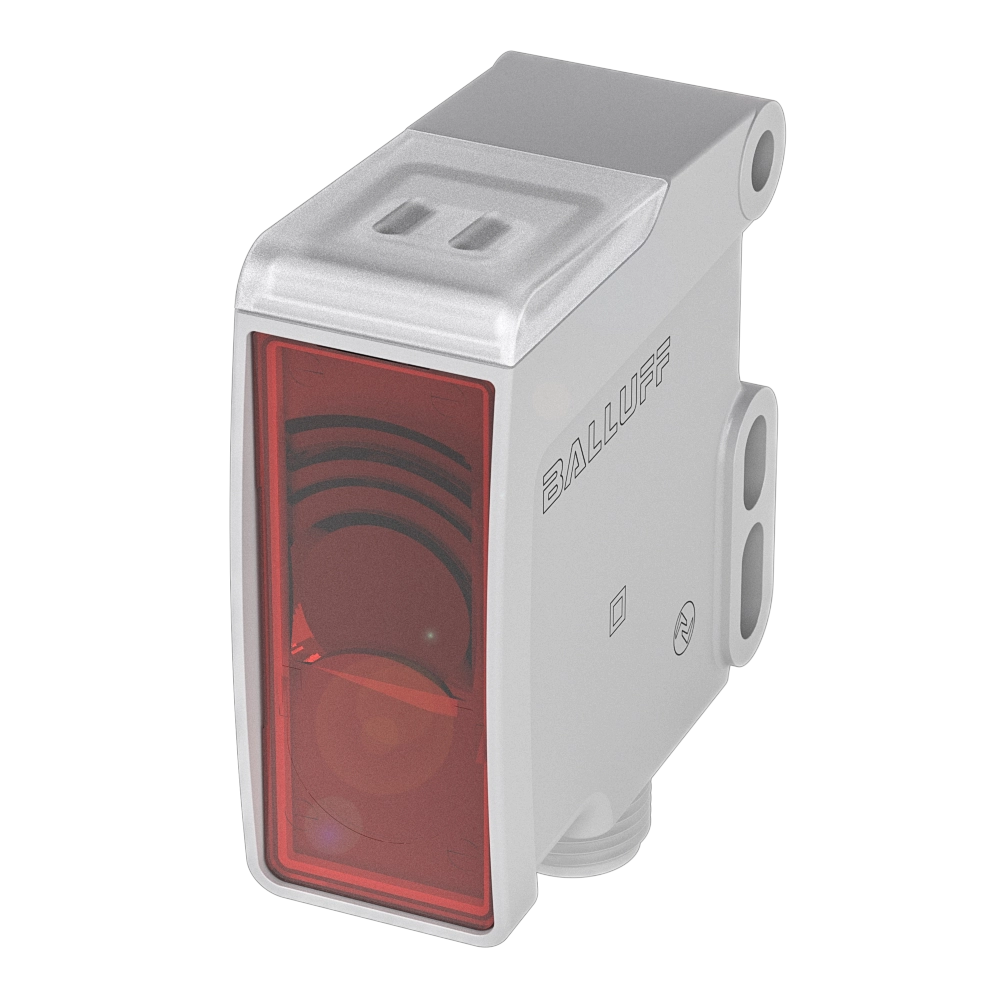

Cubical diffuse sensors with different light types for washdown
Special characteristics
Washdown Plus
Washdown
Washdown
Series
R254K

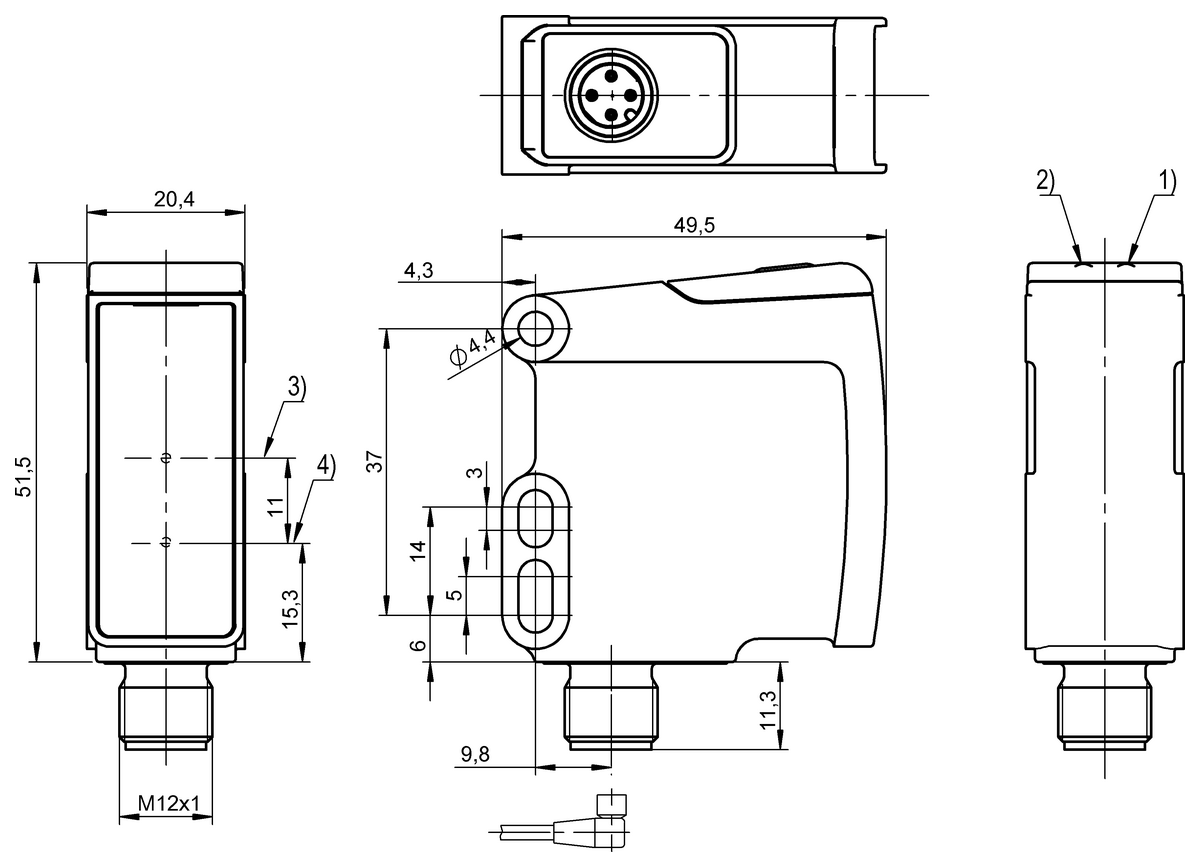

Dimension
20.4 x 62.7 x 49.5 mm
Interface
IO-Link 1.1
Pin 4: Push-pull NO/NC
Pin 2: PNP/NPN/push-pull NO/NC
Pin 4: Push-pull NO/NC
Pin 2: PNP/NPN/push-pull NO/NC
Principle of operation
Photoelectric sensor
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Alternative
|
|
|
|
|
|
|
BOS R254K-UUI-LH11-S4
1,652.93 CNY
List price
|
BOS R254K-UUI-LH12-S4
1,649.18 CNY
List price
|
|
| Special characteristics |
Washdown Plus Washdown |
Washdown Plus Washdown |
|---|---|---|
| Series | R254K | R254K |
| Dimension | 20.4 x 62.7 x 49.5 mm | 20.4 x 62.7 x 49.5 mm |
| Interface |
IO-Link 1.1 Pin 4: Push-pull NO/NC Pin 2: PNP/NPN/push-pull NO/NC |
IO-Link 1.1 Pin 4: Push-pull NO/NC Pin 2: PNP/NPN/push-pull NO/NC |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, triangulation | Diffuse sensor, Measurement of light transit time |
| Special optical feature | Background suppression | Background suppression |
| Beam characteristic | Collimated | Collimated |
| Light type | Laser red light | Laser red light |
| Light spot size | 4.5 x 3.5 mm at 500 mm | 2 x 2 mm at 1000 mm |
| Range | 30...500 mm | 100...1000 mm |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Housing material |
PA 12 PA PACM 12 |
PA 12 PA PACM 12 |
| Material sensing surface | PA PACM 12 | PA PACM 12 |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE UKCA cULus WEEE Ecolab |
CE UKCA cULus WEEE Ecolab |
| Secondary features |
Operating Hours Counter External Signal Blanking Device Discovery Basic Statistics Identification Logic Blocks Pin Assignment Switching Profiles Switching Counter Sensor Operating Mode Signal Speed Monitor Signal Quality Monitoring Signal Delay Voltage and Current Monitoring Storage Usage Monitoring Boot Cycle Counter Extreme Environment Status Variant Configuration |
Operating Hours Counter Device Discovery Basic Statistics Identification Logic Blocks Pin Assignment Switching Profiles Switching Counter Sensor Operating Mode Signal Speed Monitor Signal Delay Voltage and Current Monitoring Storage Usage Monitoring Boot Cycle Counter Extreme Environment Status Variant Configuration |
| Secondary features for condition monitoring |
Internal humidity detection Internal temperature monitoring Inclination monitoring and installation aid Transmitter Lifetime Info Vibration monitoring |
Internal humidity detection Internal temperature monitoring Inclination monitoring and installation aid Transmitter Lifetime Info Vibration monitoring |
| Scope of delivery | Mounting instruction | Mounting instruction |
