Similar Illustration
Classic product
Only CAD model download is supported

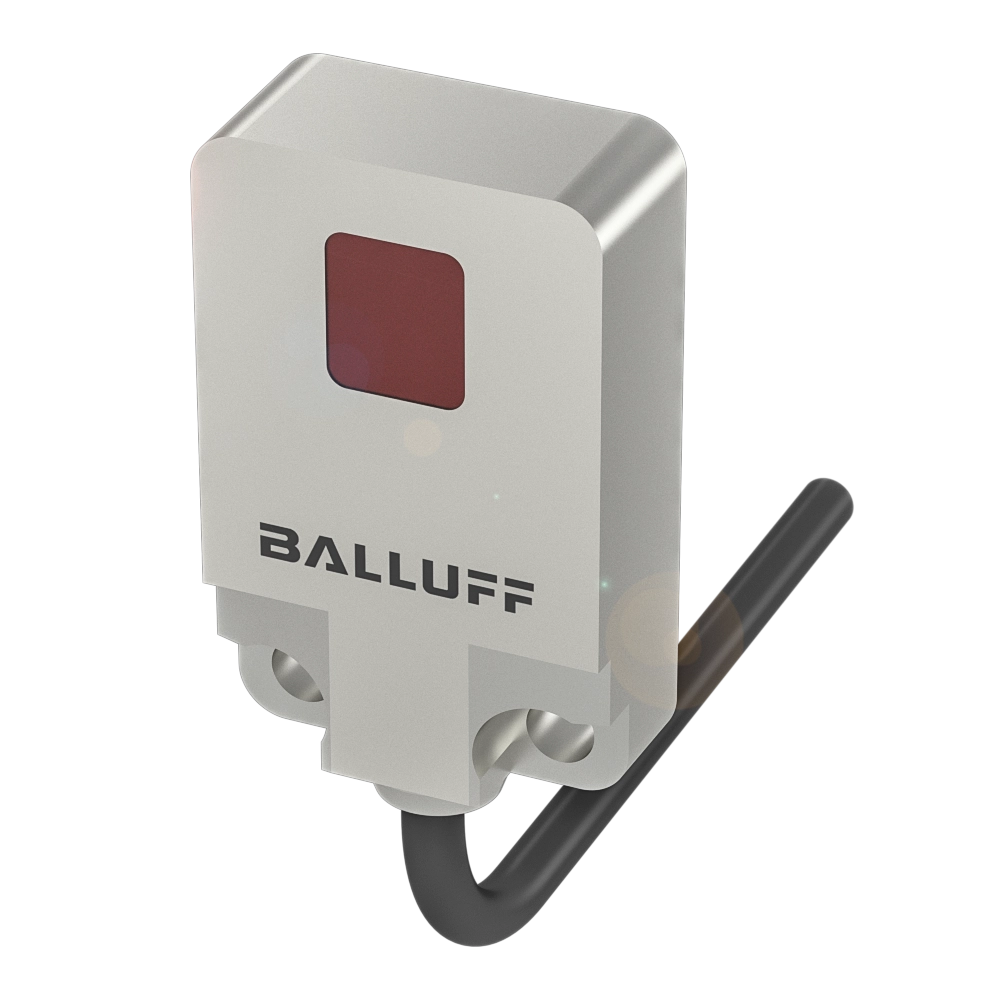

Cubical through-beam sensors with different light types for washdown
Special characteristics
Washdown
Series
R01E
Dimension
20 x 32 x 9 mm
Interface
PNP normally open (NO)
Principle of operation
Photoelectric sensor
This product is part of the Classic portfolio, that means
extended availability
flexible transition period
transparent conditions
Recommended successor products
BOS0211
Through-beam sensors
BOS R020K-PS-RX11-02
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
|
Recommended alternative
|
|
|
|
|
|
| BOS R01E-PS-KE20-02 | BOS R020K-PS-RX11-02 | |
|
845.25 CNY
List price
|
1,095.38 CNY
List price
|
|
| Special characteristics | Washdown | - |
|---|---|---|
| Series | R01E | R020K |
| Dimension | 20 x 32 x 9 mm | 7.7 x 26.8 x 13.5 mm |
| Interface | PNP normally open (NO) | PNP normally open (NO) |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Through-beam sensor | Through-beam sensor |
| Light type | LED, red light | LED, red light |
| Range | 0...2.2 m | 0...2 m |
| Connection | Cable, 2.00 m, PUR | Cable, 2.00 m, PVC |
| Housing material | 1.4404 stainless steel |
PC PBT |
| Material sensing surface | PA | PMMA |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
cULus CE UKCA Ecolab WEEE |
CE cULus WEEE UKCA |
| Beam characteristic | - | Divergent |
| Light spot size | - | Ø 23 mm at 500 mm |
Only CAD model download is supported
