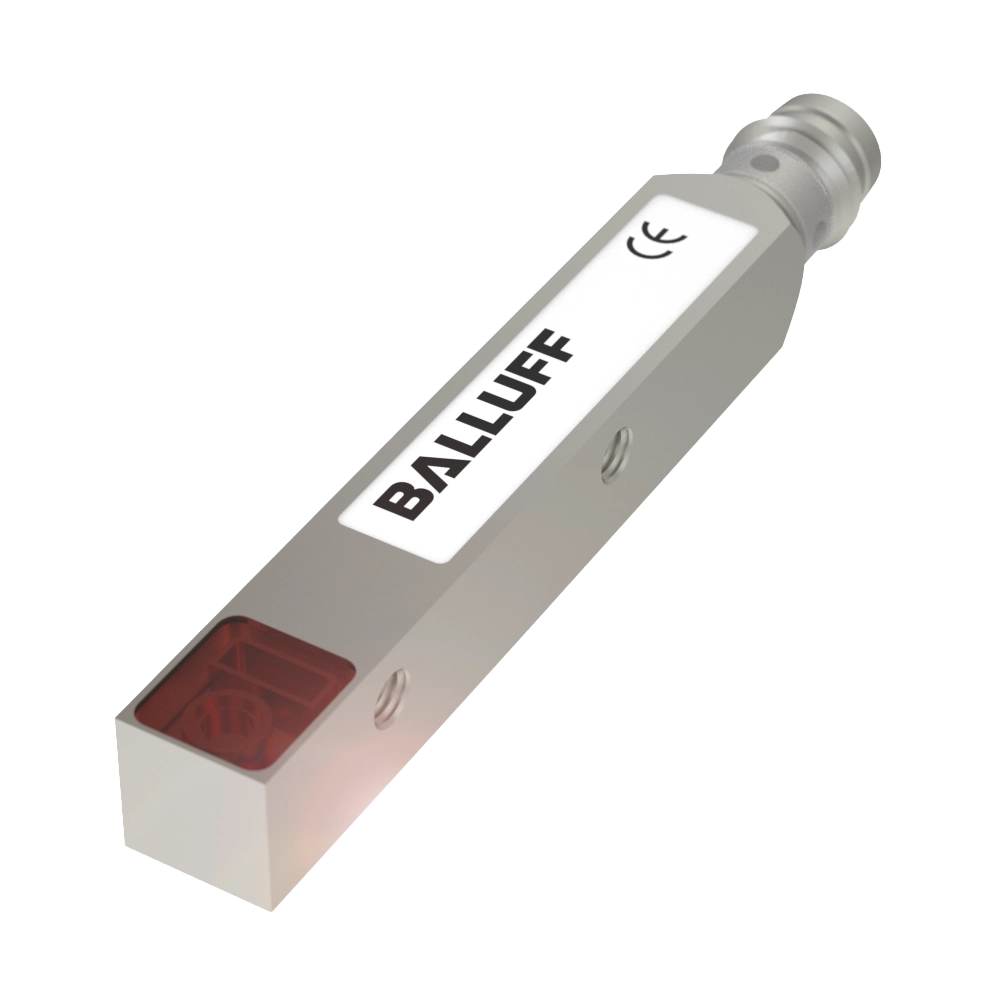

Square through-beam sensors with different types of light
Series
Q08M
Dimension
8 x 59 x 8 mm
Interface
PNP normally closed (NC)
Principle of operation
Photoelectric sensor
Principle of optical operation
Through-beam sensor (receiver)
Do you have any questions about the product?
Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
BOS01Y7BOS Q08M-PO-KE21-S49629.63 CNY |
BOS01Y4BOS Q08M-PS-KE21-S49629.63 CNY |
BOS0269BOS Q08M-PO-LE21-S49646.88 CNY |
|
| Series | Q08M | Q08M | Q08M |
|---|---|---|---|
| Dimension | 8 x 59 x 8 mm | 8 x 59 x 8 mm | 8 x 59 x 8 mm |
| Interface | PNP normally closed (NC) | PNP normally open (NO) | PNP normally closed (NC) |
| Principle of operation | Photoelectric sensor | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Through-beam sensor (receiver) | Through-beam sensor (receiver) | Through-beam sensor (receiver) |
| Light type | Red light | Red light | Laser red light |
| Range | 0...2.2 m | 0...2.2 m | 0...3 m |
| Connection | Connector, M8x1-Male, 3-pin | Connector, M8x1-Male, 3-pin | Connector, M8x1-Male, 3-pin |
| Housing material | Zinc, Die casting, nickel-plated | Zinc, Die casting, nickel-plated | Zinc, Die casting, nickel-plated |
| Material sensing surface | PMMA | PMMA | PMMA |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
