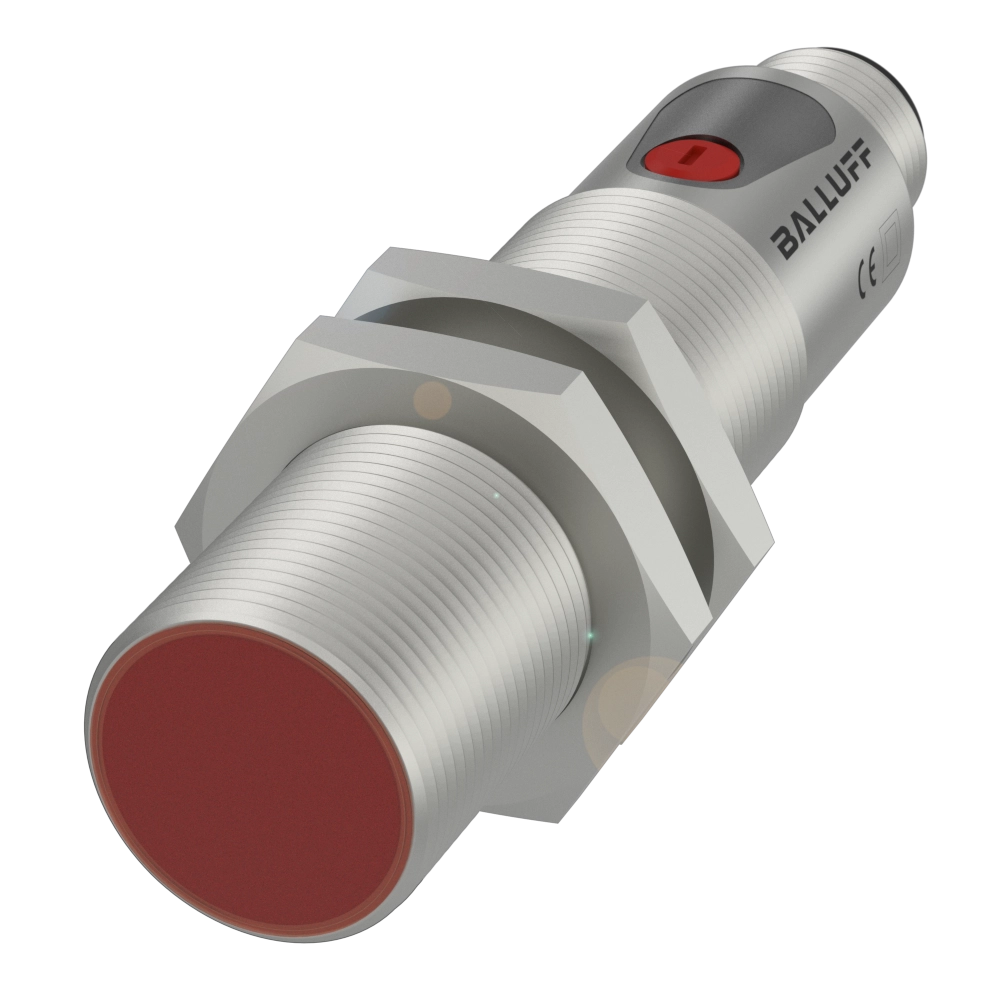

Similar Illustration

BOS01C3

Name: BOS01C3
Brand: Balluff
SKU: BOS01C3
Price: 836.63 CNY
Availability: OutOfStock

BOS 18M-PS-PR20-S4

Cylindrical retro-reflective photoelectric sensors with M18 thread and different types of light

Series

18M

Dimension

Ø 18 x 75 mm

Interface

PNP normally open (NO)

Principle of operation

Photoelectric sensor

Principle of optical operation

Retroreflective sensor

Do you have any questions about the product?

		Alternative	Further alternative

	BOS01C3 BOS 18M-PS-PR20-S4 836.63 CNY	BOS01CE BOS 18M-PA-PR20-S4 862.50 CNY	BOS01FJ BOS 18M-PA-PR20-S4S 862.50 CNY
Series	18M	18M	18M
Dimension	Ø 18 x 75 mm	Ø 18 x 75 mm	Ø 18 x 75 mm
Interface	PNP normally open (NO)	PNP normally open (NO) PNP normally closed (NC)	PNP normally open (NO) PNP normally closed (NC)
Principle of operation	Photoelectric sensor	Photoelectric sensor	Photoelectric sensor
Principle of optical operation	Retroreflective sensor	Retroreflective sensor	Retroreflective sensor
Beam characteristic	Divergent	Divergent	Divergent
Light type	LED, red light	LED, red light	LED, red light
Light spot size	Ø 300 mm at 7 m	Ø 300 mm at 7 m	Ø 300 mm at 7 m
Range	0...7 m	0...7 m	0...7 m
Connection	Connector, M12x1-Male, 4-pin	Connector, M12x1-Male, 4-pin	Connector, M12x1-Male, 4-pin
Housing material	Brass, nickel-plated	Brass, nickel-plated	Brass, nickel-plated
Material sensing surface	Glass, anti-glare	Glass, anti-glare	Glass, anti-glare
Operating voltage Ub	10...30 VDC	10...30 VDC	10...30 VDC
Approval/Conformity	CE UKCA cULus WEEE	CE UKCA cULus WEEE	cULus CE UKCA WEEE
Scope of delivery	2x nut M18x1 User manual	2x nut M18x1 User manual	2x nut M18x1 User manual
