BOS00KY

Name: BOS00KY
Brand: Balluff
SKU: BOS00KY
Price: 1123.95 CNY
Availability: OutOfStock

BOS 18KW-NA-1HA-S4-C

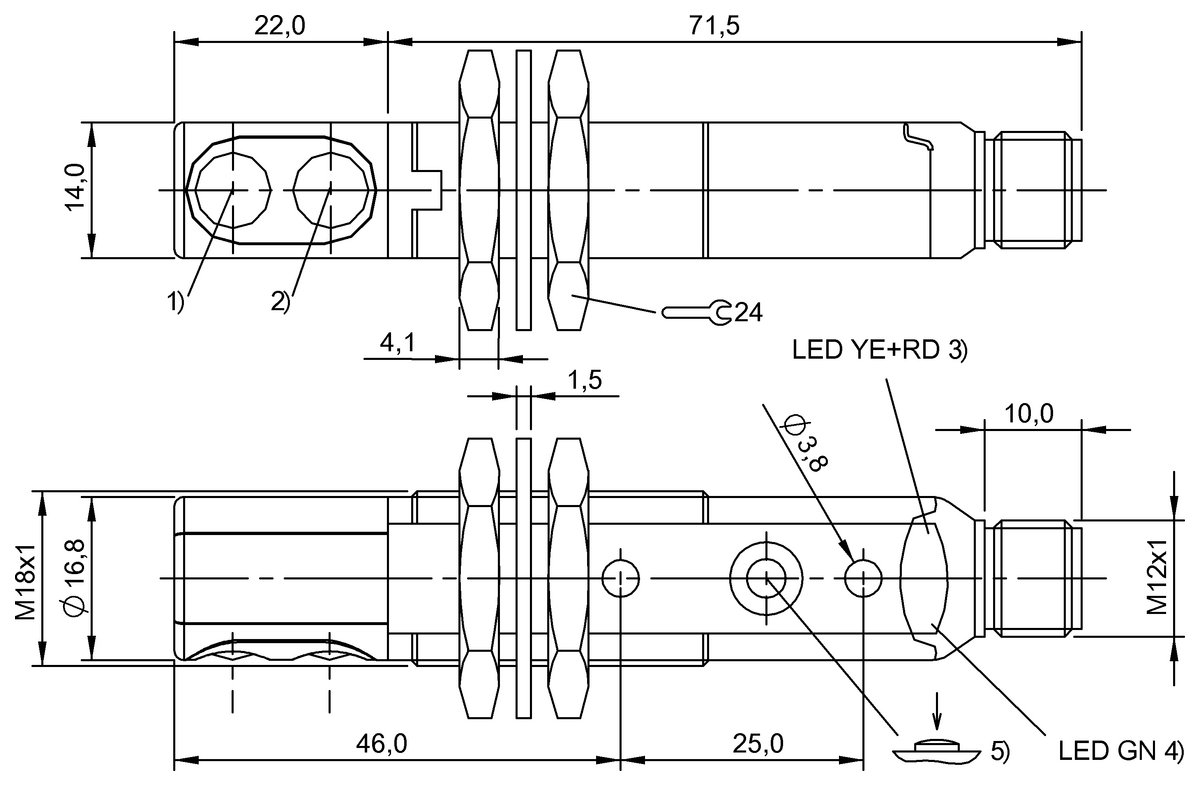

Cylindrical diffuse sensors with M18 thread and different types of light

Series

18KW

Dimension

Ø 18 x 93.5 mm

Interface

NPN normally open (NO)
NPN normally closed (NC)

Principle of operation

Photoelectric sensor

Principle of optical operation

Diffuse sensor, triangulation

Recommended successor products

Estimated availability

How does the alternative product differ from the discontinued one?

Do you have any questions about the product? Get in touch with us.

This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

	Discontinued	Recommended alternative

	BOS00KY	BOS00LH
	BOS 18KW-NA-1HA-S4-C	BOS 18KW-PA-1HA-S4-C
	1,123.95 CNY	1,123.95 CNY

Series	18KW	18KW
Dimension	Ø 18 x 93.5 mm	Ø 18 x 93.5 mm
Interface	NPN normally open (NO) NPN normally closed (NC)	PNP normally open (NO) PNP normally closed (NC)
Principle of operation	Photoelectric sensor	Photoelectric sensor
Principle of optical operation	Diffuse sensor, triangulation	Diffuse sensor, triangulation
Special optical feature	Background suppression	Background suppression
Light type	LED, red light	LED, red light
Light spot size	Ø 10 mm at 100 mm	Ø 10 mm at 100 mm
Range	50...100 mm	50...100 mm
Connection	Connector, M12x1-Male, 4-pin	Connector, M12x1-Male, 4-pin
Housing material	PBT	PBT
Material sensing surface	PMMA	PMMA
Operating voltage Ub	10...30 VDC	10...30 VDC
Approval/Conformity	CE UKCA cULus WEEE	CE UKCA cULus WEEE
Trademark	Global	Global
