Diffuse sensors
Series
18M

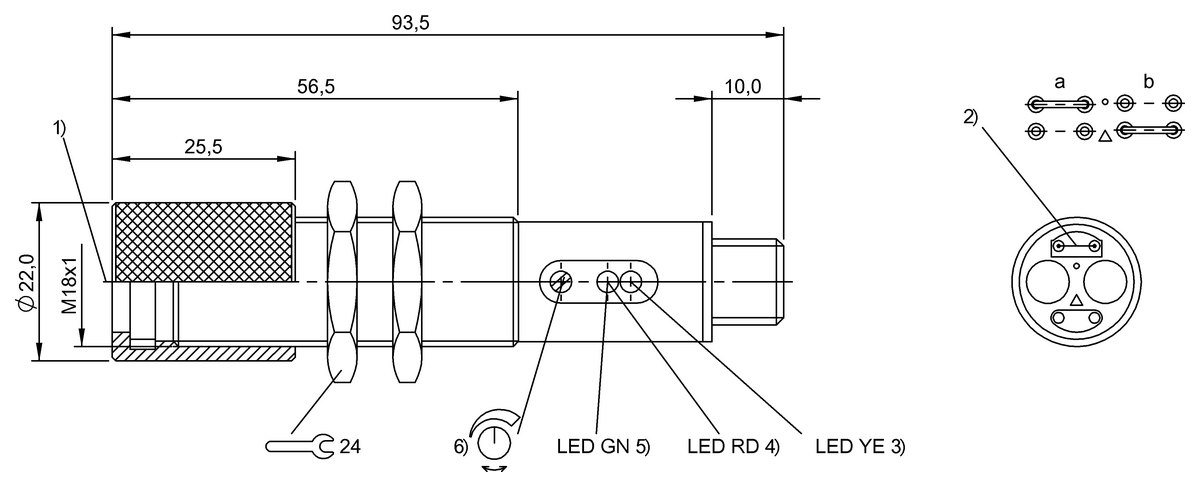

Dimension
Ø 22 x 93.5 mm
Interface
PNP normally open/normally closed (NO/NC)
Principle of operation
Photoelectric sensor
Principle of optical operation
Diffuse sensor, energetic
Recommended successor products
BOS01J8
Diffuse sensors
BOS 18M-PUV-RD30-S4
Estimated vailability
BFB0009
Fiber-based devices for plastic and glass fibers
BFB M18M-001-P-S4
Estimated vailability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
Discontinued
|
Recommended alternative
|
Recommended alternative
|
|
|
|
|
|
|
|

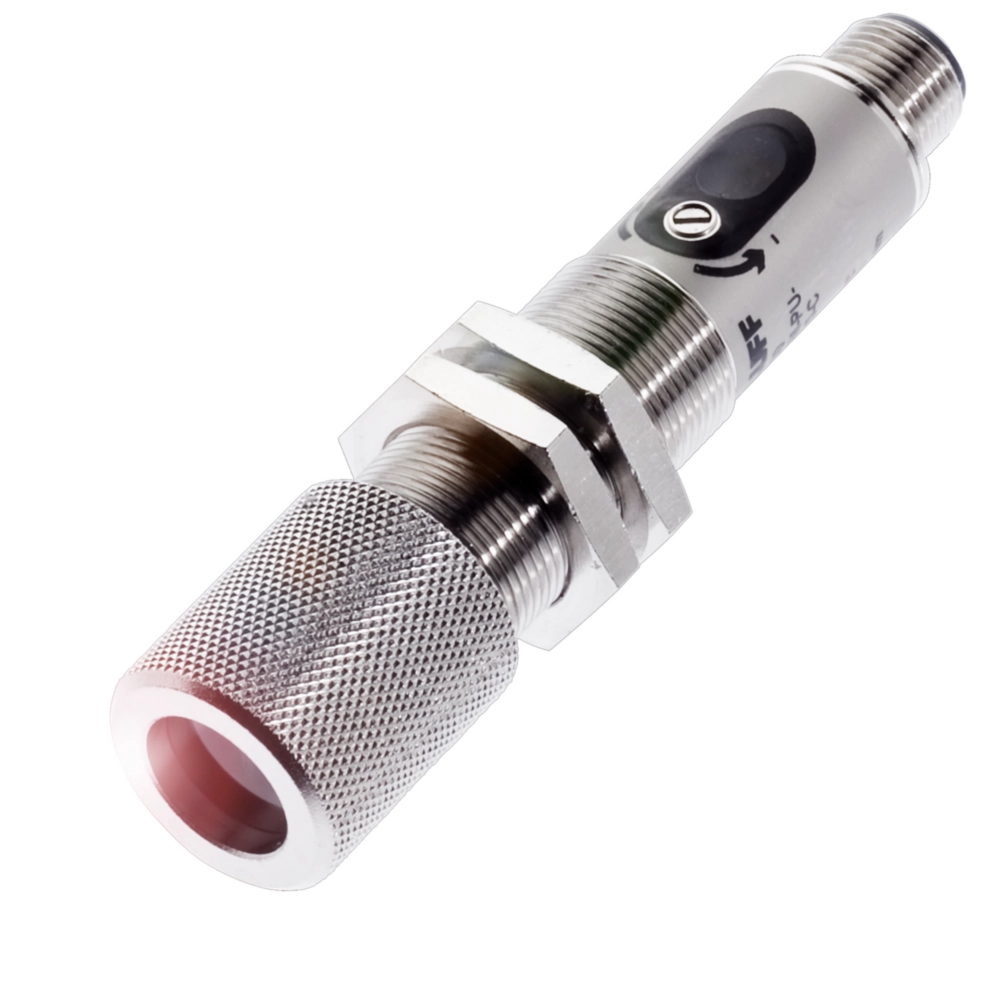

BOS 18M-PU-1PD-SA5-C
-
List price
|
BOS 18M-PUV-RD30-S4
914.25 CNY
List price
|
BFB M18M-001-P-S4
905.63 CNY
List price
|
|
| Series | 18M | 18M | 18M |
|---|---|---|---|
| Dimension | Ø 22 x 93.5 mm | Ø 18 x 75 mm | Ø 18 x 75 mm |
| Interface | PNP normally open/normally closed (NO/NC) | PNP normally open/normally closed (NO/NC) | 2x PNP normally open/normally closed (NO/NC) |
| Principle of operation | Photoelectric sensor | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, energetic | Diffuse sensor, energetic | - |
| Beam characteristic | Divergent | Divergent | - |
| Light type | Infrared | LED, red light | LED, red light |
| Range | 60...400 mm | 0...500 mm | - |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin | Connector-Male, 4-pin |
| Housing material | Brass, nickel-plated | Brass, nickel-plated | Brass, nickel-plated |
| Material sensing surface | Glass | Glass | - |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE cULus WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
