BOD002Z

BOD 6K-LAI02-S75

Narrow distance sensors with plastic housing and LED red light for washdown

Series
6K

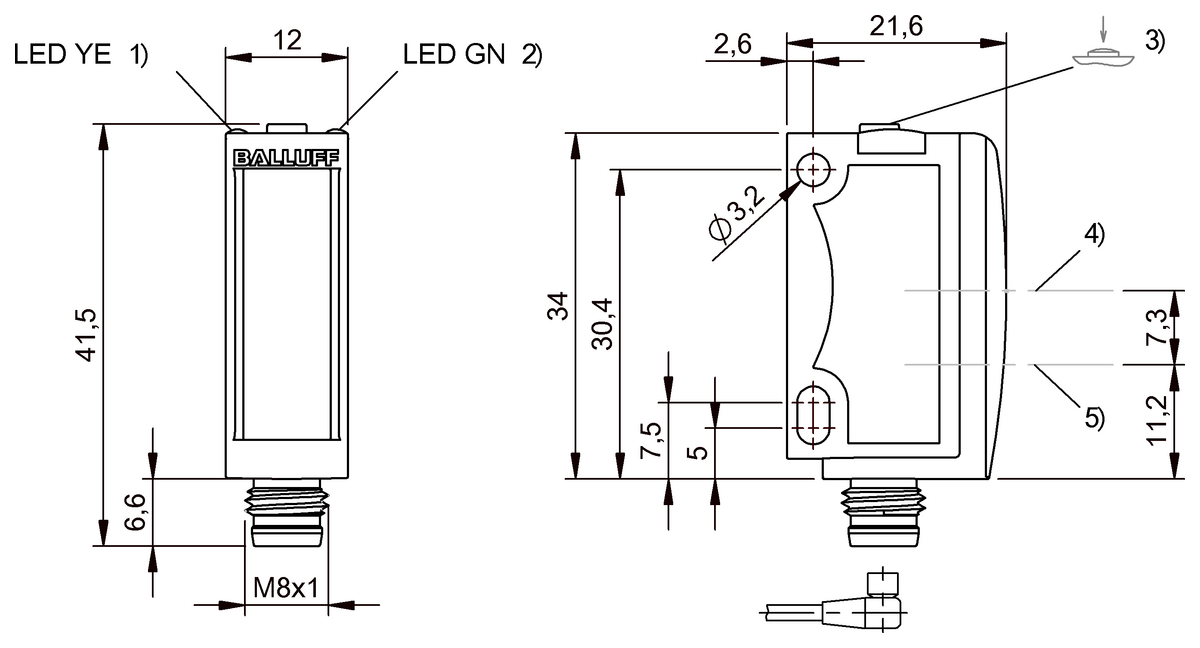

Dimension
12 x 34 x 21.6 mm
Interface
IO-Link-Device: 1.1.4
Analog, voltage: 1…10 V/3 mA
PNP/NPN/Auto-Detect: NO/NC
Principle of operation
Photoelectric distance sensor
Principle of optical operation
Light time-of-flight
Do you have any questions about the product? Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

Quantity scale

Contact request
Key features
Series
6K
Dimension
12 x 34 x 21.6 mm
Interface
IO-Link-Device: 1.1.4
Analog, voltage: 1…10 V/3 mA
PNP/NPN/Auto-Detect: NO/NC
Principle of operation
Photoelectric distance sensor
Principle of optical operation
Light time-of-flight
Beam characteristic
Divergent
Light type
Laser red light
Light spot size
3 x 3 mm at 1500 mm
Range
100...1500 mm
Connection
Connector, M8x1-Male, 4-pin
Housing material
ABS
Material sensing surface
PMMA
Operating voltage Ub
18...30 VDC
Approval/Conformity
CE
UKCA
cULus
WEEE
Classifications
ECLASS 10.1
27-27-08-01
ECLASS 11.0
27-27-08-01
ECLASS 12.0
27-27-09-16
ECLASS 13.0
27-27-09-16
ECLASS 14.0
27-27-09-16
ECLASS 5.1.4
27-27-08-01
ECLASS 6.2
27-27-08-01
ECLASS 8.1
27-27-08-01
ECLASS 9.0
27-27-08-01
ECLASS 9.1
27-27-08-01
ETIM 4.0
EC001825
ETIM 5.0
EC001825
ETIM 6.0
EC001825
ETIM 7.0
EC001825
ETIM 8.0
EC001825
ETIM 9.0
EC001825
UNSPSC 11
39121528
UNSPSC 7.0901
39121528
