BOD002N

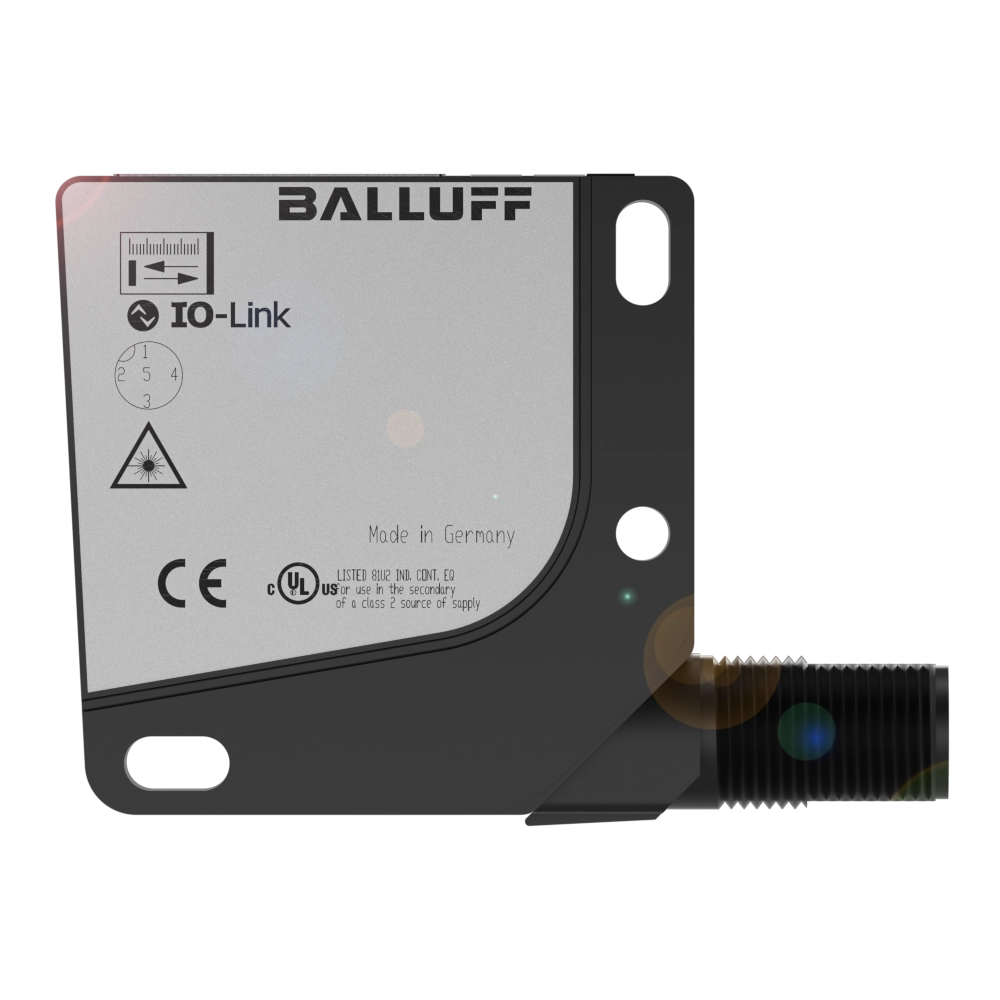

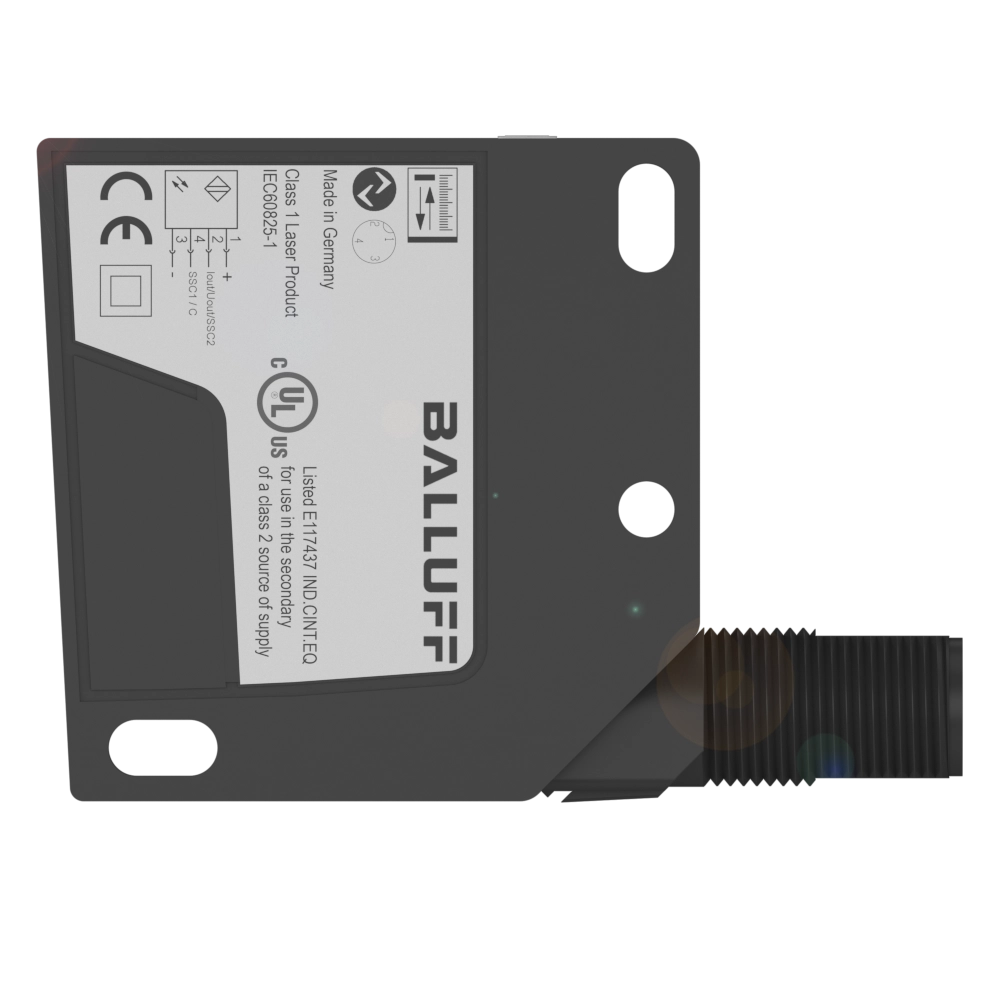

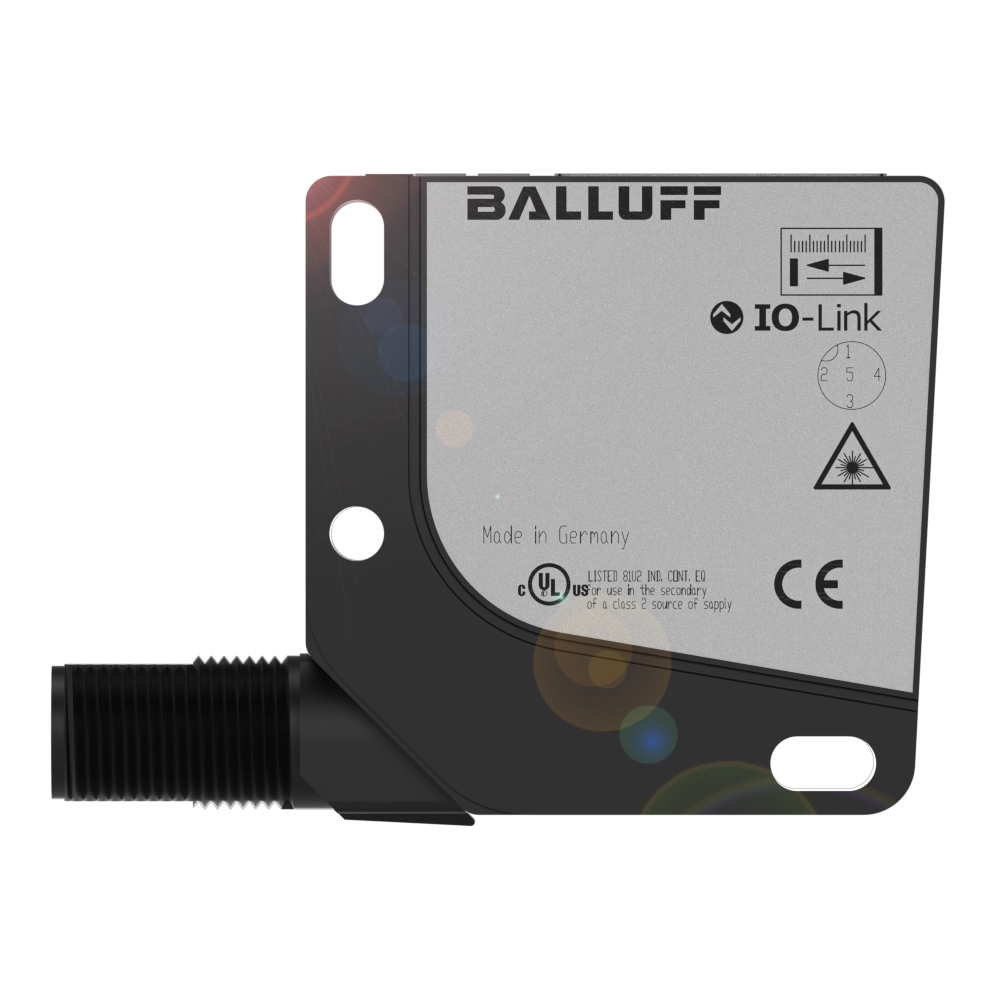

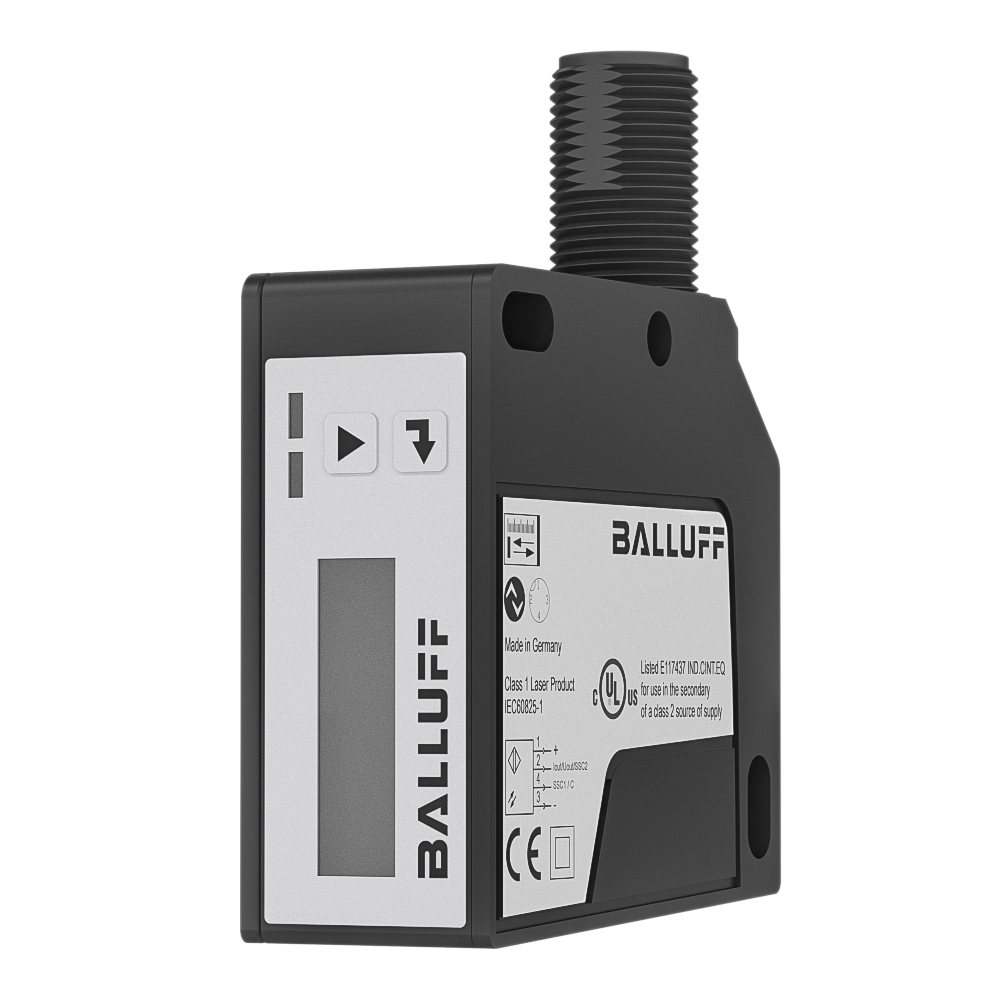

BOD 24K-LPI08-S4

Distance sensors with plastic housing and red light laser and glass as material for the sensing surface

Series
24K
Dimension
50 x 21 x 50 mm
Interface
IO-Link: 1.1
Analog, voltage/Analog, current selectable: 4…20 mA
0…10 V
2x PNP/NPN: NO/NC
Principle of operation
Photoelectric sensor
Principle of optical operation
Triangulation
Do you have any questions about the product? Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd

Quantity scale

Contact request
Key features
Series
24K
Dimension
50 x 21 x 50 mm
Interface
IO-Link: 1.1
Analog, voltage/Analog, current selectable: 4…20 mA
0…10 V
2x PNP/NPN: NO/NC
Principle of operation
Photoelectric sensor
Principle of optical operation
Triangulation
Beam characteristic
Divergent
Light type
Laser red light
Light spot size
1.2 x 1.2 mm at 650 mm
Range
50...650 mm
Accuracy
±1 %
Repeat accuracy
± 50 µm
Resolution
≤ 100 µm
Connection
Connector, M12x1-Male, 4-pin
Housing material
Plastic
Operating voltage Ub
18...30 VDC
Approval/Conformity
CE
cULus
WEEE
Classifications
ECLASS 10.1
27-27-08-01
ECLASS 11.0
27-27-08-01
ECLASS 12.0
27-27-09-16
ECLASS 13.0
27-27-09-16
ECLASS 14.0
27-27-09-16
ECLASS 5.1.4
27-27-08-01
ECLASS 6.2
27-27-08-01
ECLASS 8.1
27-27-08-01
ECLASS 9.0
27-27-08-01
ECLASS 9.1
27-27-08-01
ETIM 4.0
EC001825
ETIM 5.0
EC001825
ETIM 6.0
EC001825
ETIM 7.0
EC001825
ETIM 8.0
EC001825
ETIM 9.0
EC001825
UNSPSC 11
39121528
UNSPSC 7.0901
39121528
