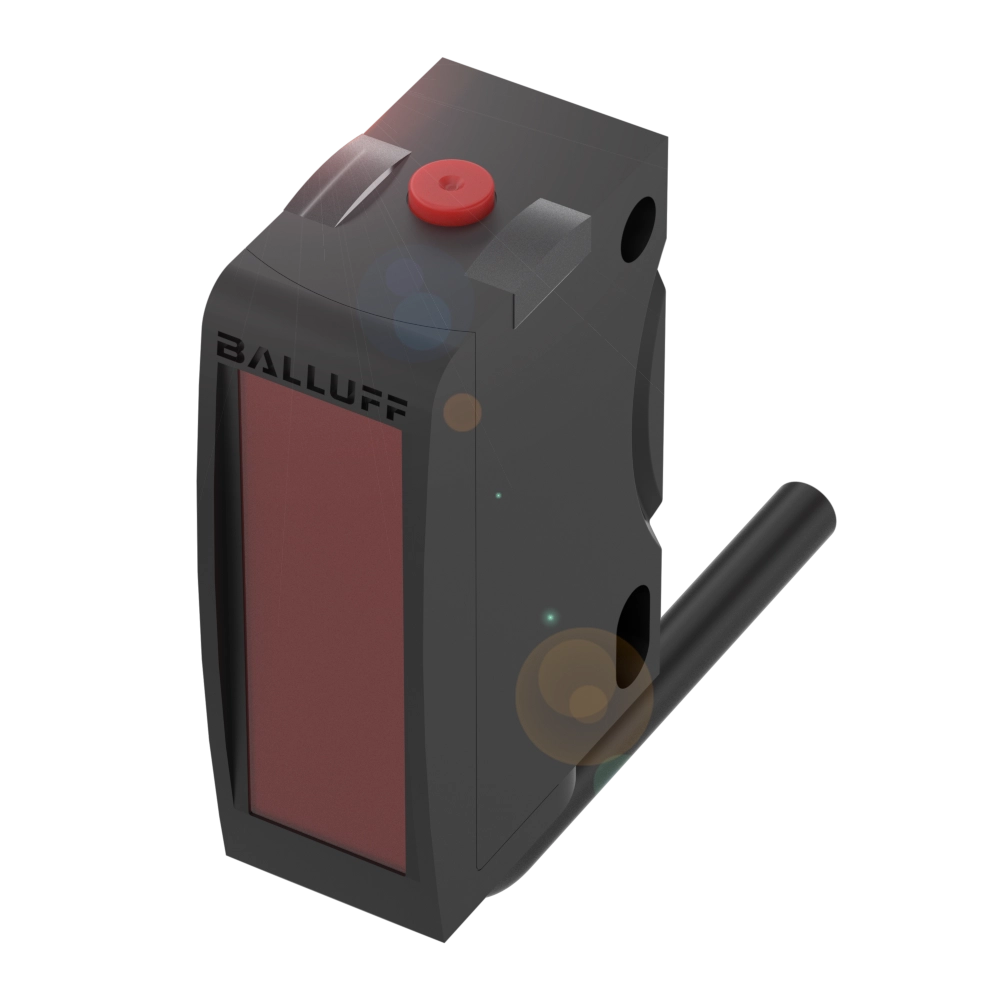

Photoelectric distance sensors
Special characteristics
Washdown
Series
6K

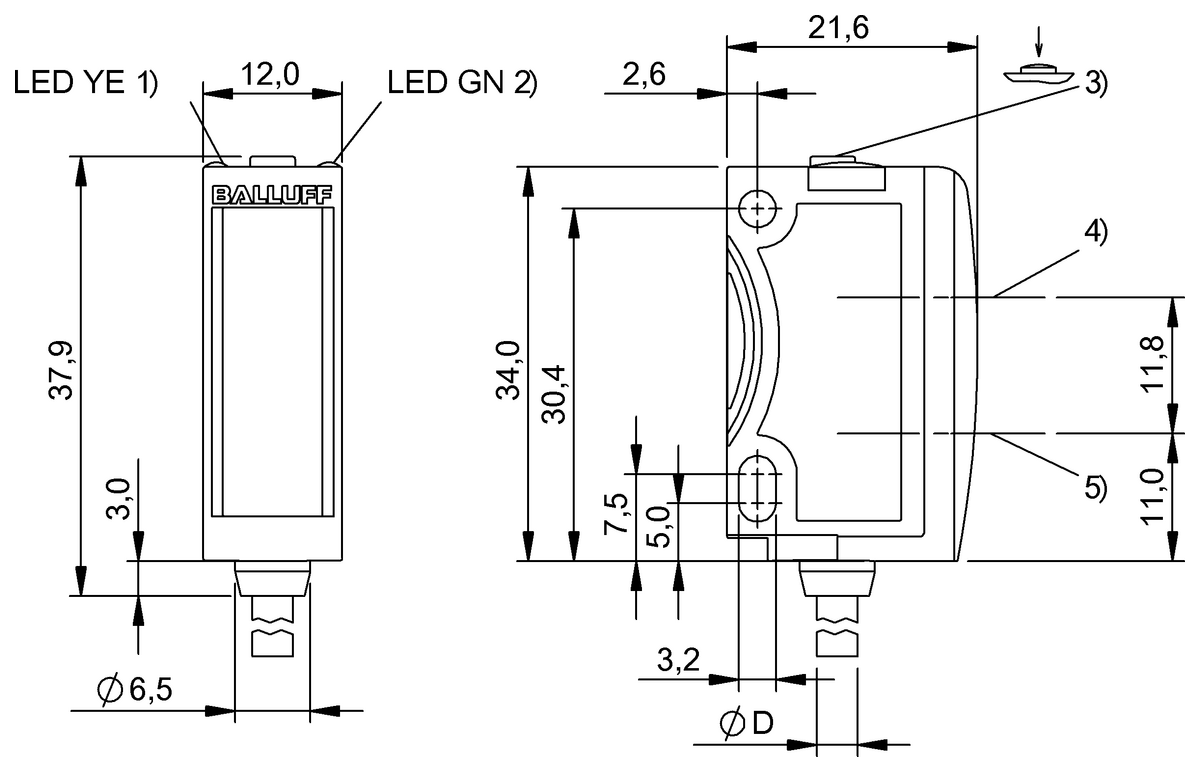

Dimension
12 x 37.9 x 21.6 mm
Interface
Analog, voltage 1…10 V linear rising/falling PNP NO/NC
Principle of operation
Photoelectric distance sensor
Recommended successor products
BOD002W
Photoelectric distance sensors
BOD 6K-RAI03-02
Estimated vailability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
BOD001TBOD 6K-RA03-023,277.50 CNY |
BOD002WBOD 6K-RAI03-022,949.75 CNY |
|
| Special characteristics | Washdown | Washdown |
|---|---|---|
| Series | 6K | 6K |
| Dimension | 12 x 37.9 x 21.6 mm | 12 x 34 x 21.6 mm |
| Interface | Analog, voltage 1…10 V linear rising/falling PNP NO/NC |
IO-Link-Device 1.1.3 Analog, voltage 1…10 V/3 mA PNP/NPN/Auto-Detect NO/NC |
| Principle of operation | Photoelectric distance sensor | Photoelectric distance sensor |
| Principle of optical operation | Triangulation | Triangulation |
| Beam characteristic | Divergent | Divergent |
| Light type | LED, red light | LED, red light |
| Light spot size | Ø 9.5 mm at 100 mm | 16 x 16 mm at 200 mm |
| Range | 30...200 mm | 30...200 mm |
| Accuracy | ±1 % FS | - |
| Repeat accuracy | 0.5 %FS | 1 mm |
| Resolution | ≤ 0.68 mm | ≤ 0.68 mm |
| Connection | Cable, 2.00 m, PVC | Cable, 2 m, PVC |
| Housing material | ABS | ABS |
| Operating voltage Ub | 13...30 VDC | 13...30 VDC |
| Approval/Conformity |
CE cULus Ecolab WEEE |
CE UKCA cULus WEEE Ecolab |
