Photoelectric distance sensors
Special characteristics
Washdown
Series
6K

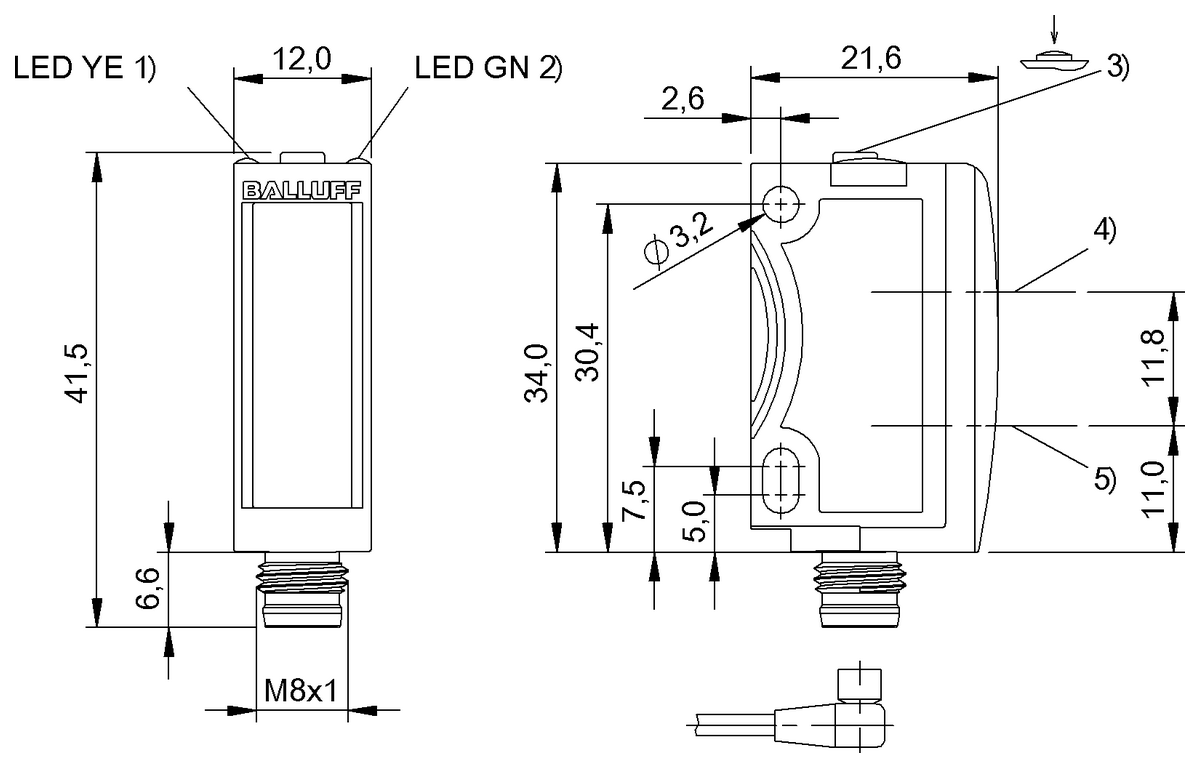

Dimension
12 x 41.5 x 21.6 mm
Interface
Analog, voltage 1…10 V linear rising/falling PNP NO/NC
Principle of operation
Photoelectric distance sensor
Recommended successor products
BOD002U
Photoelectric distance sensors
BOD 6K-RAI03-S75
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for China – Balluff Automation (Shanghai) Co., Ltd
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
| BOD 6K-RA03-S75 | BOD 6K-RAI03-S75 | |
|
3,225.75 CNY
List price
|
2,949.75 CNY
List price
|
|
| Special characteristics | Washdown | - |
|---|---|---|
| Series | 6K | 6K |
| Dimension | 12 x 41.5 x 21.6 mm | 12 x 34 x 21.6 mm |
| Interface | Analog, voltage 1…10 V linear rising/falling PNP NO/NC |
IO-Link-Device: 1.1.3 Analog, voltage: 1…10 V/3 mA PNP/NPN/Auto-Detect: NO/NC |
| Principle of operation | Photoelectric distance sensor | Photoelectric distance sensor |
| Principle of optical operation | Triangulation | Triangulation |
| Beam characteristic | Divergent | Divergent |
| Light type | LED, red light | LED, red light |
| Light spot size | Ø 9.5 mm at 100 mm | 16 x 16 mm at 200 mm |
| Range | 30...200 mm | 30...200 mm |
| Accuracy | ±1 % FS | - |
| Repeat accuracy | 0.5 %FS | 1 mm |
| Resolution | ≤ 0.68 mm | ≤ 0.68 mm |
| Connection | Connector, M8x1-Male, 4-pin | Connector, M8x1-Male, 4-pin |
| Housing material | ABS | ABS |
| Operating voltage Ub | 13...30 VDC | 13...30 VDC |
| Approval/Conformity |
CE cULus Ecolab WEEE |
CE UKCA cULus WEEE |
